PROBeam3 Wall brings SmartBeam® capabilities to a 3” form factor with an integral driver providing best-in-class efficiency and beam control options. The PROBeam3 Wall is designed to be specification grade with a wide range of beam options, high CRI, and circadian options. The 3″ aperture delivers comfortable illumination in a wide range of beam distributions while achieving high efficacy, and energy-saving performance. PROBeam3 Wall offers a range of accessories, mounting options, and finishes that provide an easy route to customization and performance enhancements.
Installation Instructions
Revit Files
Tech Drawings

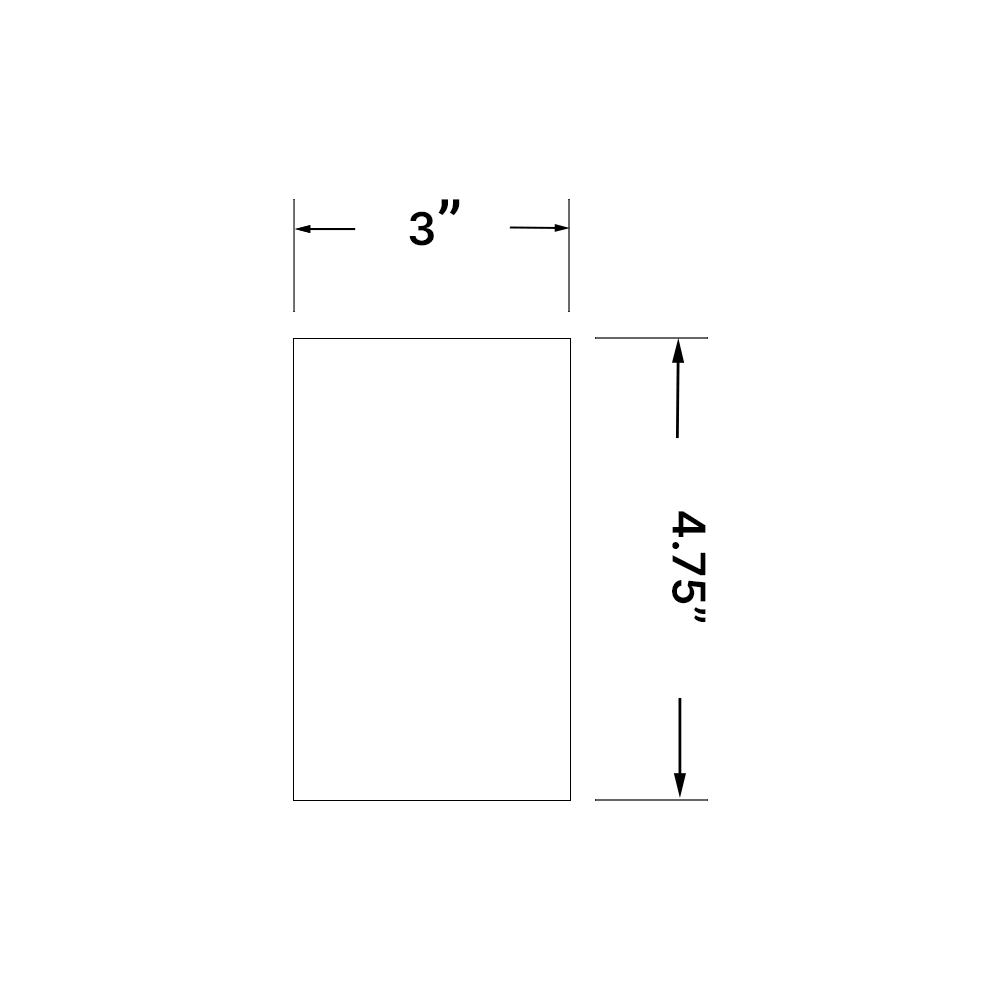

Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
End Cap Styles
Housing Material
Warranty
Sustainability
3″ x 4.75″
Pendant
Drywall and T-Bar
Sheet Metal
2ft, 4ft, 6ft, 8ft
Powder Coated & Anodized
Flat
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices

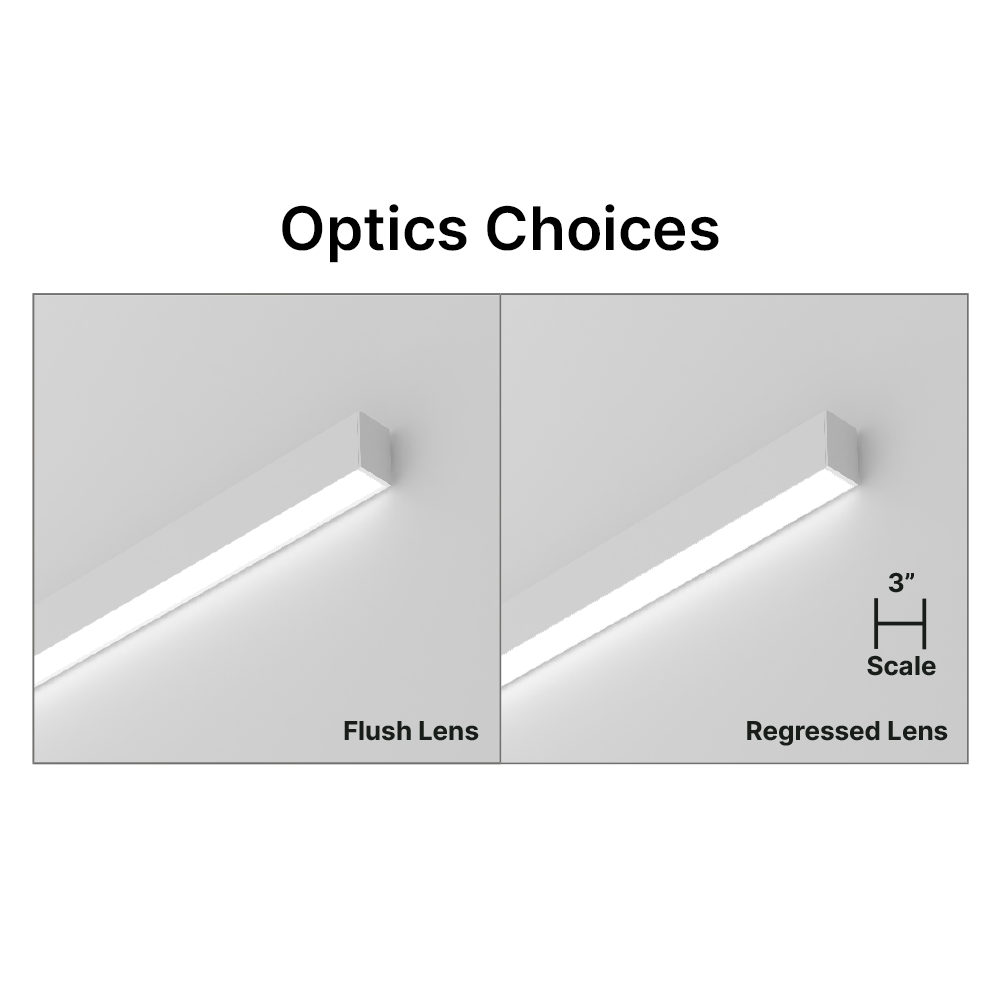

Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Circuit
Up to 1,500 Lm/Ft, 150 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm

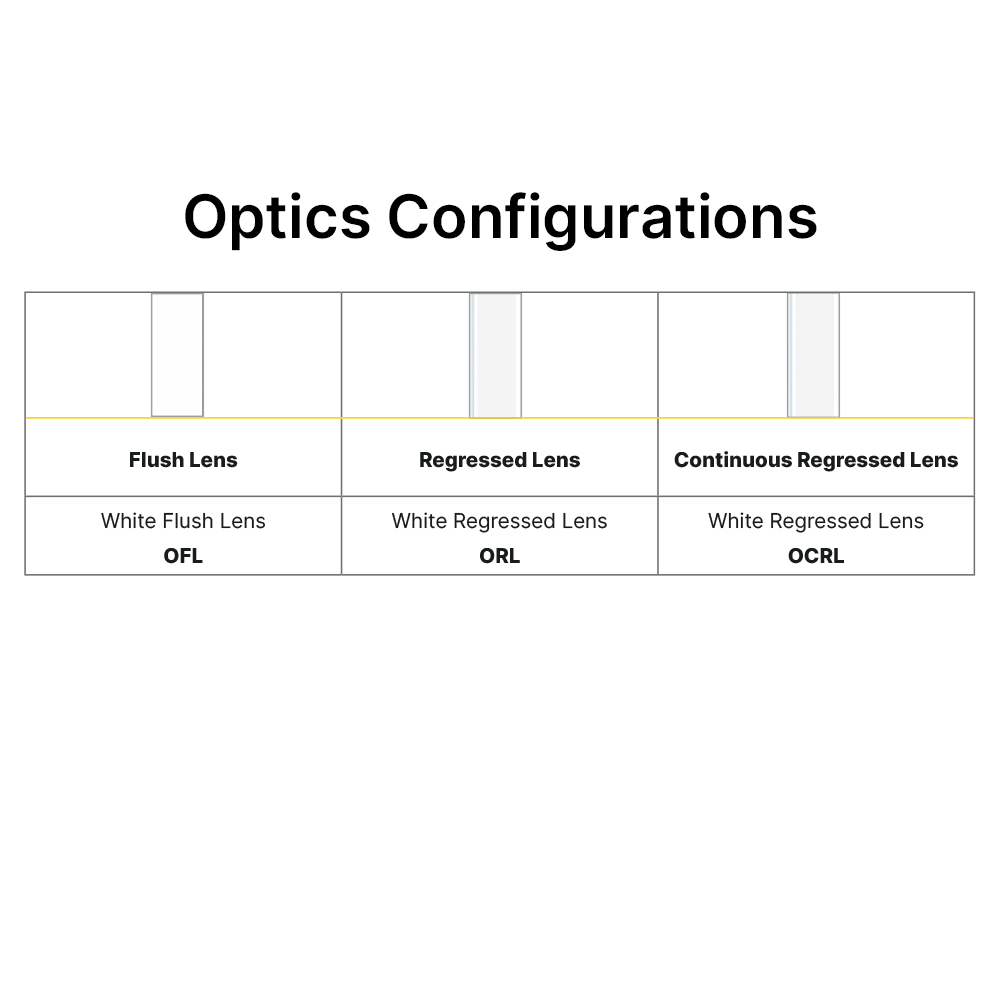

Flush, Regressed & Continuous Regressed
80/90/95+
2700K to 6500K
Direct, Indirect, & Direct/Indirect
120-277 VAC and 347 VAC, 50/60 Hz
Integral
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
1-Circuit & Bi-Directional 2-Circuit
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
| Width | |
|---|---|
| Beam Distribution | Asymmetric, Batwing, Ceiling Wash, Cosine, Double Asymmetric, Graze, Medium, Regressed Medium, Wide |
| Color Rendering Index | |
| Light Direction | |
| Finish | Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL # |
| Mounting Method | |
| Color Temperature | |
| Length | 2', 4', 6', 8', Configurable in continuous runs in 6" increments |
| Driver |
