NANO Series

Small size (Sub 1" aperture). Big performance.

WELL Building Standard
UGR

NANO is the culmination of years of advancements in LED technology. Less than 1″ wide, and available in square and beam forms. NANO brings SmartBeam® control to a graphic scale made practical by the combination of efficient LED and nano-optical system design.

NANO Series products pack a big punch in a small package. Less than 1″ wide with everything SmartBeam® has to offer. Best-in-class color quality (>90 CRI), efficiency (>135 LPW) and wide choice of lighting distributions and optics. Remote driver to remove visual bulk, and a wide range of mounting options.

All NANO products are Declare listed and Red List Free and RoHS compliant.

See NANO Declare listing

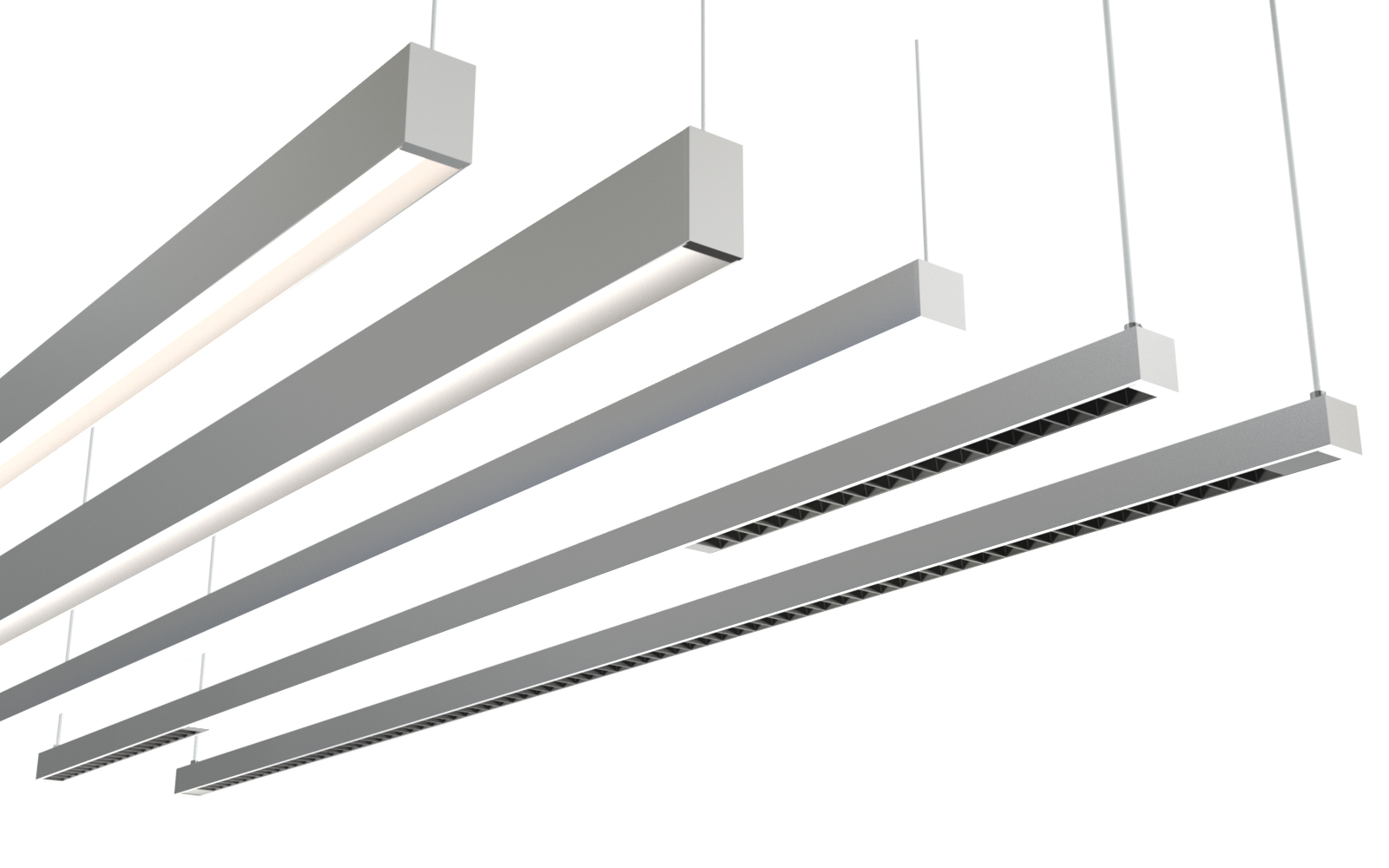

NANOSquare [NSQ95]

Sub 1" square form factor with bi-directional lighting. Remote driver delivering up to 1000 lumens per foot

NANOSquare NCO [NSQ95NCO]

Sub 1" square form factor, low noise lighting with UGR less than 16 and bi-directional controlled lighting distributions

NANOBeam [NBE95]

Sub 1" aperture fixture with choice of integral on-board or remote driver.

NANOBeam NCO [NBE95NCO]

Sub 1" wide and 1.75" tall fixture with nano-cavity optics (NCO) optimum glare and "quiet light".

NANOSlot [NSL95] & NANOSlot NCO [NSL95NCO]

Sub 1" small form factor high performance recessed lighting for drywall and ceiling grids.

NANOFlat [NFL95], NANOCove [NCV95] & NANORail [NRA95]

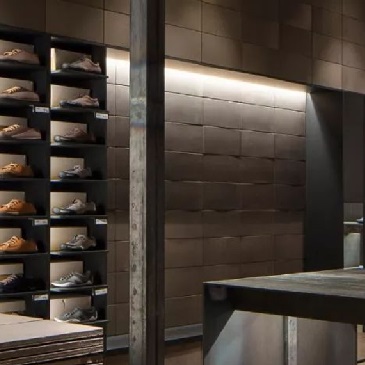

Sub 1" small form factor and low profile high performance cove lighting.

Small is beautiful!

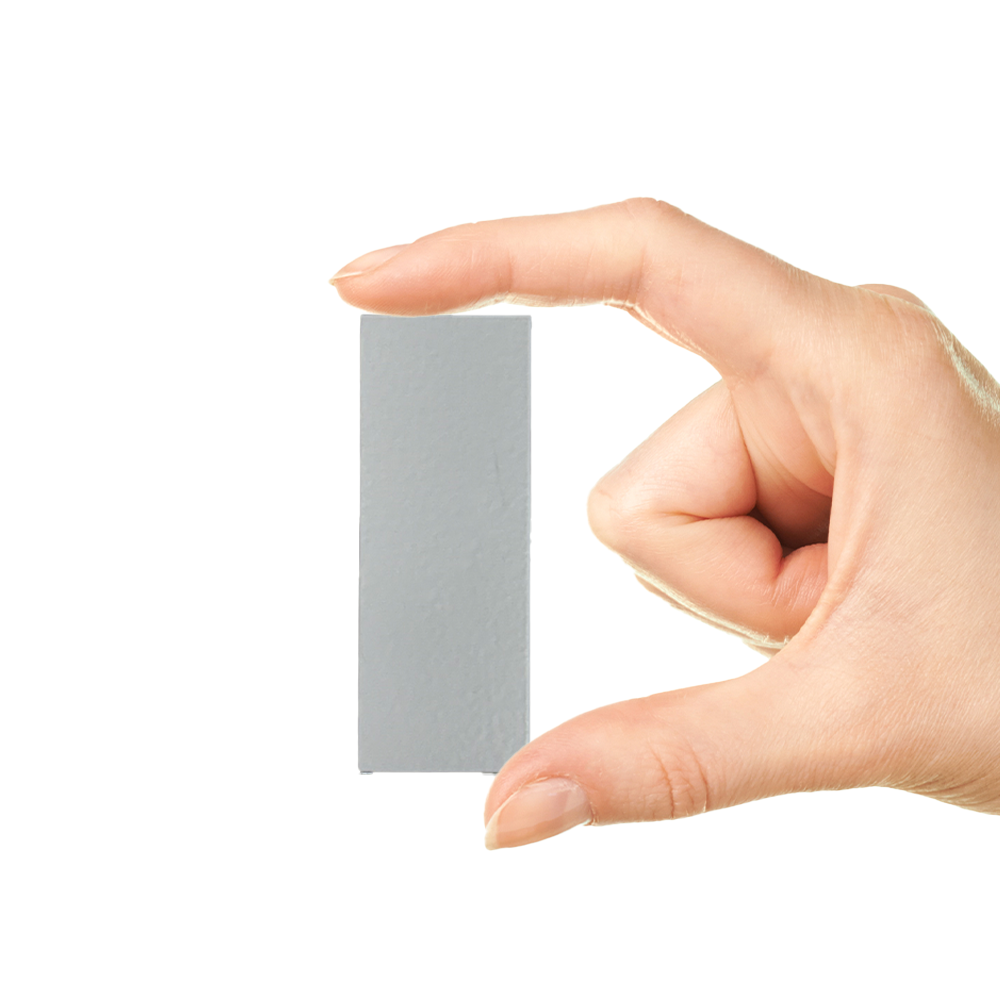

NANO Series products are all sub 1" width and sub 2" height

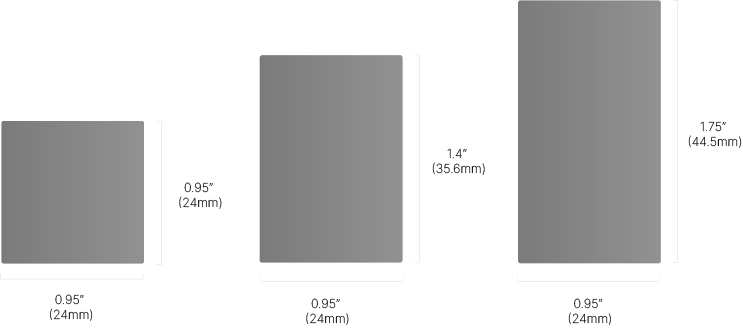

NANOSquare, with its 0.95″ X 0.95″ square profile, is offered in recessed, surface, pendant, and wall configurations, including shapes. NANOBeam increases the height to either 1.40″ or 1.75″ and adds regressed lens options with two different cutoff angles to bring another level of glare control to the small form factor.

Nano Cavity Optics

Low glare collimated beam delivers high foot candles.

Power-over-cable

Remote driver and power integrated suspension cable.

Mounting choices

Pendant, Surface, Recessed, and Wall.

Fusion Optix® Inside

Patented Innovations in Optics & LED systems.

Low and zero plenum

Less than the height of a T-bar. XICO® products feature a variety of mounting options for ceiling grid systems, wood, metal, drywall, and mud-in applications.

Human-centric lighting

Lighting that enhances human performance, comfort, health, and well-being by balancing the visual, emotional, and biological benefits for humans.

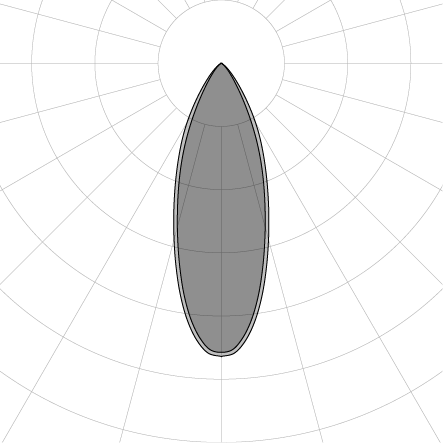

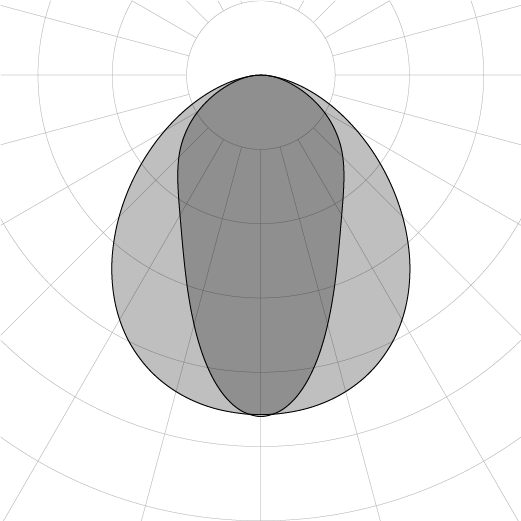

SmartBeam® Controlled Beam Distributions

SmartBeam® is adaptive wavefront technology developed with the single purpose of delivering the ultimate control over light distributions. In addition to the standard SmartBeam® options XICO also provides a customization service. If you need a particular light distribution for your application, then you probably need SmartBeam®.

Commitment to sustainability

Our performance focus, including the efficiency of our optical systems, reduces energy consumption in every project that specifies XICO® fixtures. We are combating waste in the lighting industry by reducing our footprint, reusing what we can, and utilizing recycled materials. From re-considering our inputs to re-thinking our supply chain, we are constantly working on ways to reduce our impact on the environment further and create a more sustainable world.

Red List Free and Declare, by design.

XICO designs our products with green building standards in mind, supporting achieving LEED, WELL, and Living Building Challenge.

Patents

Learn more about the unique technologies that give XICO products their performance and a design edge.

Explore Patents

SmartBeam®

Find your beam distribution and compatible products. Learn more about use cases and discover related project studies.

View All Distributions
