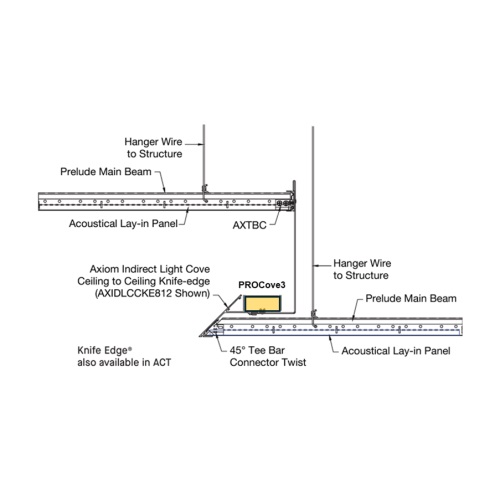

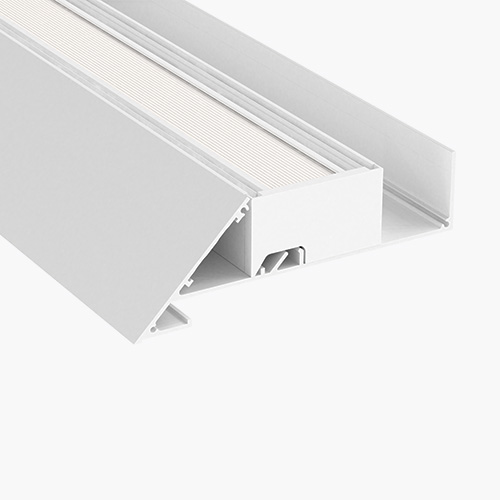

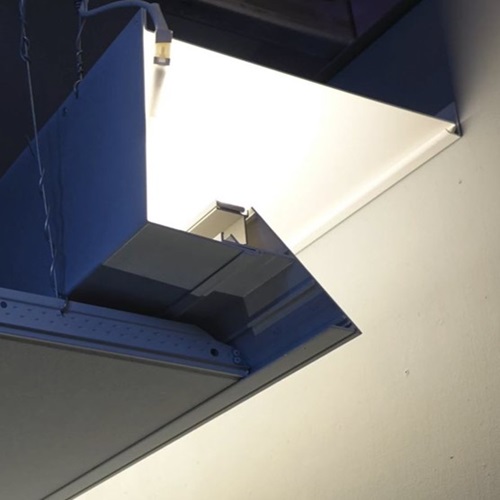

PROCove3 is part of the innovative family of ultra-slim and compact LED linear products providing best-in-class efficiency and beam control options. PROCove3 is supplied with a range of integral driver choices and is a high performance cove product. PROCove3 is designed to be used in either an on-site built cove or with the Armstrong AXIOM® family of light coves. PROCove3 is specification-grade with high lumen per foot, high CRI, and circadian options. PROCove3 uses engineered light engines with fully customizable choices for lighting distributions, CCT, and CRI. In addition to a full range of static white, PROCove3 can also be supplied with dim-to-warm, tunable white and RGBW light engines.
Fixture Dimensions: 3.0″ (H) x 1.9″ (W)
Installation Instructions
Revit Files
Tech Drawings
Mounting Style
Mounting Brackets

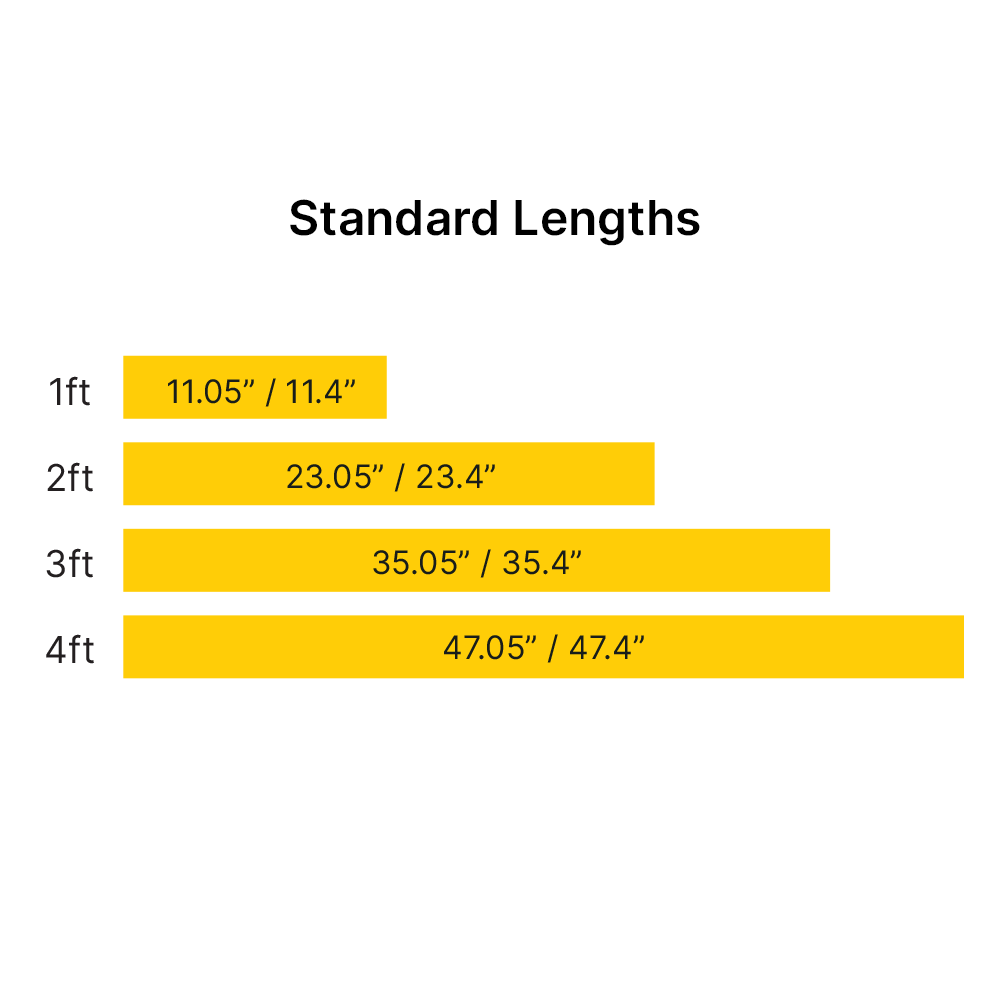

Standard Lengths
Finish
Housing Material
Warranty
Sustainability
Cove
Sheet Metal
1ft, 2ft, 3ft, 4ft
Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices
Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Up to 1,500 Lm/Ft, 150 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm
Flush
80/90/95+
2200K to 6500K
Indirect Only
120-277 VAC and 347 VAC, 50/60 Hz
Integral AC
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
| Light Direction | |
|---|---|
| Finish | Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL # |
| Length | 12 Inches, 24 Inches, 48 Inches, Configurable in continuous runs in 6" increments, Custom |
| Color Temperature | |
| Color Rendering Index | |
| Mounting Method | Cove & Perimeter, Undercabinet, TBar/Grid Ceilings, Surface (Ceiling), Surface (Wall Mount) |
| Width | |
| Beam Distribution | |
| Driver |
