GRIDHybrid6 is an innovative low-profile 6″ wide LED luminaire designed to be used in T-Bar ceiling installs. GRIDHybrid6 is configured as two individually addressable edge lit panels with a unique center section that can house a field serviceable driver, sensors and controls. GRIDHybrid6 is especially suited to low or zero plenum applications since it is less than the height of T-Bar main beam. GRIDHybrid6 provides best-in-class efficiency and beam control options, including lambertian, batwing and asymmetric for wall washing and perimeter lighting. GRIDHybrid6 also incorporates precision engineered LED light engines with fully customizable choices for lumen output, CCT and CRI, as well as being compatible with control options from leading players such as Lutron, Cooper and Casambi.
Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
Housing Material
Warranty
Sustainability
6″ x 1.4″
T-Bar
T-Bar
Sheet Metal
2ft, 4ft, 6ft, 8ft
Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices

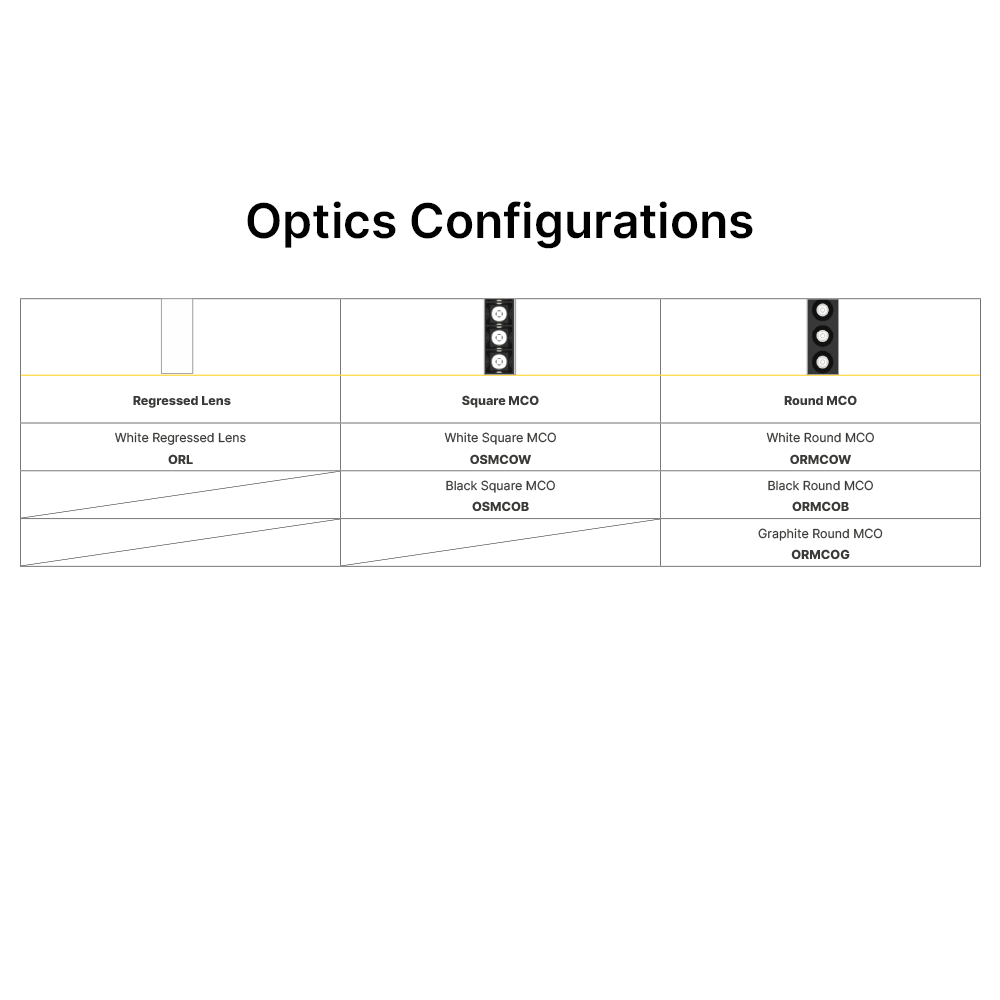

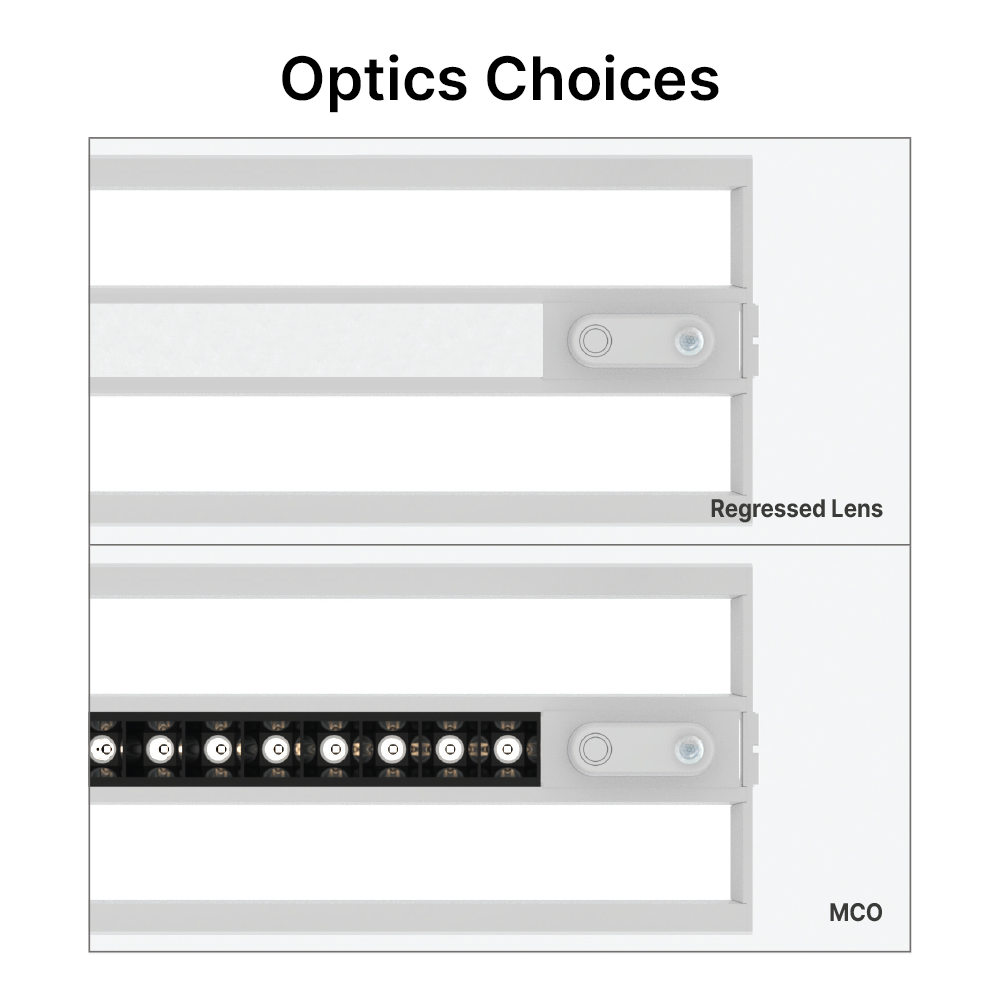

Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Power Cord
Up to 1,000 Lm/Ft, 135 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm
Regressed & MCO
80/90/95+
2700K to 65000K
Direct Only
120-277 VAC and 347 VAC, 50/60 Hz
Integral
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
24″
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
| Dimensions | 3.5 × 0.98 in |
|---|---|
| Light Direction | |
| Finish | Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL # |
| Length | 4', 6', 8', Configurable in continuous runs in 6" increments, Custom |
| Color Temperature | |
| Color Rendering Index | |
| Mounting Method | |
| Width | |
| Beam Distribution | |
| Driver | |
| Advanced Technology | |
| Customization Option |
