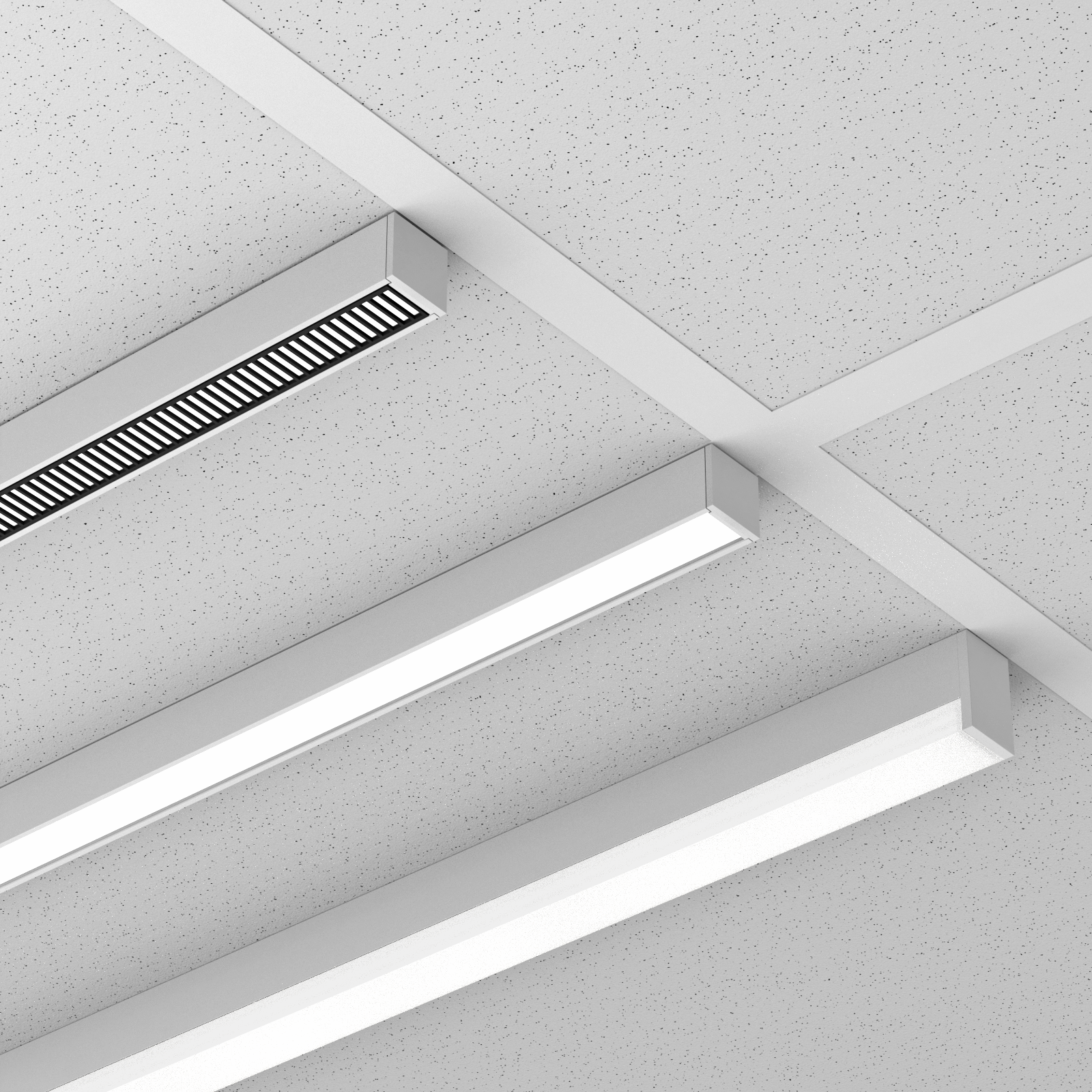

GRIDBar1 is a unique and patented linear lighting solution design to directly replace T-Bar elements in suspended grid ceilings. GRIDBar1 is the only lighting product that replaces a T-Bar whilst allowing positioning anywhere in the grid ceiling. GRIDBar1 is designed to be exactly 15/16” wide, thereby matching the typical width of a T-Bar element. GRIDBar1 can also be used to directly replace both flat ad bolt-slot style 9/16″ T-Bar elements. GRIDBar1 brings SmartBeam® capabilities in an easy to install form factor that complements architectural space. GRIDBar1 features a remote driver and “power over cable” technology to remove visual bulk.
Fixture Dimensions: 15/16″ (W) x 15/16″ (H)
Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
End Cap Styles
Housing Material
Warranty
Sustainability
15/16″ x 15/16″
T-Bar
T-Bar Replacement
Sheet Metal
2ft, 4ft, 6ft, 8ft
Powder Coated & Anodized
Flat
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices

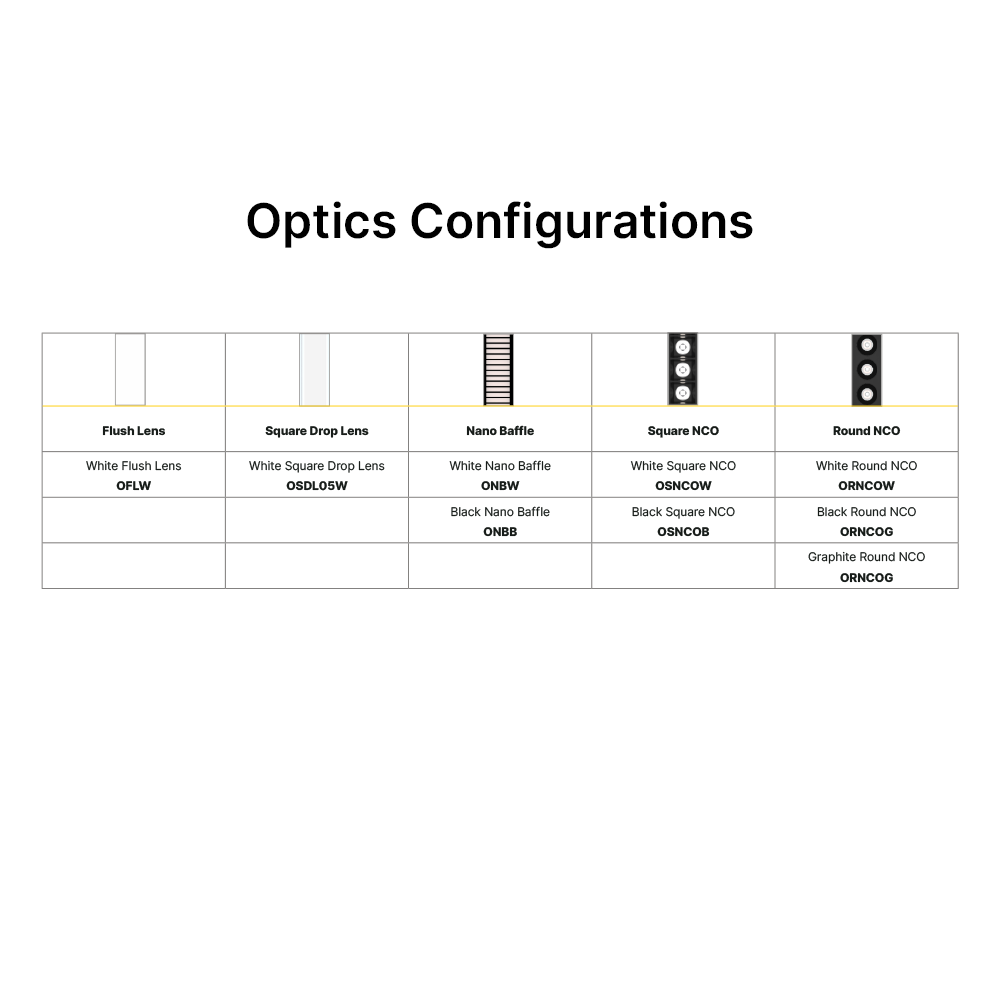

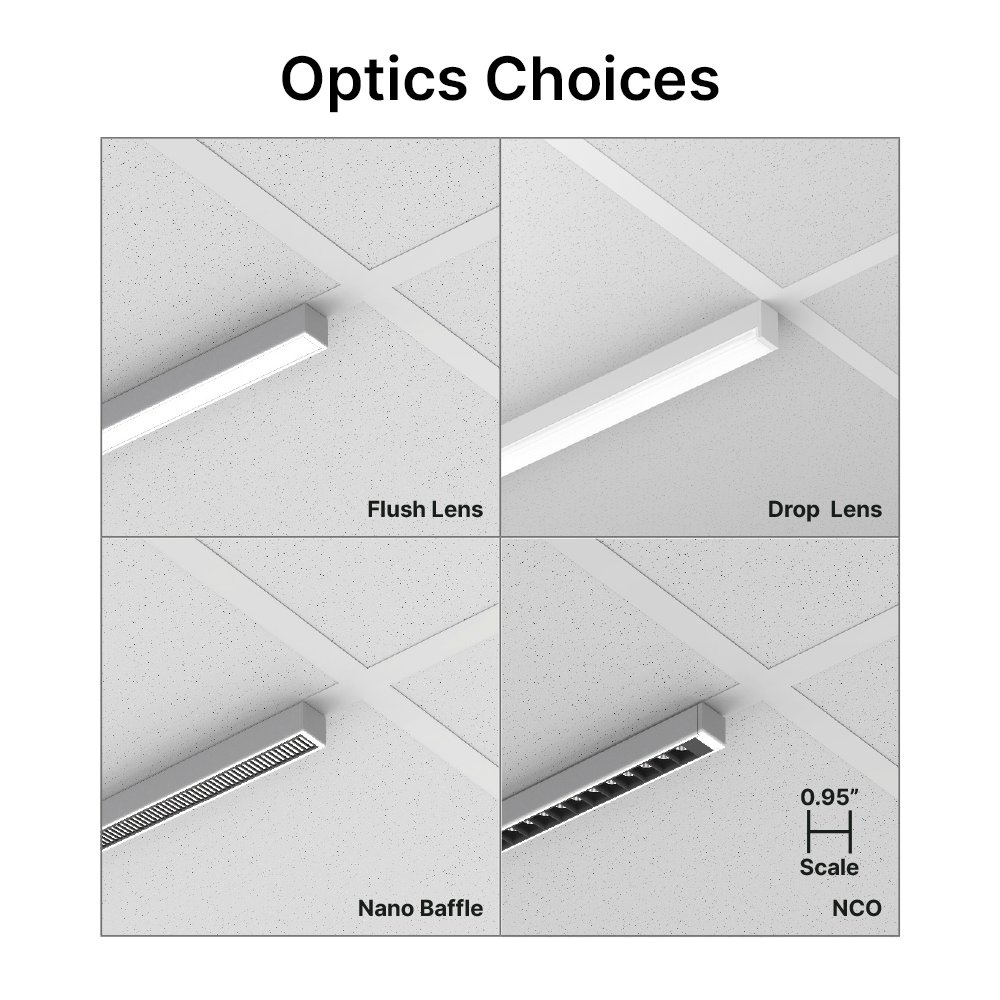

Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Power Cord
Up to 1,000 Lm/Ft, 135 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm

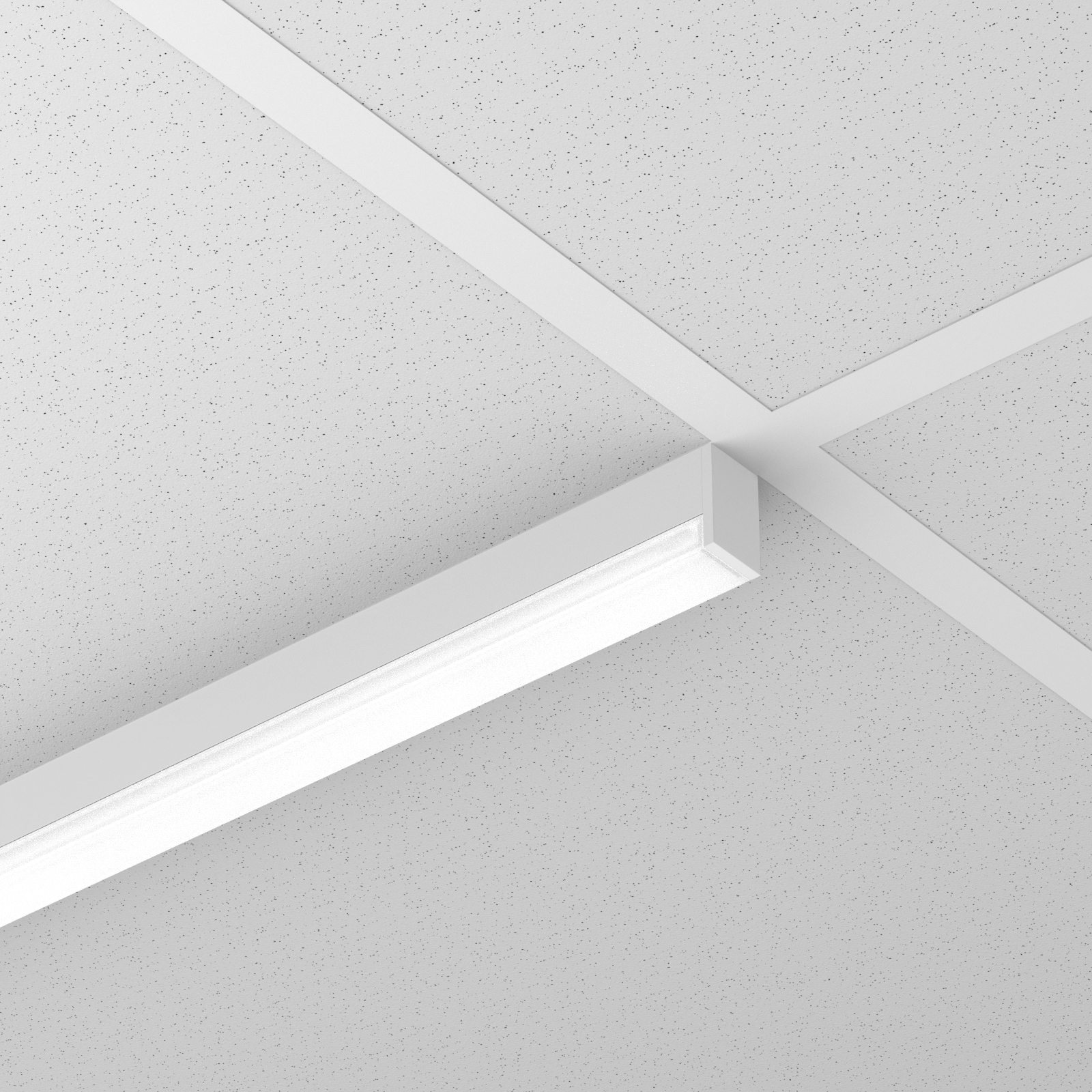

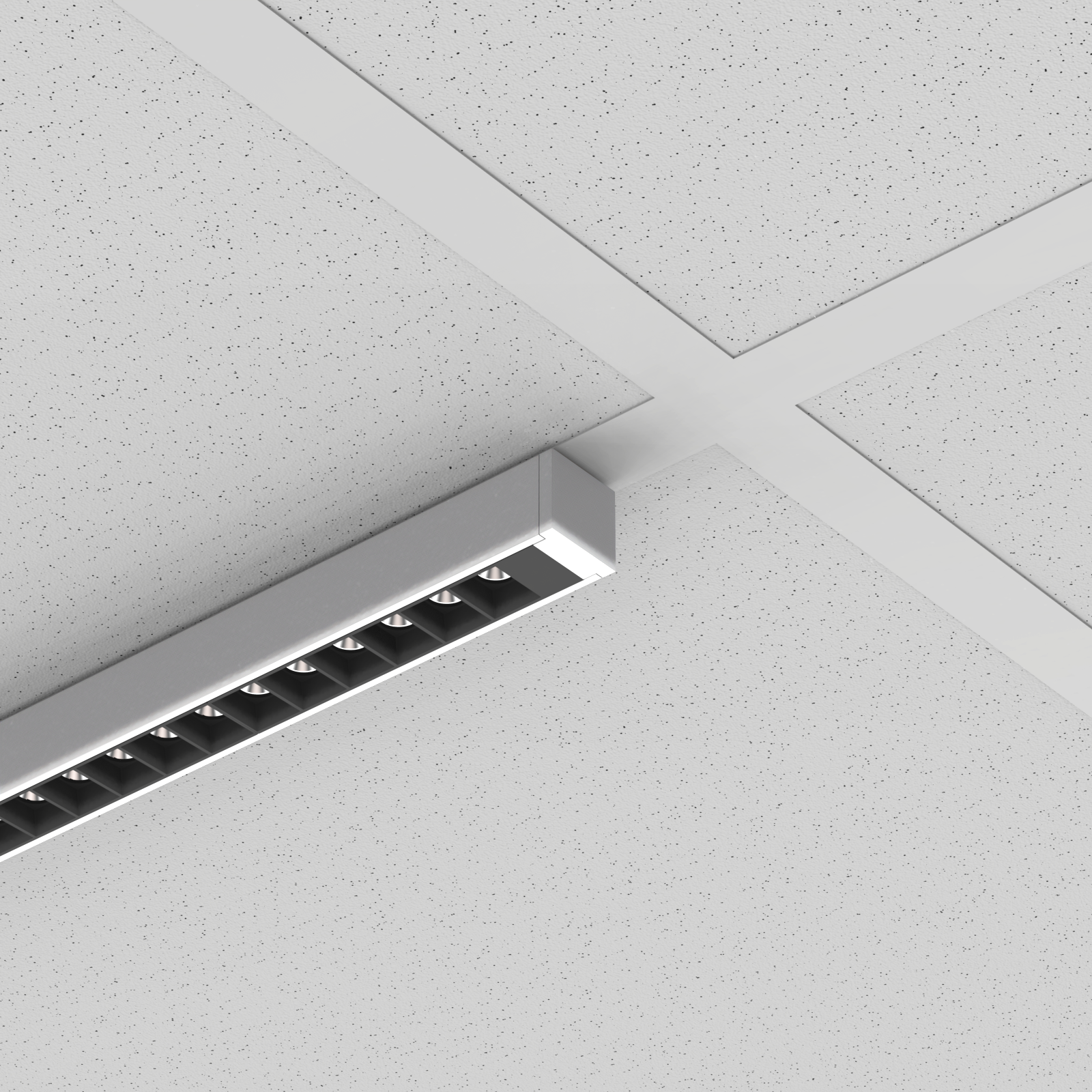

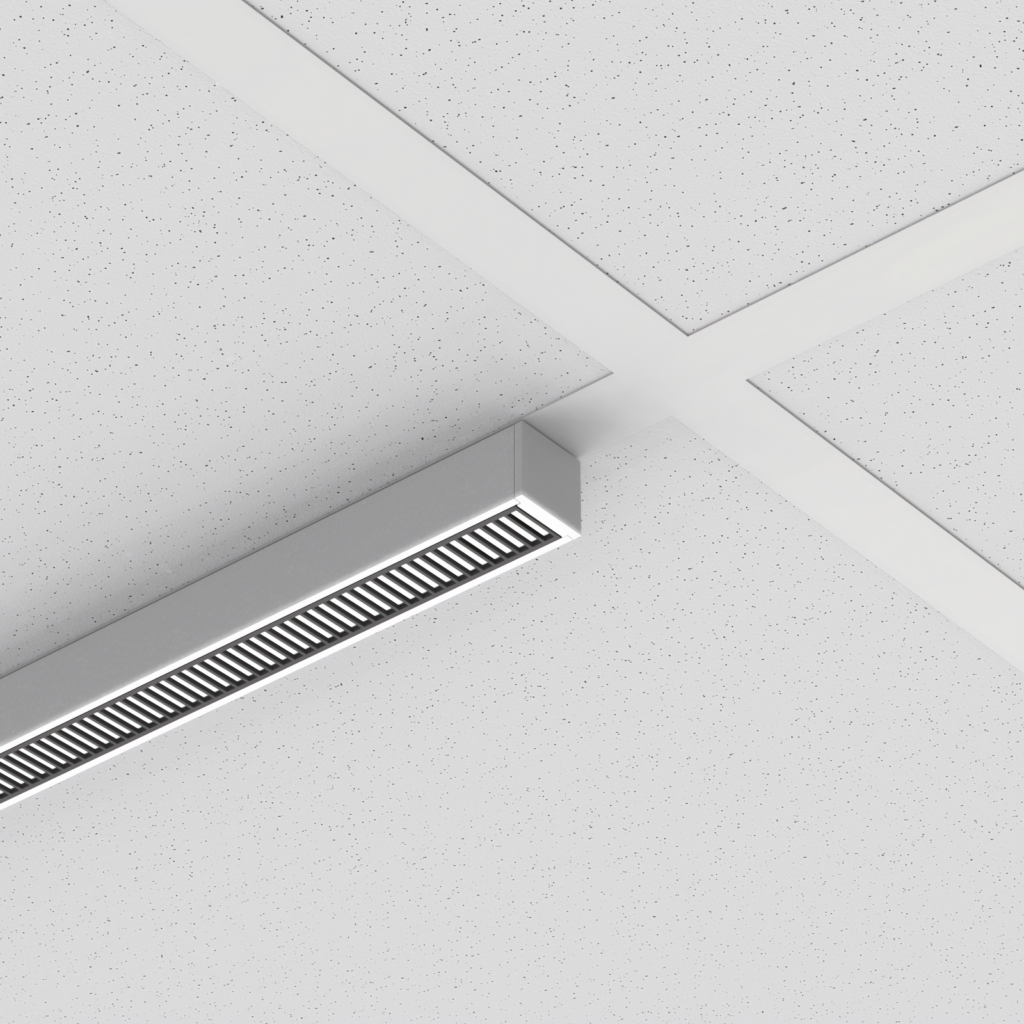

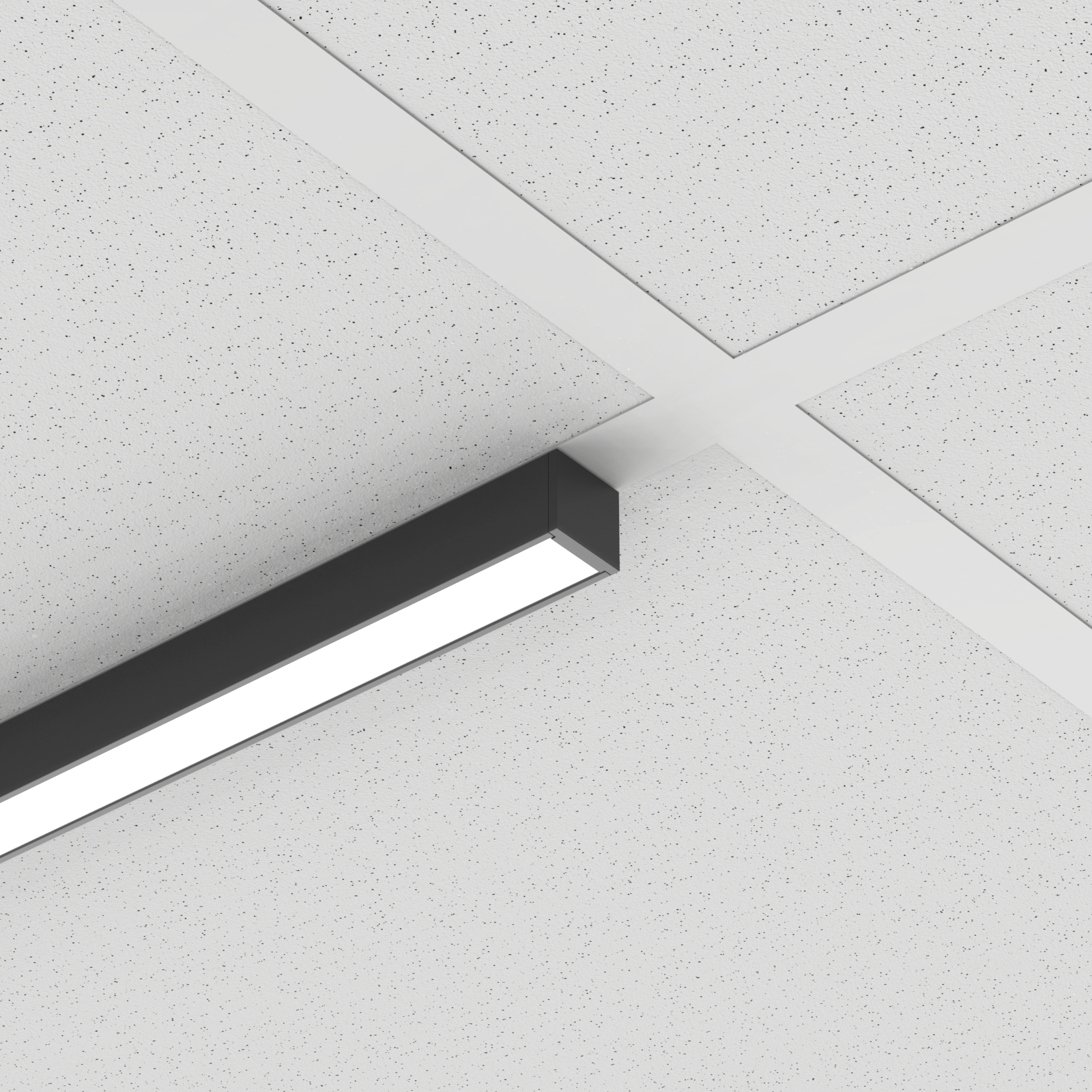

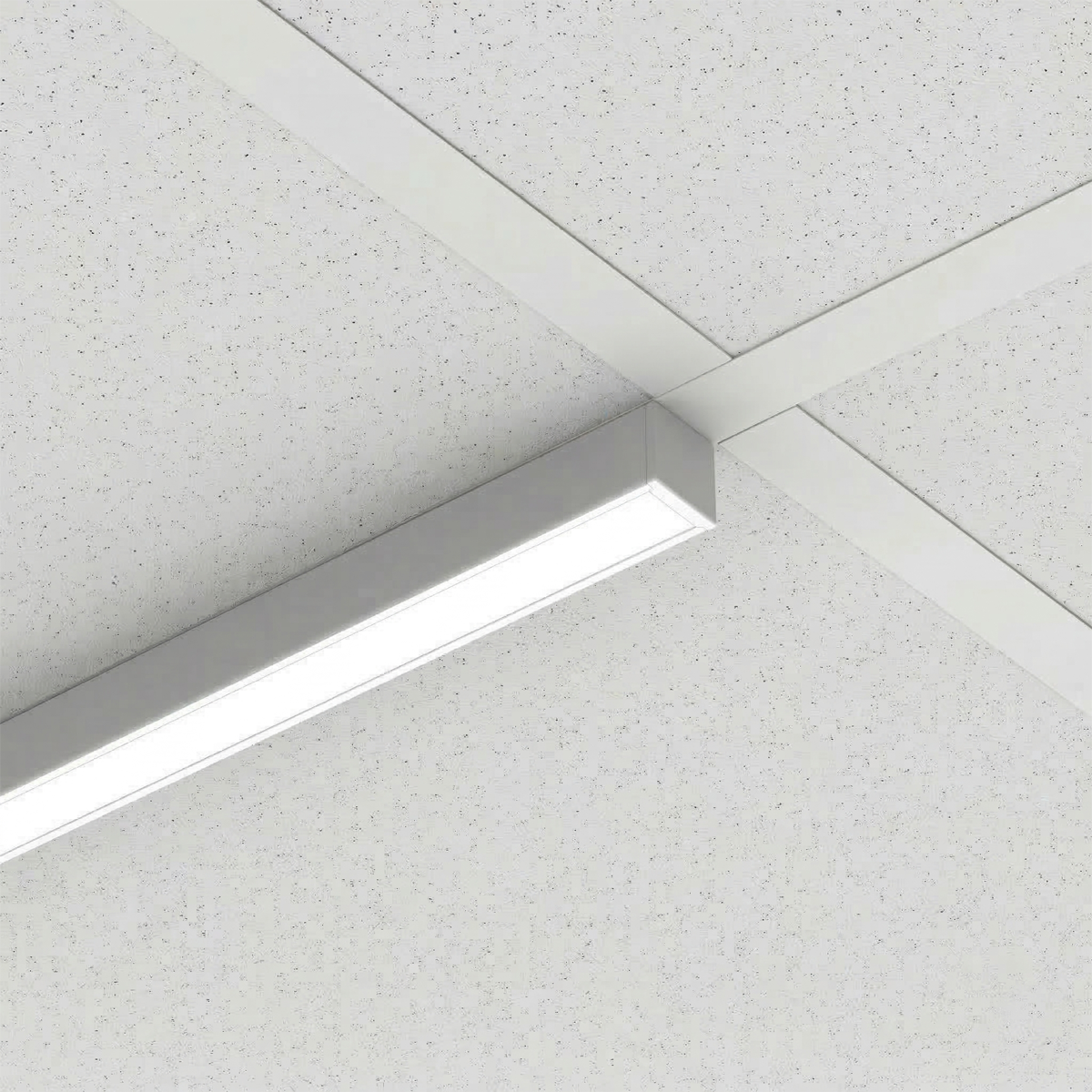

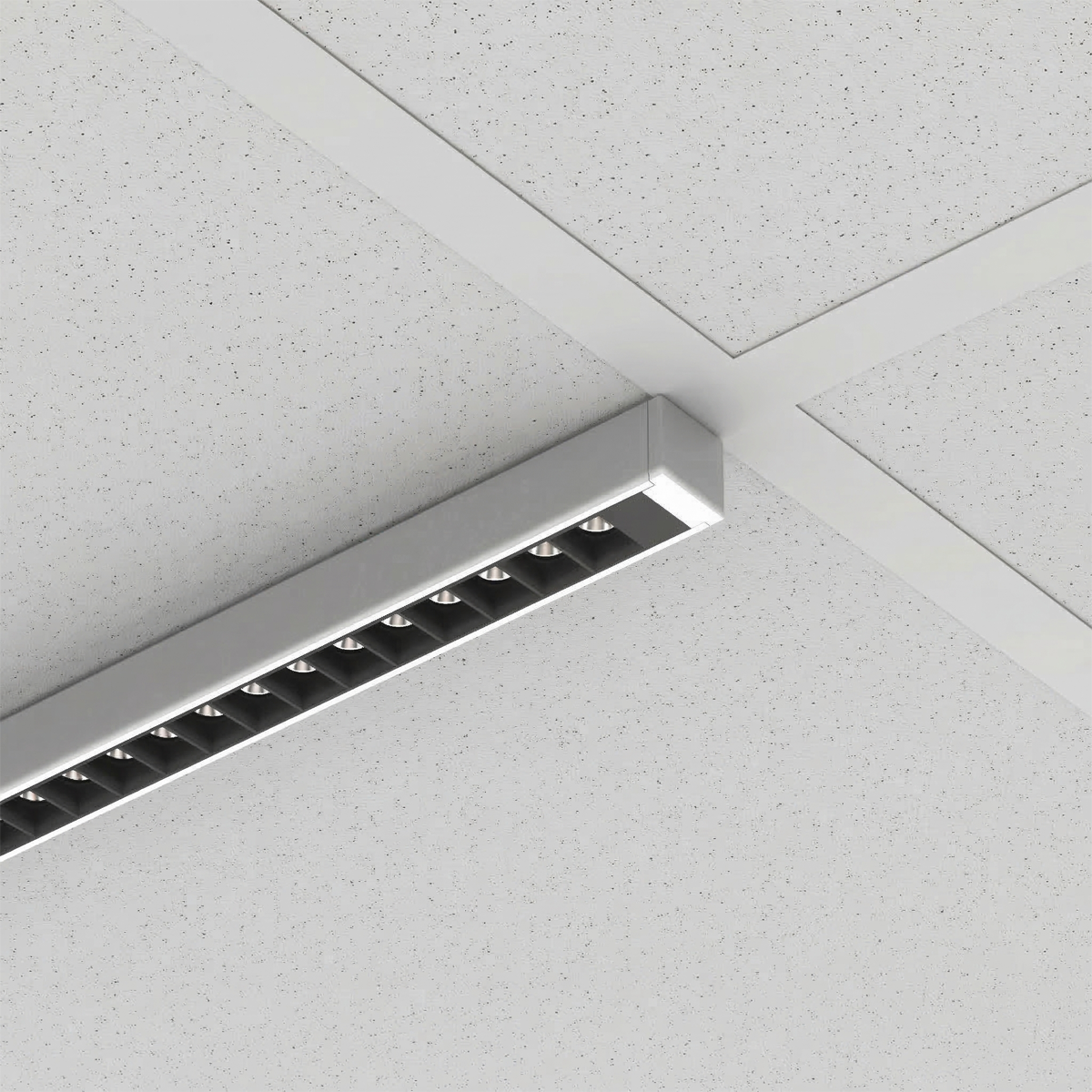

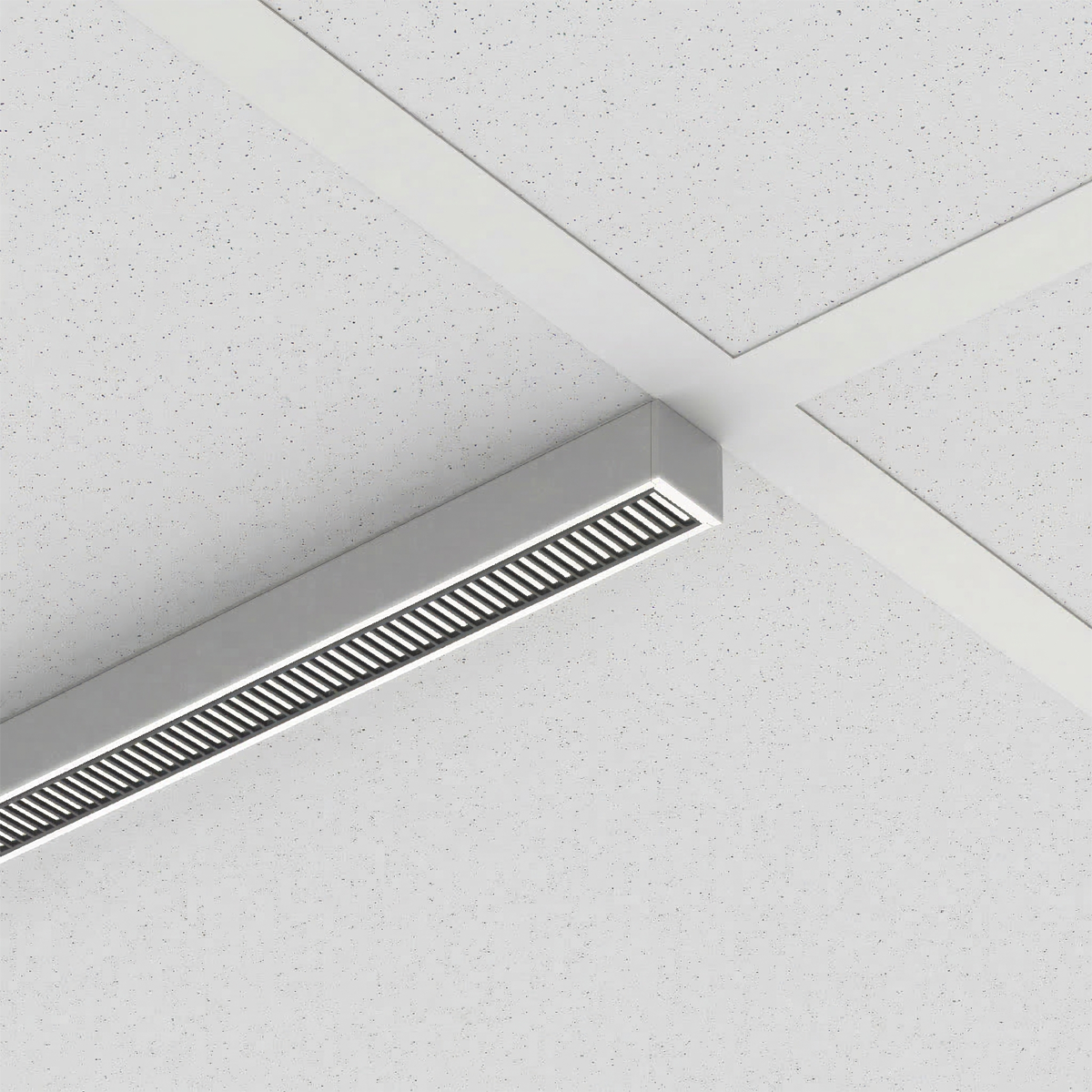

Flush, Nano Baffle, Drop & NCO
80/90/95+
2700K to 6500K
Direct Only
120-277 VAC and 347 VAC, 50/60 Hz
Factory, Lutron & eldoLED
Emergency Circuit & Emergency Battery
Remote
48″ and 96″
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
| Light Direction | |
|---|---|
| Finish | Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL # |
| Length | 4', 6', 8', Configurable in continuous runs in 6" increments, Custom |
| Color Temperature | |
| Color Rendering Index | |
| Mounting Method | |
| Width | |
| Beam Distribution | Asymmetric, Batwing, Cosine, Double Asymmetric, Graze, Medium, Wide |
| Driver | |
| Customization Option |
