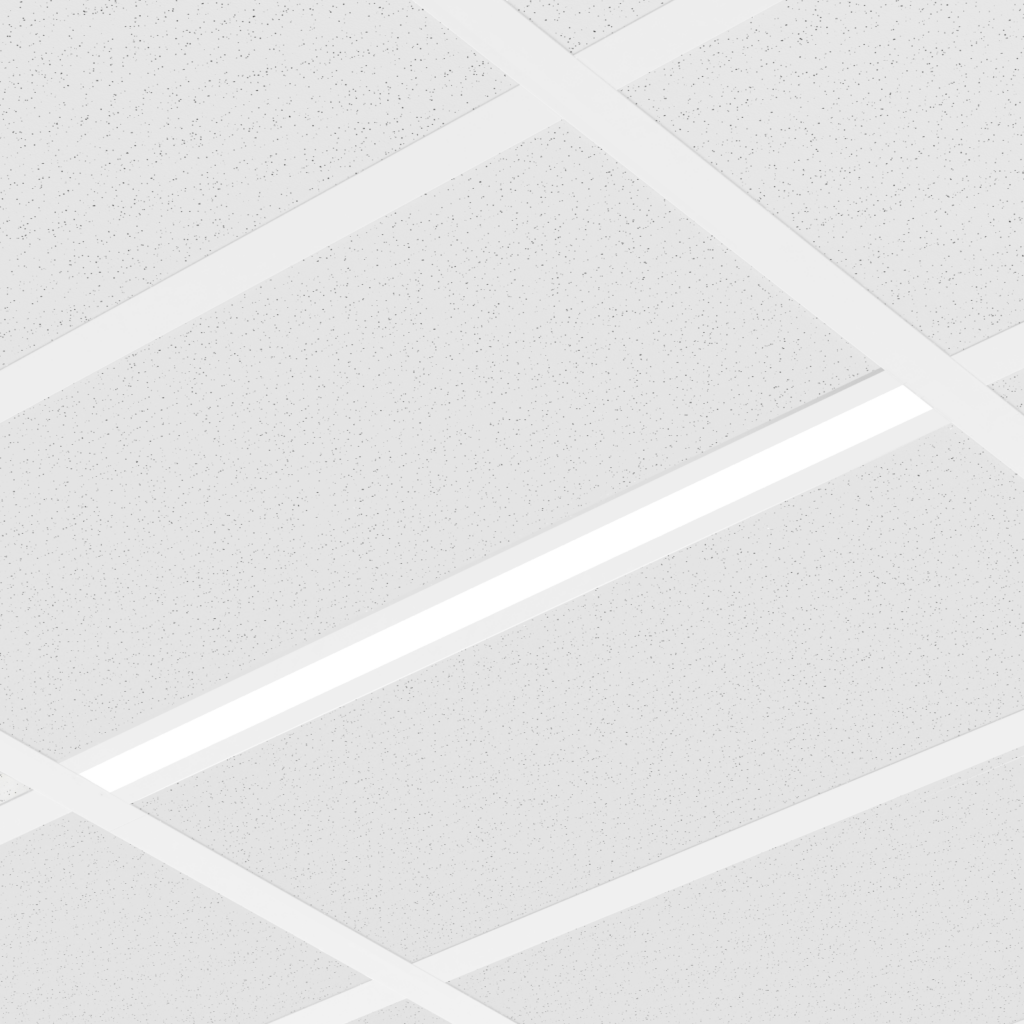

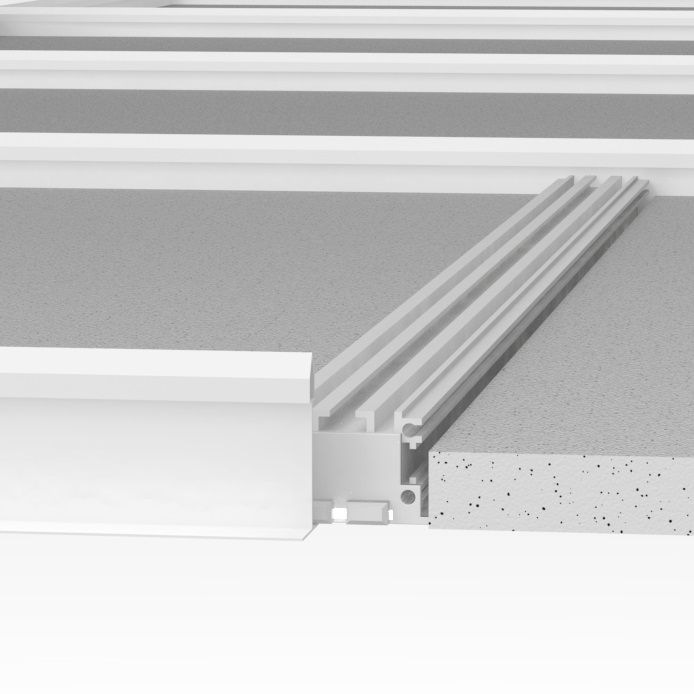

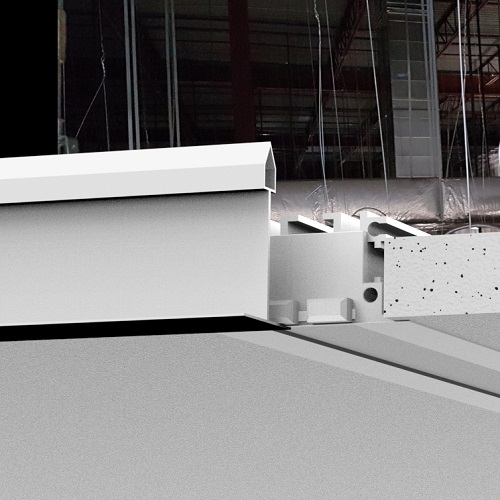

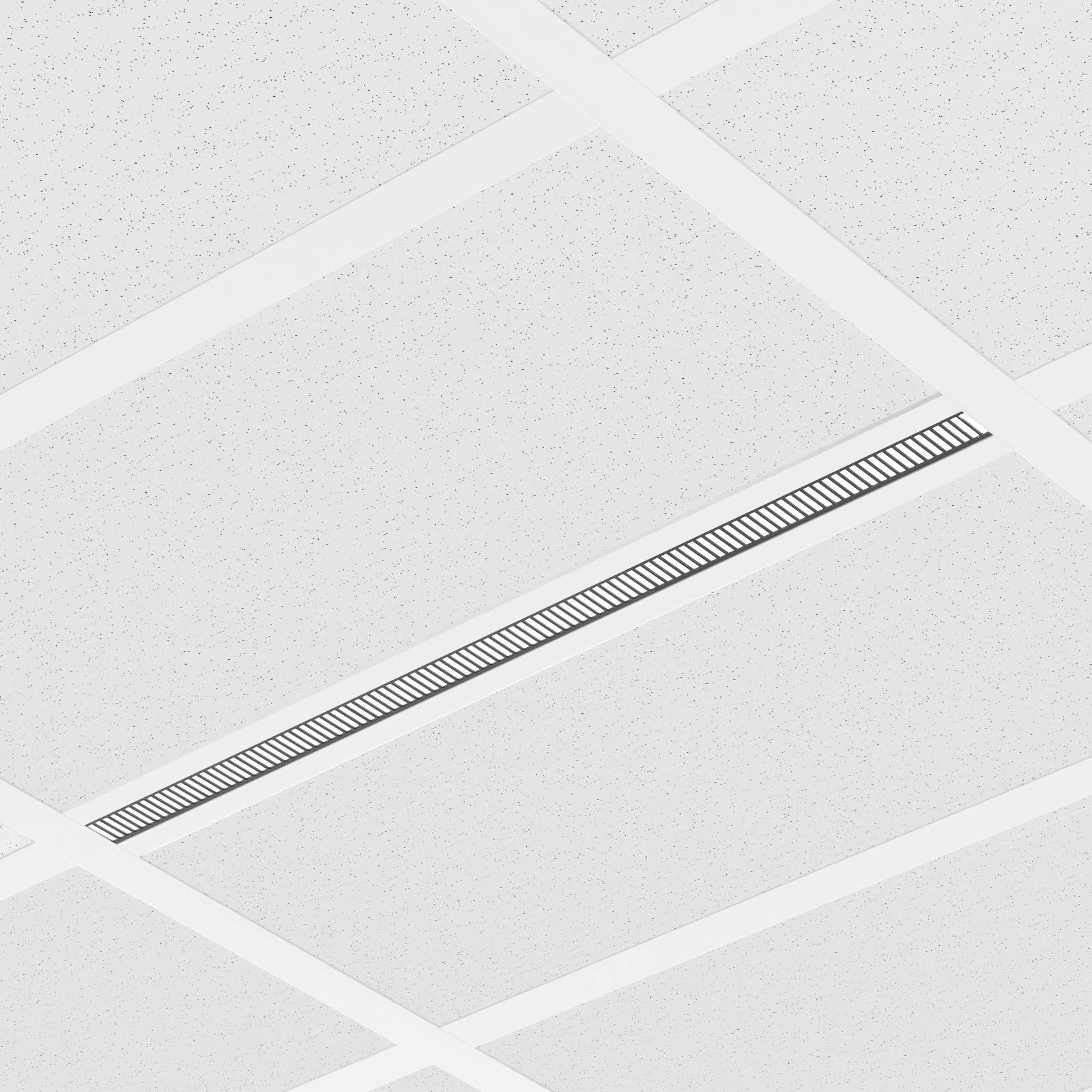

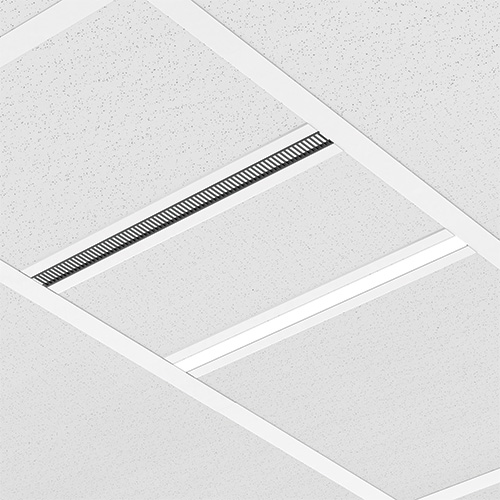

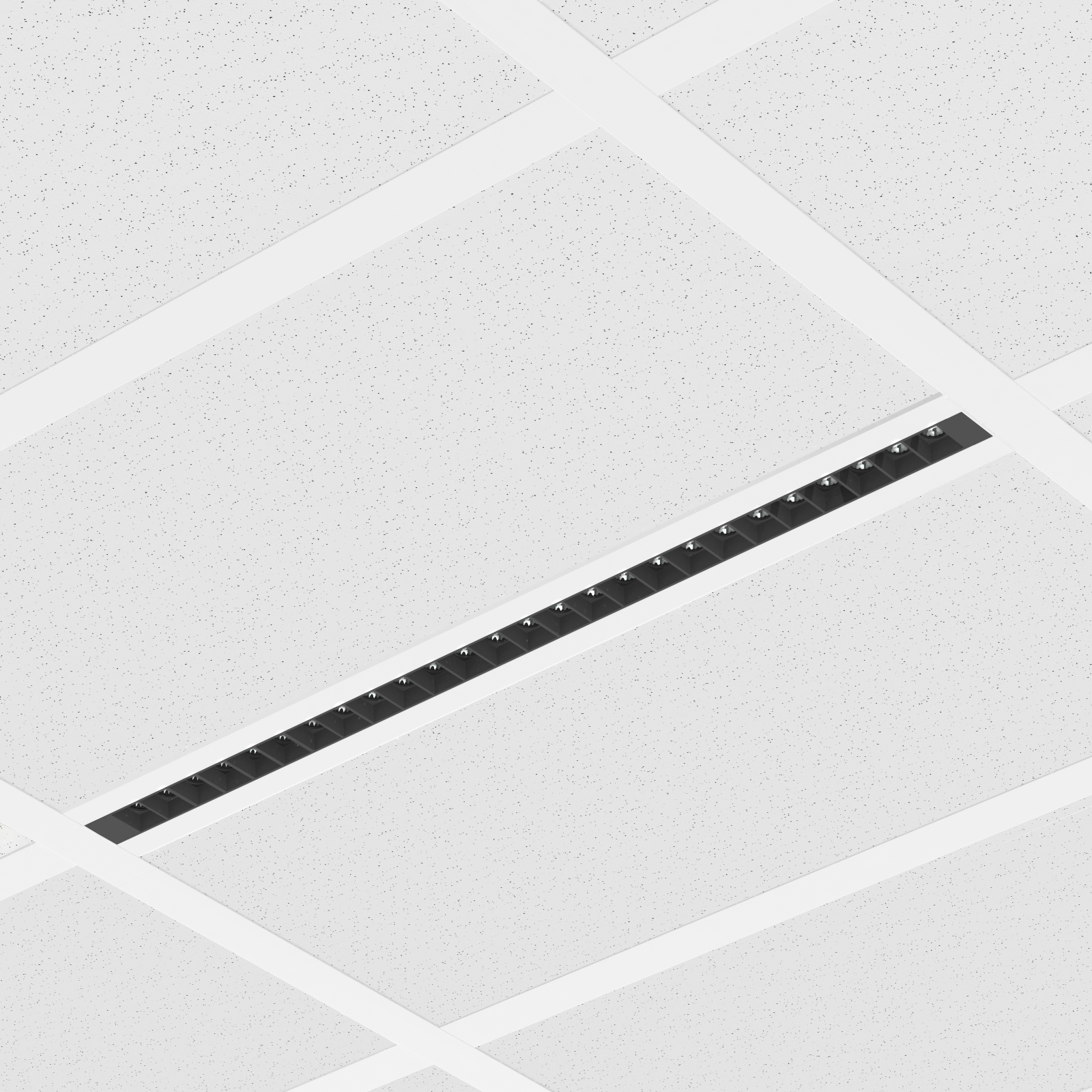

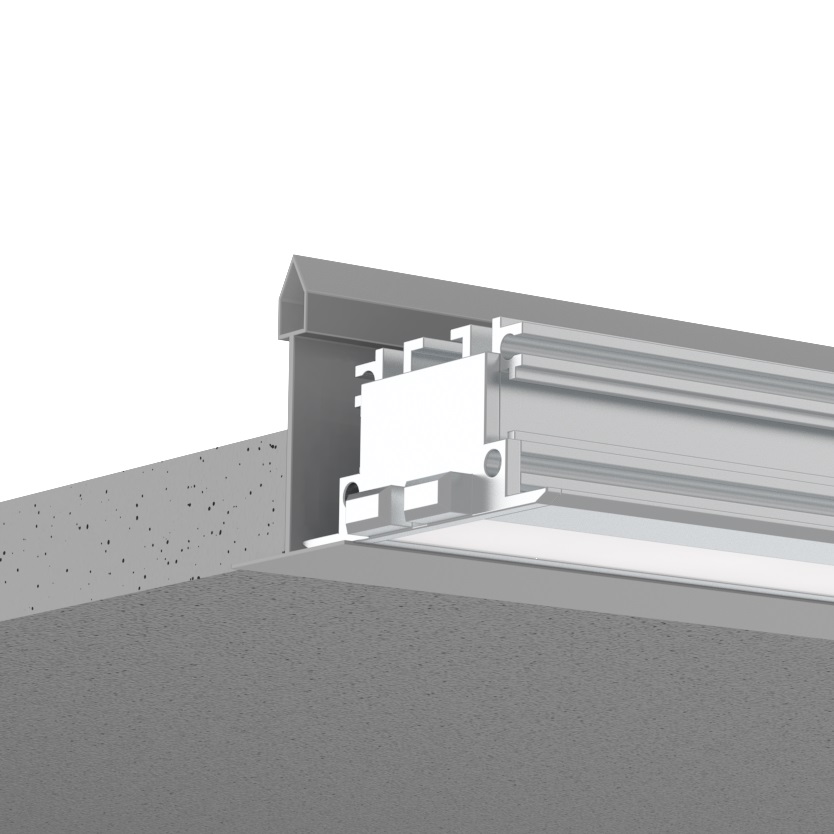

GRIDSlot1 is a recessed T-bar LED linear light fixture designed with an aperture the same width as the horizontal flange of a typical 15/16″ T-Bar. GRIDSlot1 brings SmartBeam® capabilities to a graphic scale that complements architectural space. GRIDSlot1 has mounting options for ceiling grid systems, and custom configurations. The GRIDSlot1 is designed to be specification-grade with high lumen per foot, and high CRI.
Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
Housing Material
Warranty
Sustainability
1.3″ x 1″
T-Bar
T-Bar
Sheet Metal
2ft, 4ft, 6ft, 8ft
Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices

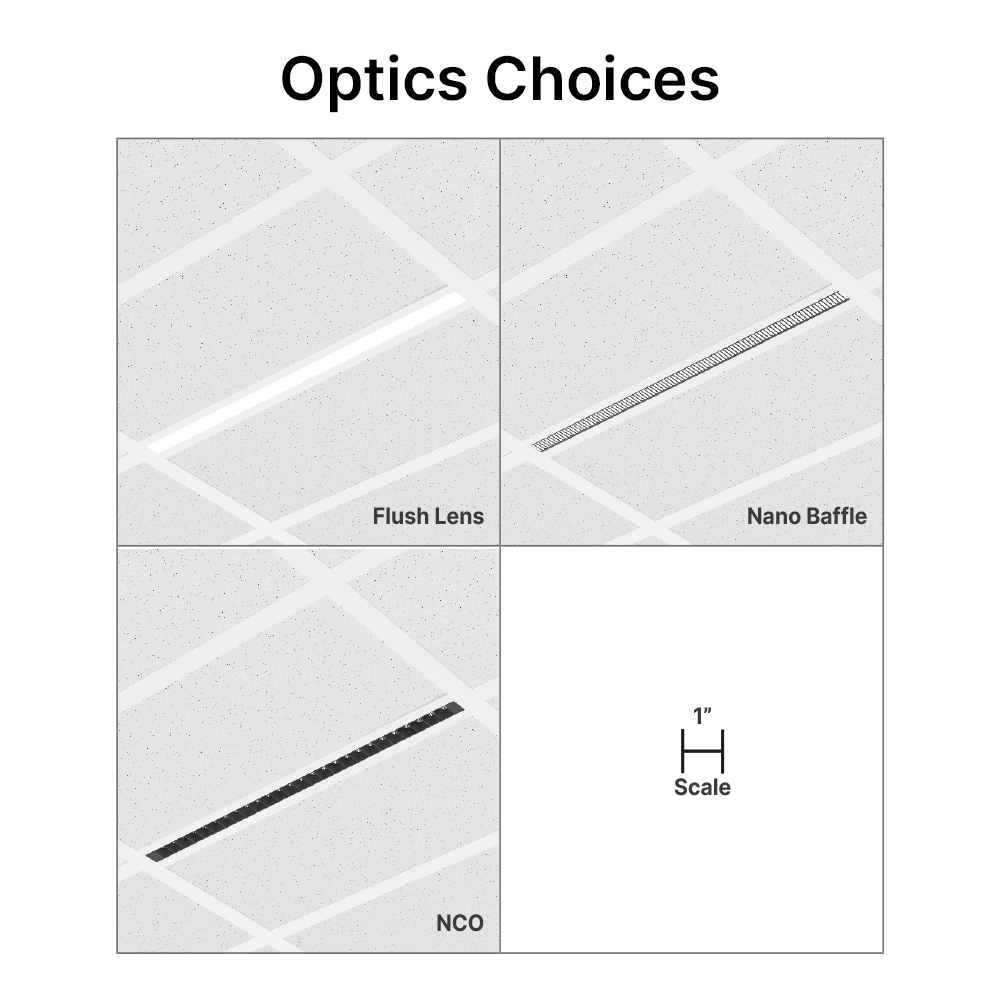

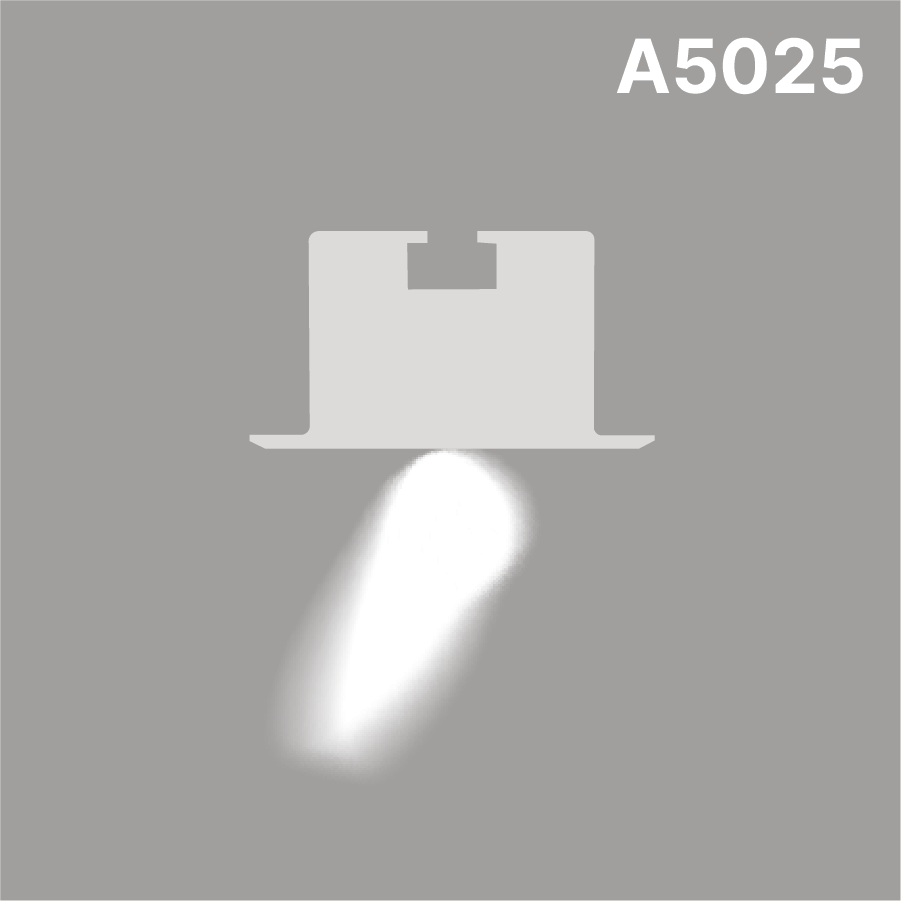

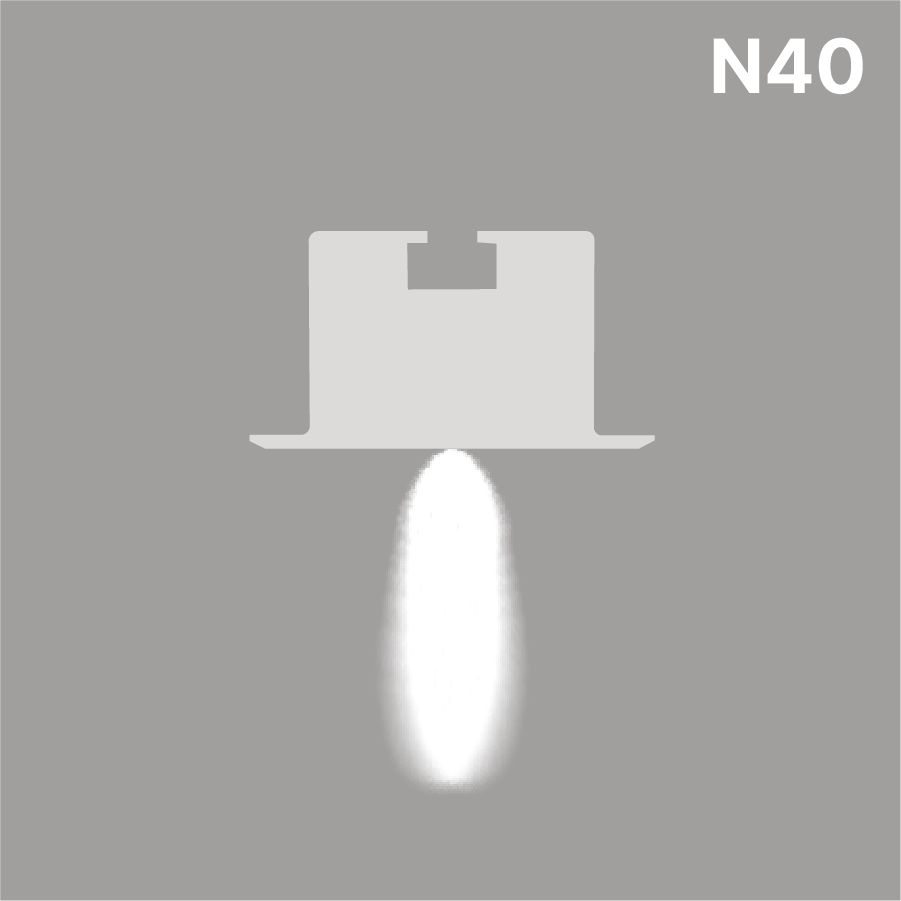

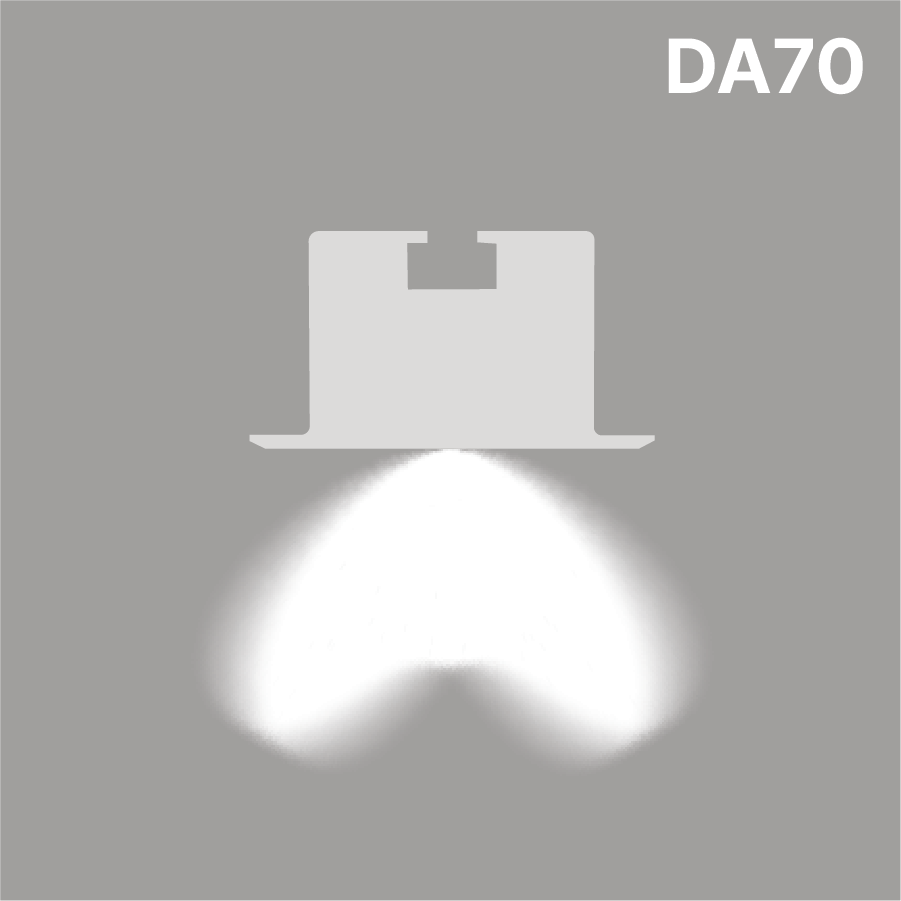

Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Power Cord
Up to 1,000 Lm/Ft, 135 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm

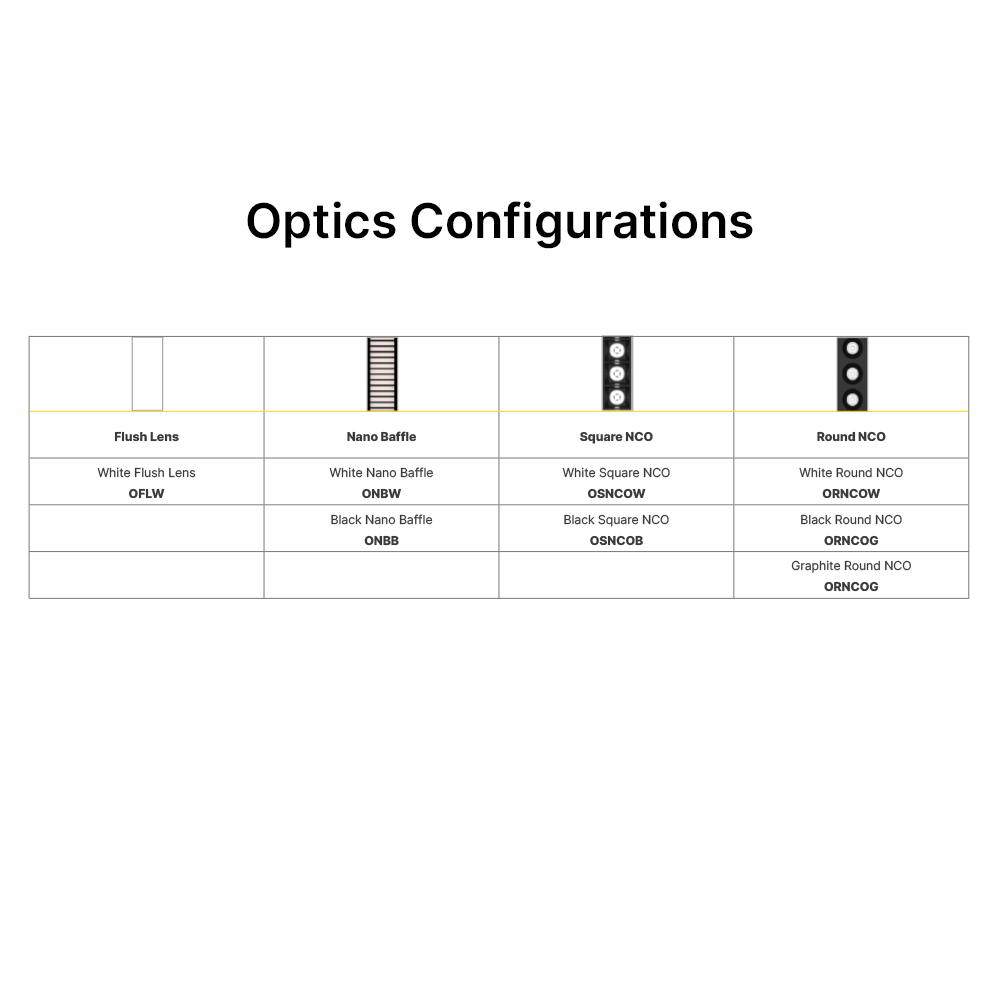

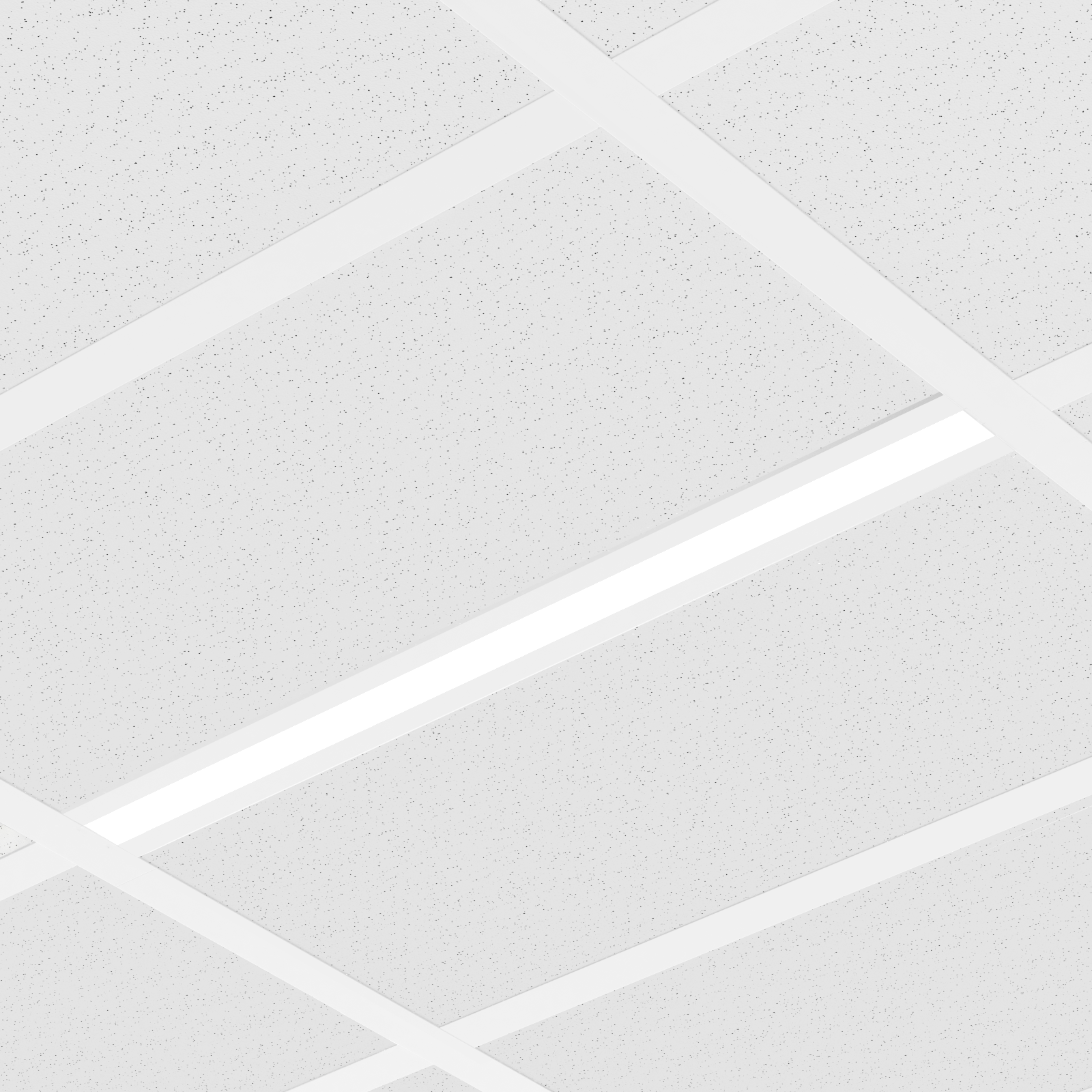

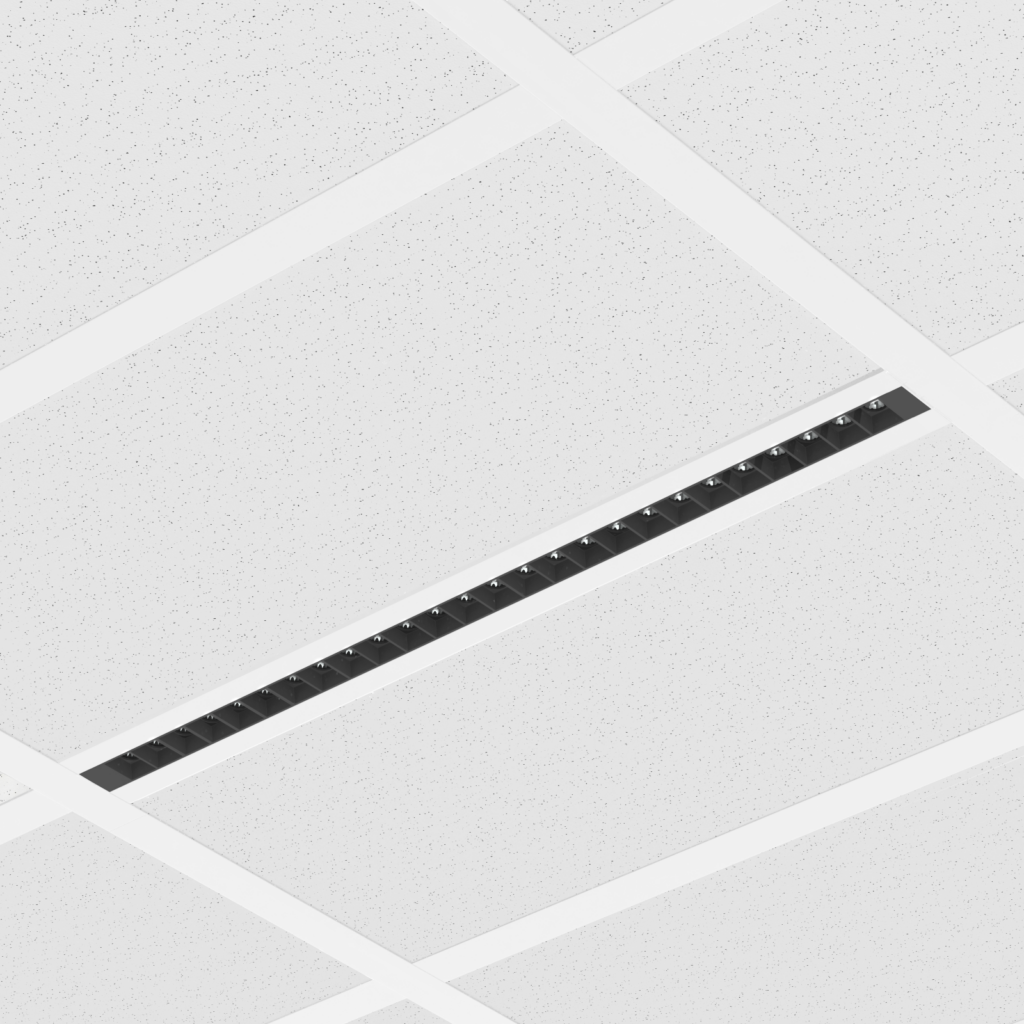

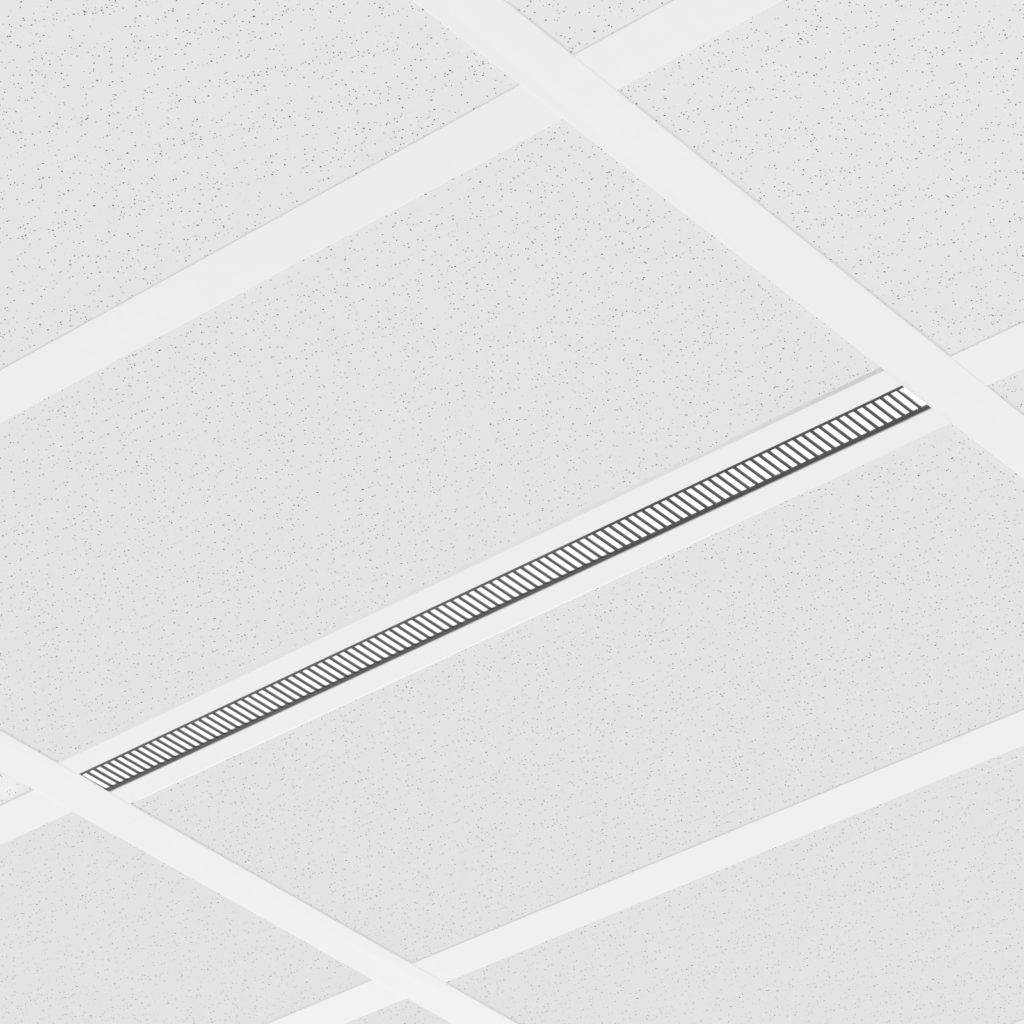

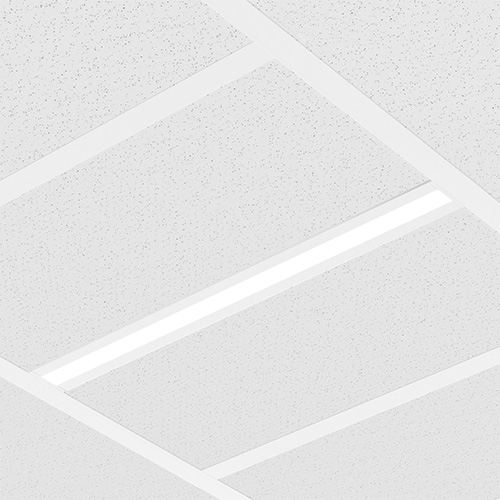

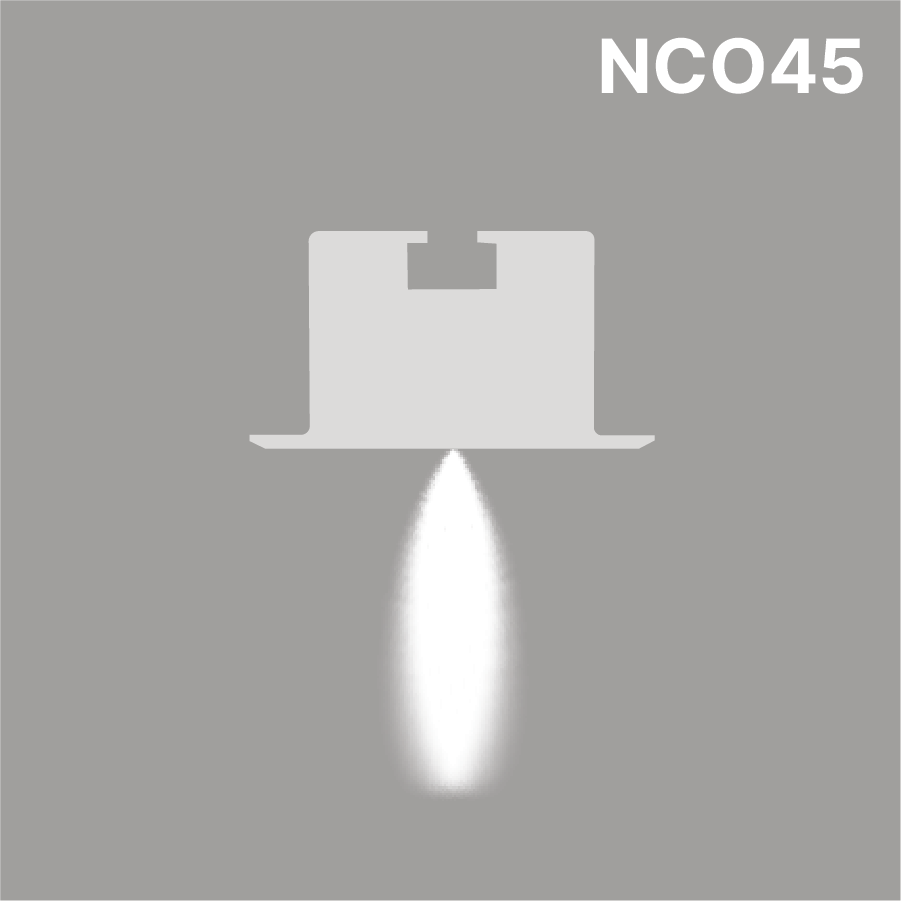

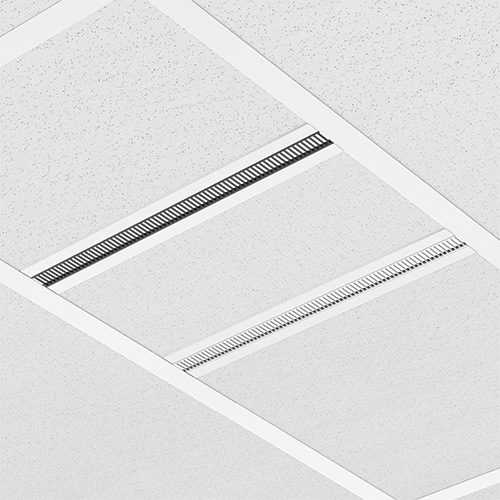

Flush, Nano Baffle, & NCO
80/90/95+
2700K to 65000K
Direct Only
120-277 VAC and 347 VAC, 50/60 Hz
Fixture Mounted or Remote
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
24″
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
| Light Direction | |
|---|---|
| Finish | Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL # |
| Length | 4', 6', 8', Configurable in continuous runs in 6" increments, Custom |
| Color Temperature | |
| Color Rendering Index | |
| Mounting Method | |
| Width | |

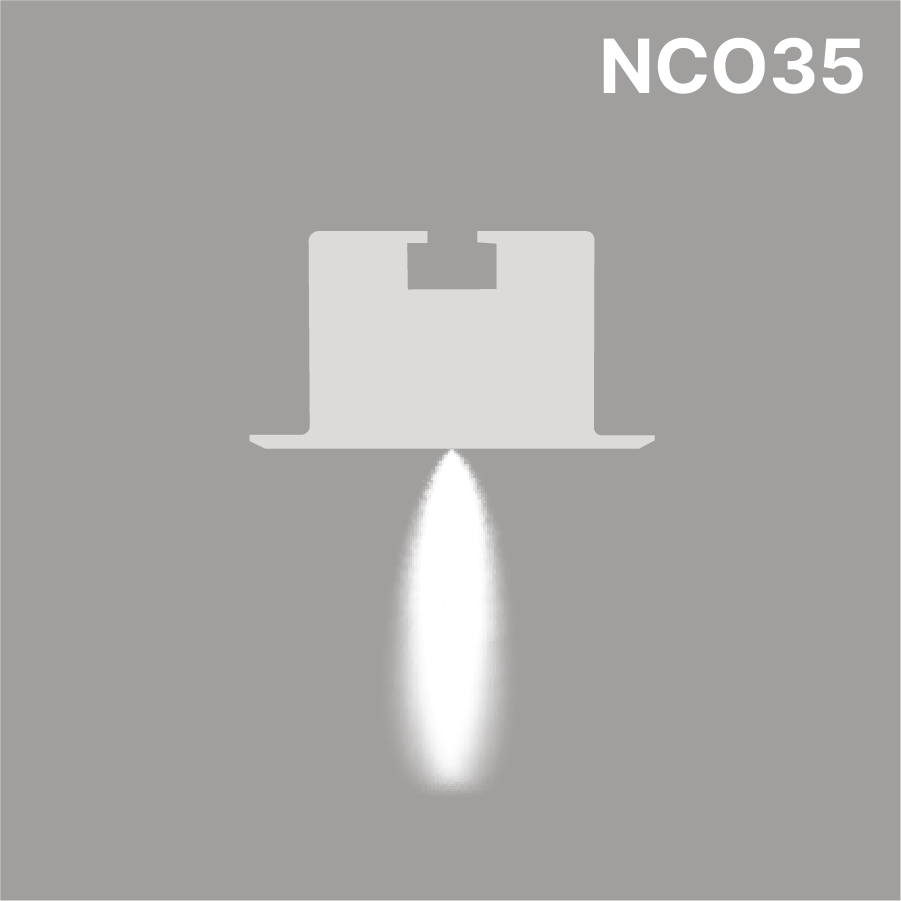

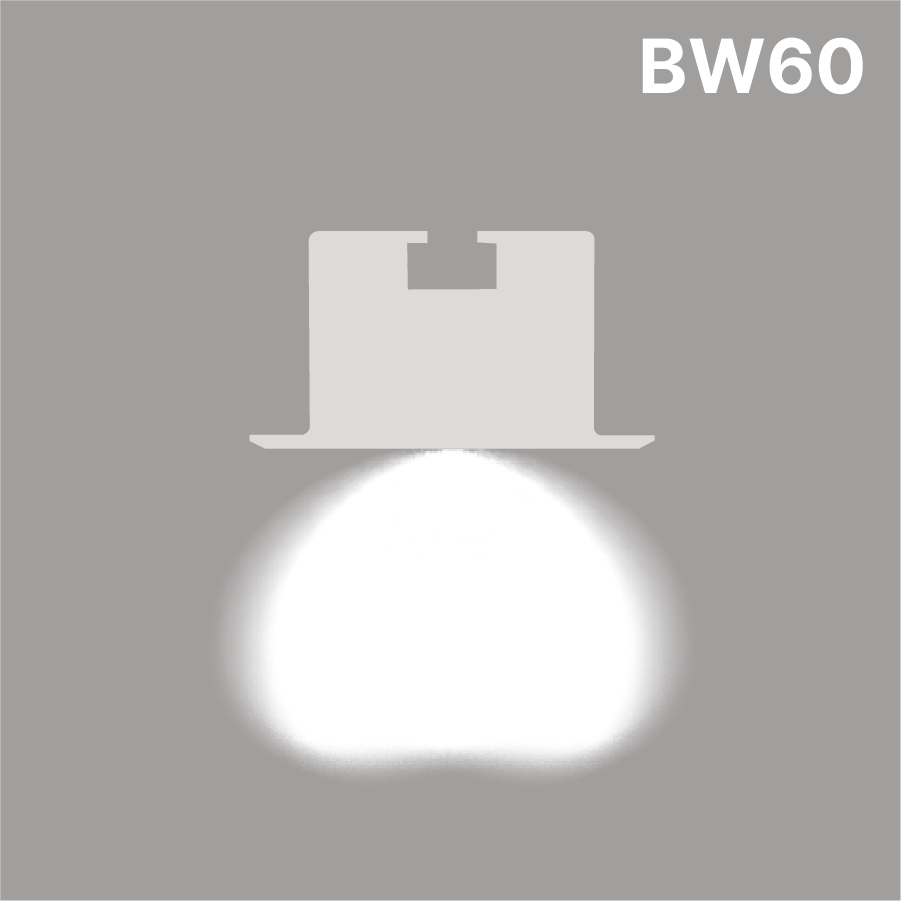

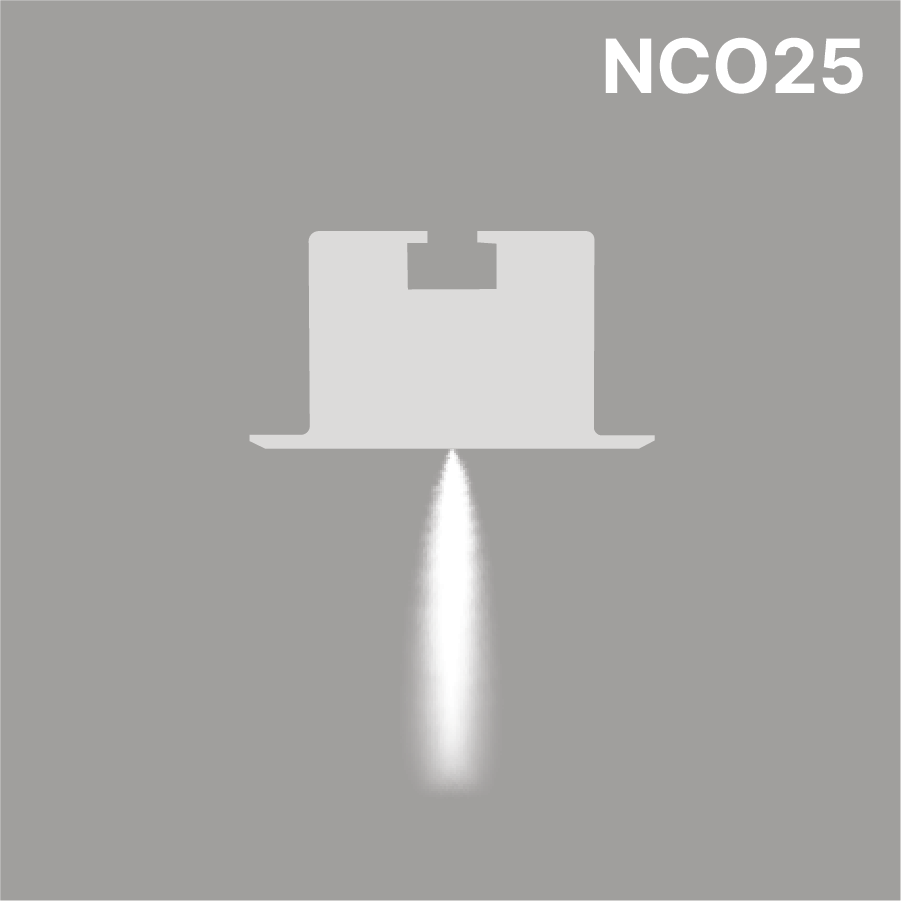

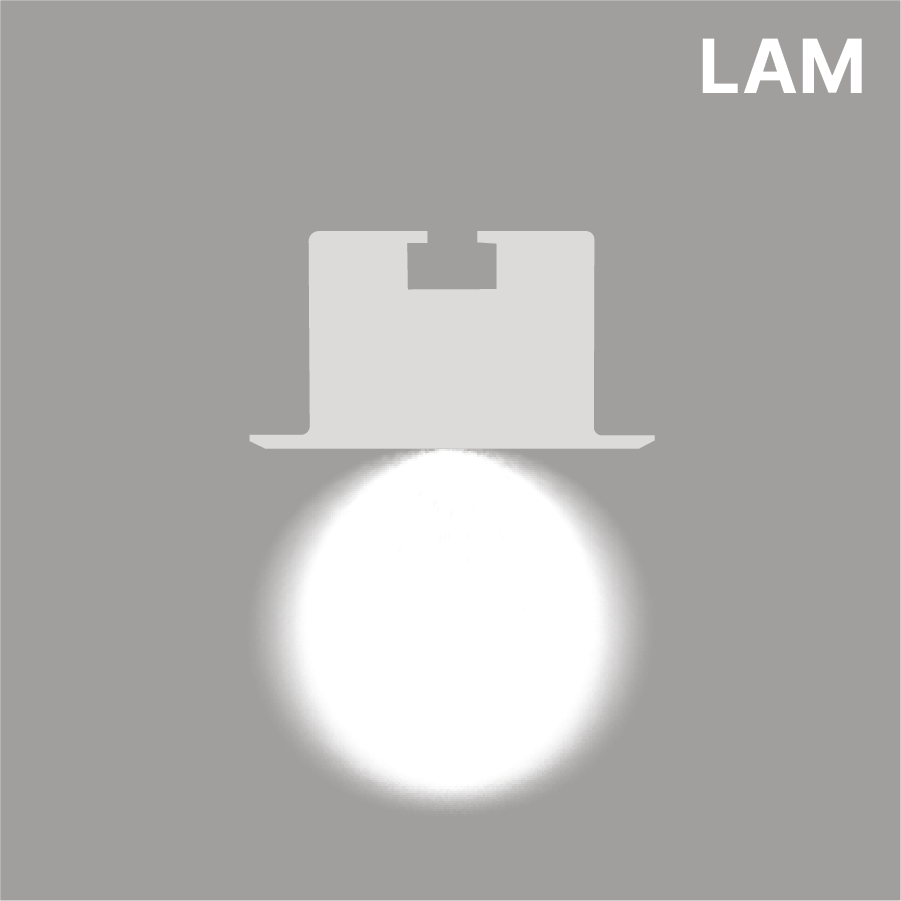

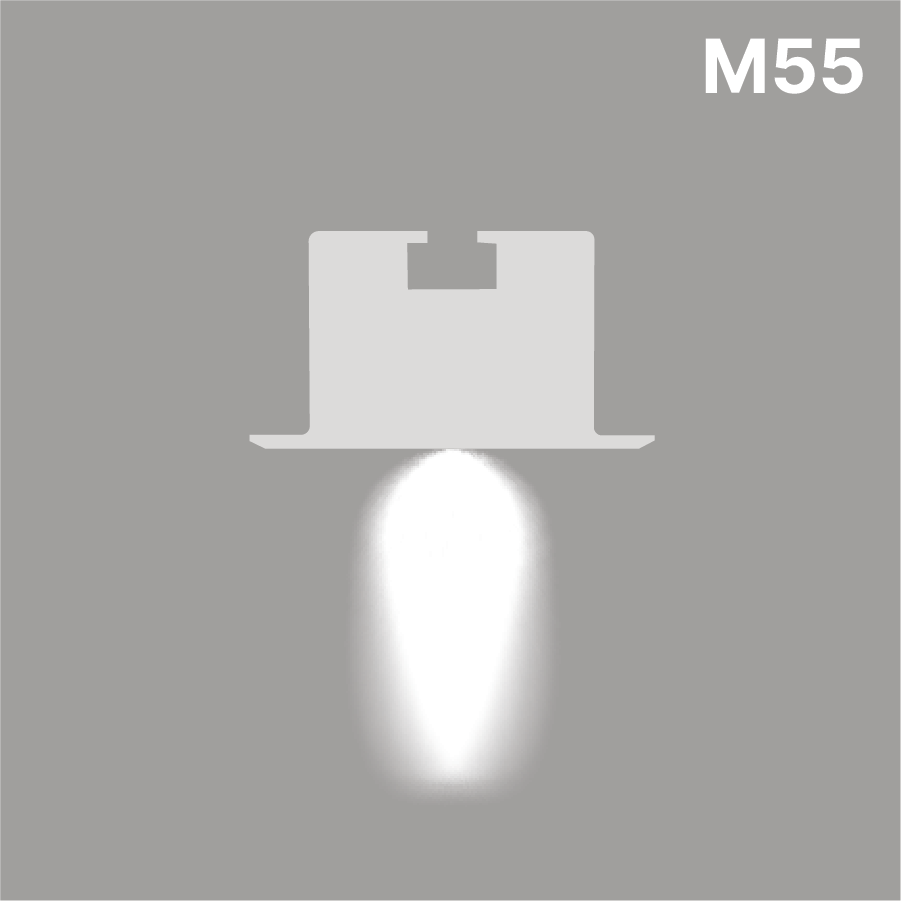

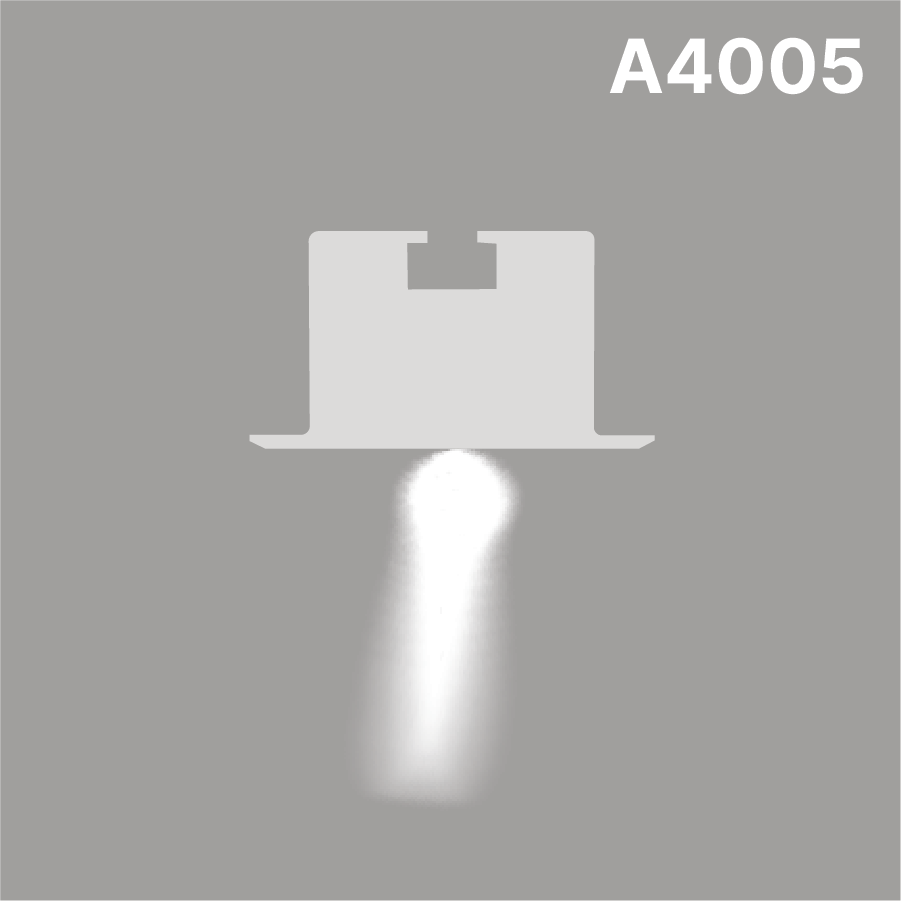

| Beam Distribution | |
| Driver | |
| Advanced Technology |
