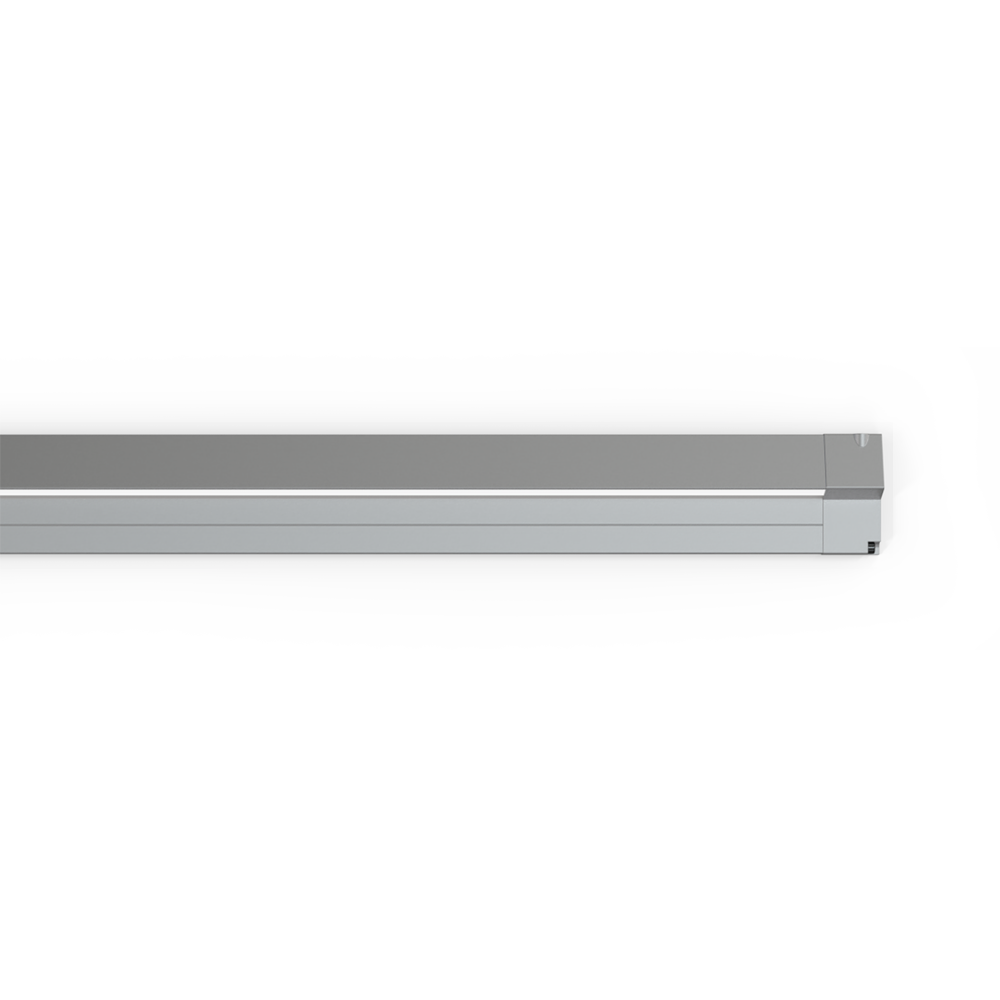

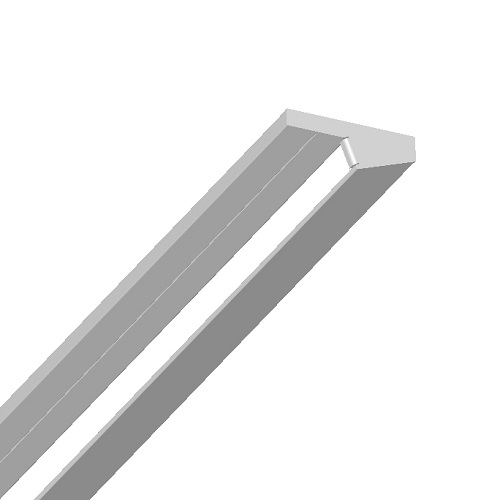

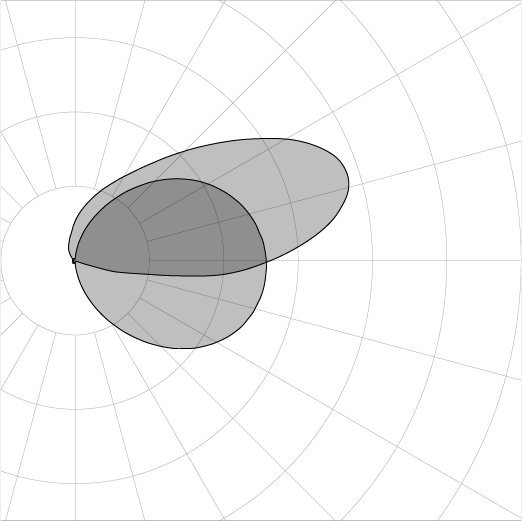

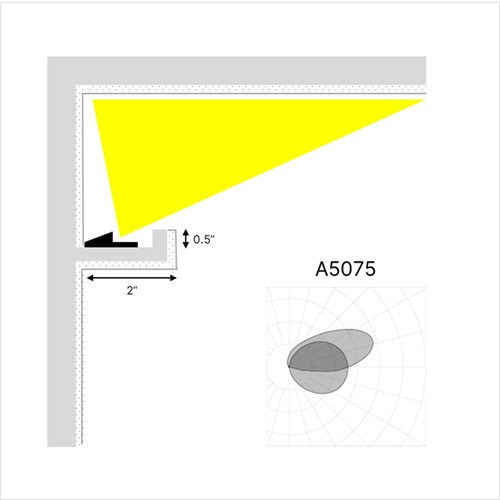

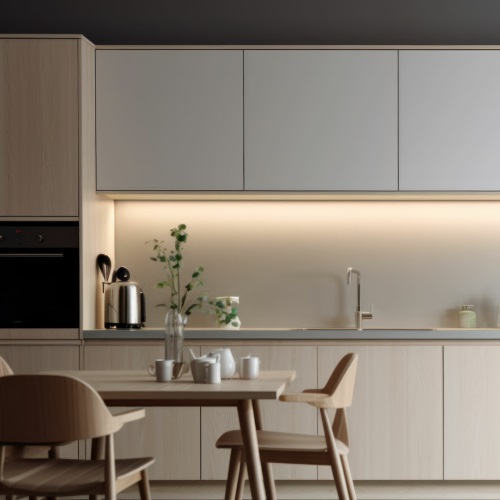

The MICROWedge140 is part of the innovative MICRO family of ultra-slim and compact LED linear products providing best-in-class efficiency and beam control options. The MICROWedge is designed for surface mounting and provides a specification-grade asymmetric beam with high lumen per foot, high CRI, and circadian options. MICROWedge uses engineered light engines coupled with TIR and diffusion optics with fully customizable choices for lumen output, CCT, and CRI. MICROWedge is typically used in cove, perimeter and undercabinet applications that require small form factors and precise off-axis beam distributions.

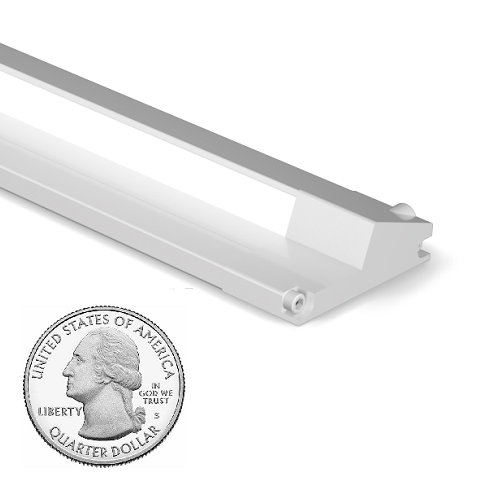

Fixture Dimensions: 1.4″ (W) x 0.5″ (H)
Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
Housing Material
Warranty
Sustainability
1.4″ x 0.5″
Wedge Rail
Drywall and T-Bar
Sheet Metal
1ft, 2ft, 3ft, 4ft, 6ft, 8ft

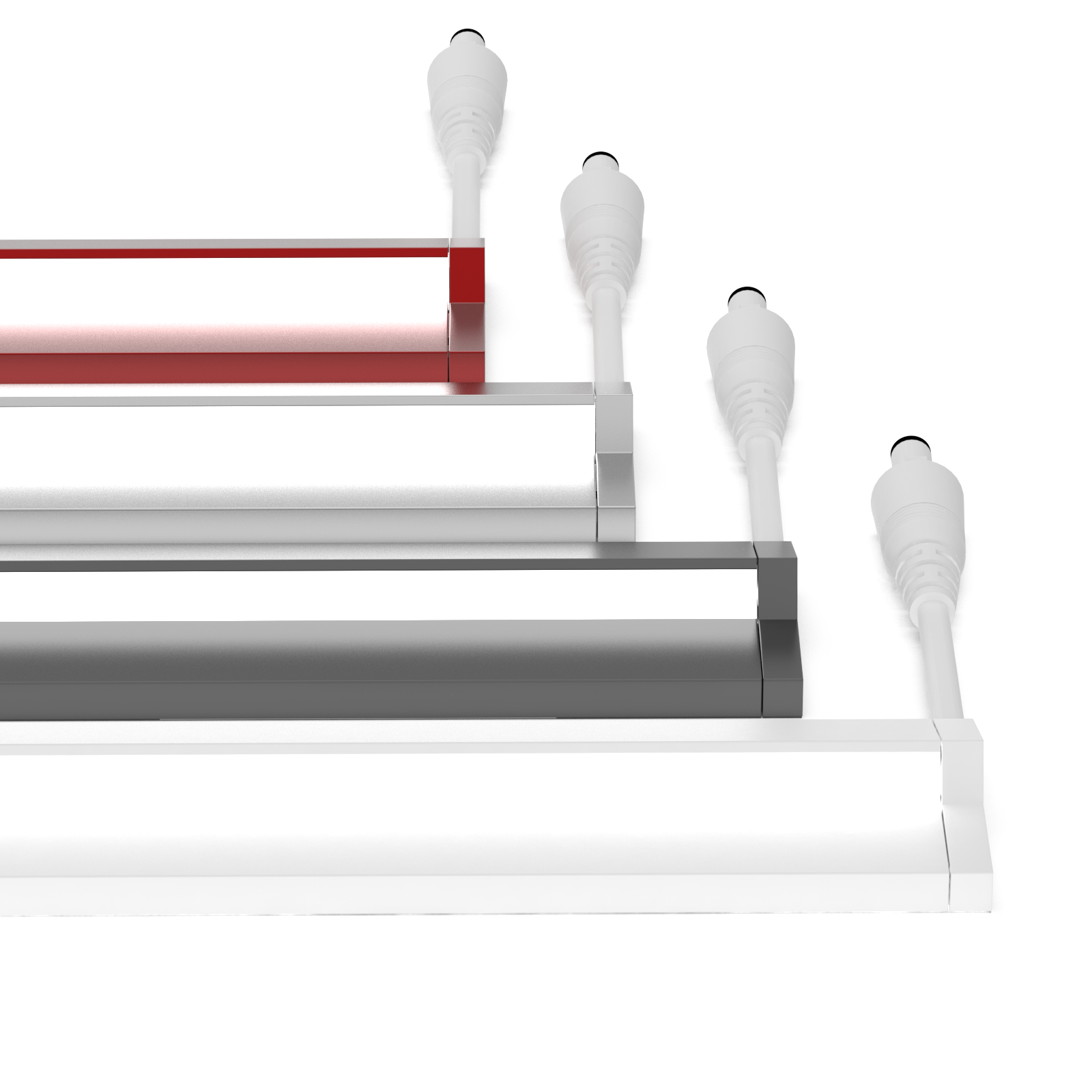

Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices
CRI
CCT
Voltage
Driver Options
Emergency Backup
Compatible Controls Options

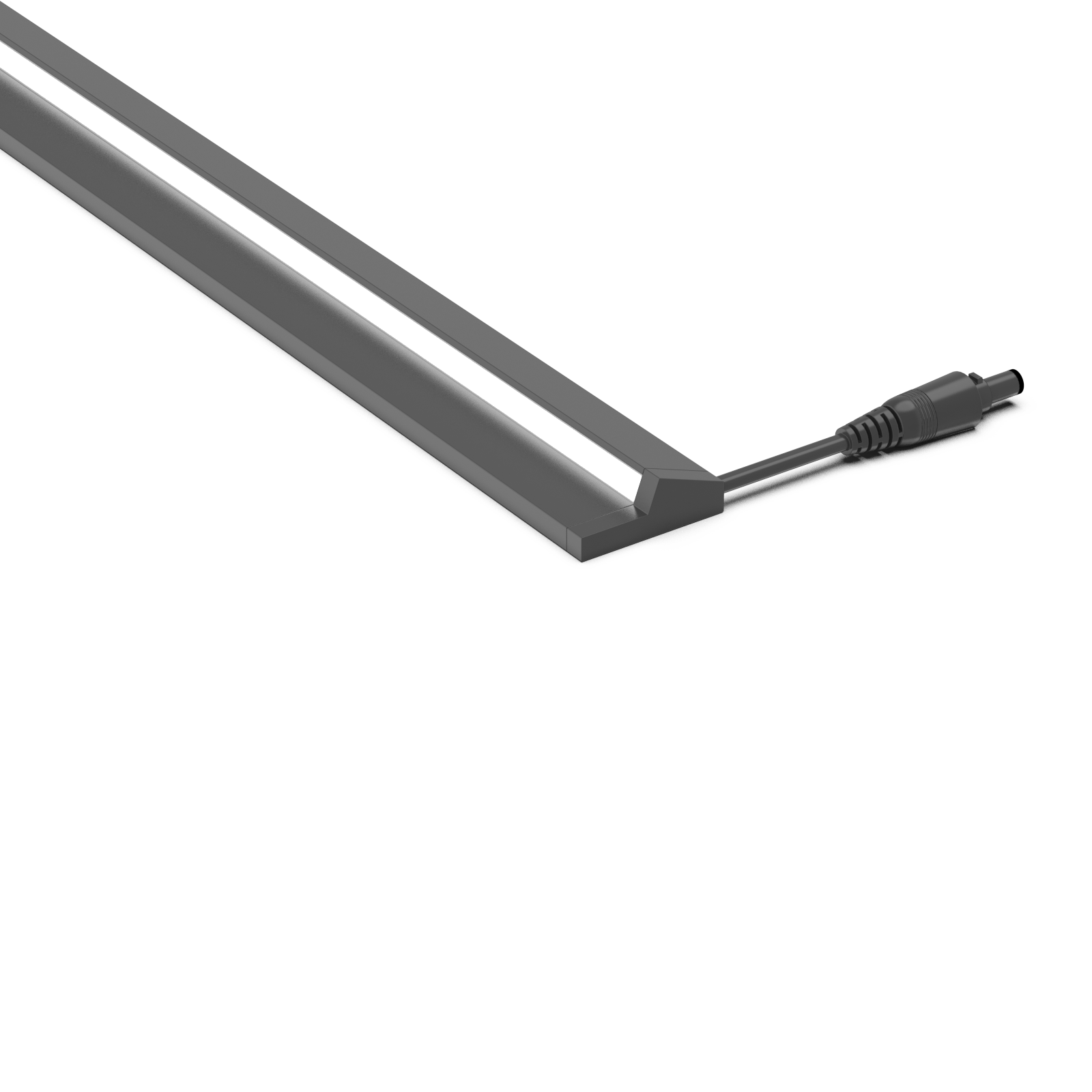

Power Cord
Up to 1,000 Lm/Ft, 150 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm
80/90/95+
2700K to 6500K
120-277 VAC and 347 VAC, 50/60 Hz
Remote
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
12″ and 24″
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
