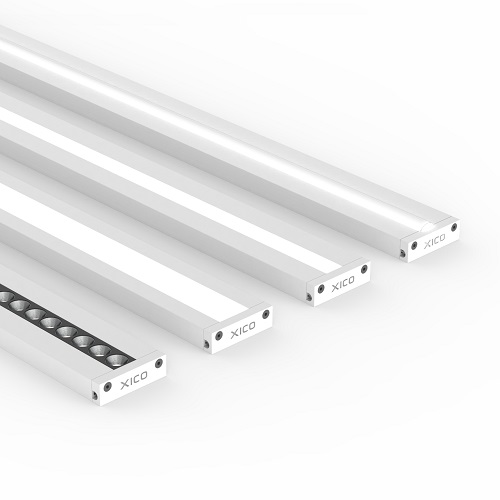

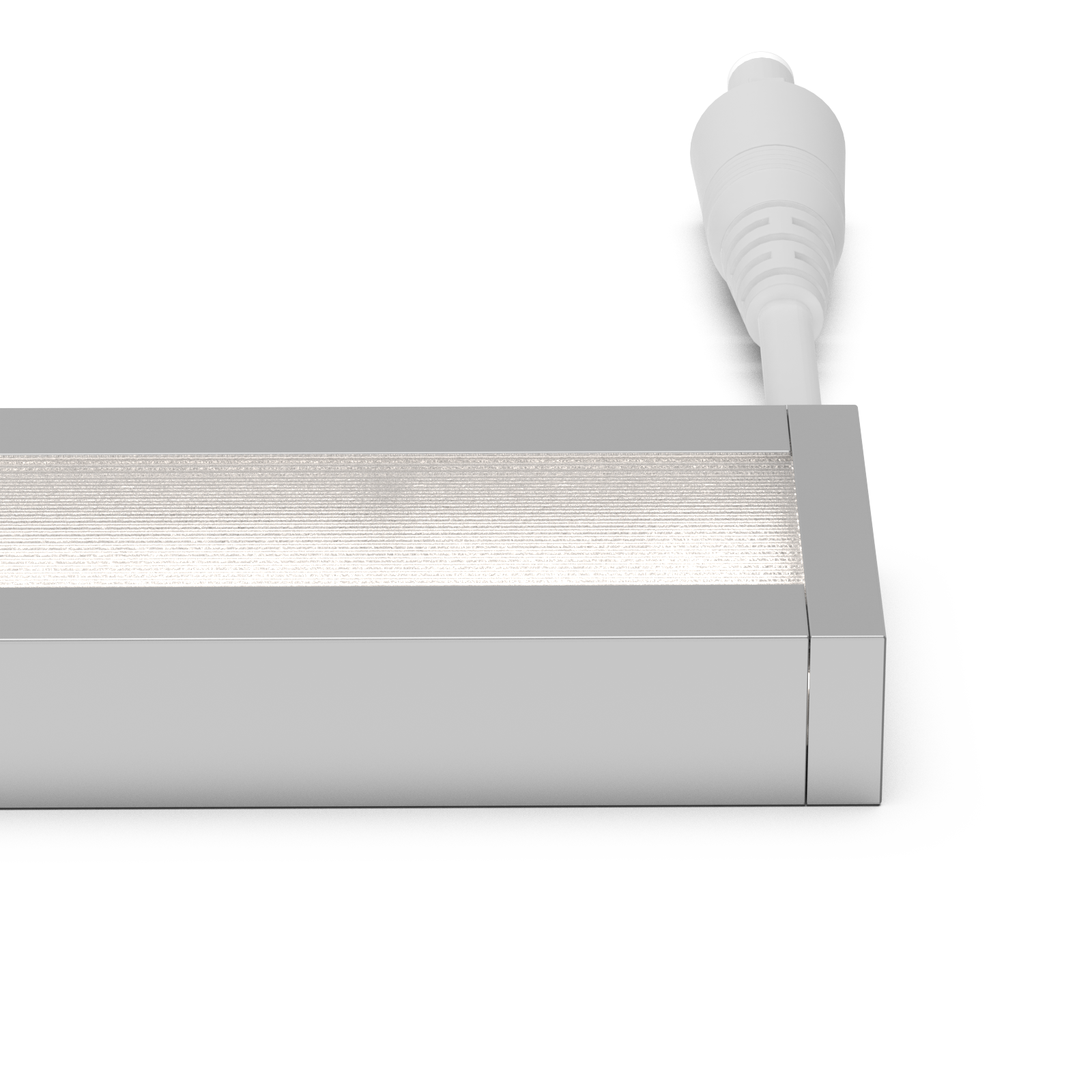

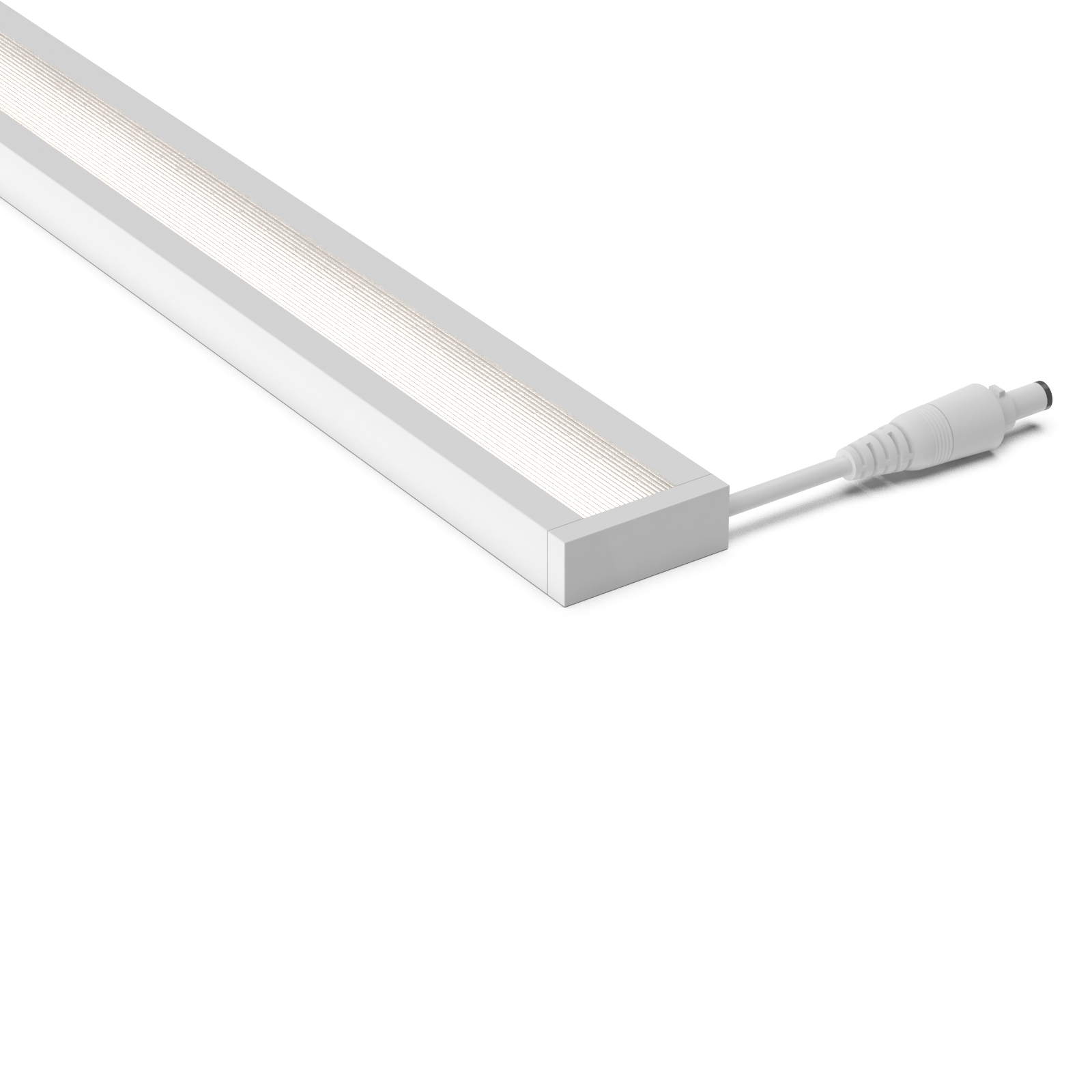

The MICROFlat140 surface-mounted fixture from XICO is an innovative ultra-slim and compact LED linear product providing best-in-class efficiency and beam control options. The MICROFlat140 is designed to be specification-grade with high lumen per foot, high CRI, and circadian options. MICROFlat140 is powered by a high performance LED light engine with fully customizable choices for lumen output, CCT, and CRI. Based upon unique micro-optical technology; a key feature of the MICROFlat140 is that it delivers a wide range of beam distributions while achieving high efficacy, energy-saving performance. MICROFlat140 products are available with a range of accessories and mounting options.
Fixture Dimensions: 1.40″ (W) x 0.75″ (H)
Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
Housing Material
Warranty
Sustainability
1.4″ x 0.5″
Surface

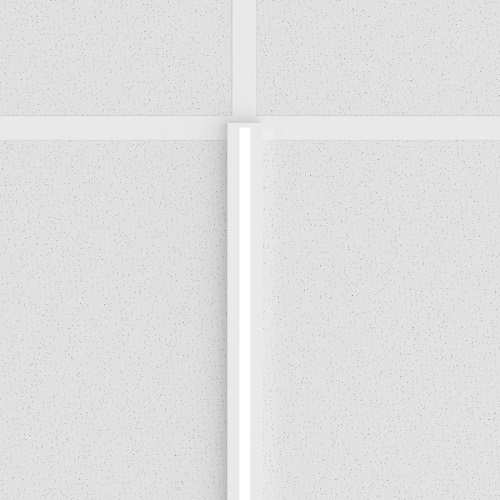

Surface and T-Bar
Sheet Metal
1ft, 2ft, 3ft, 4ft, 6ft, 8ft
Powder Coated & Anodized
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices

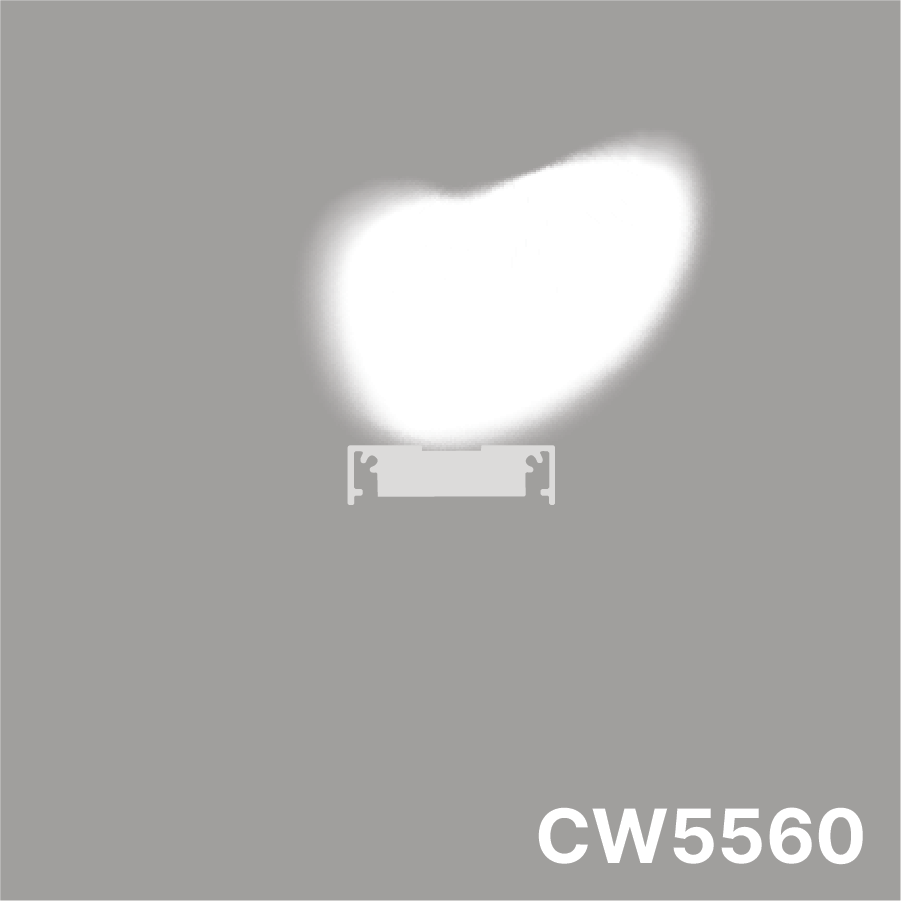

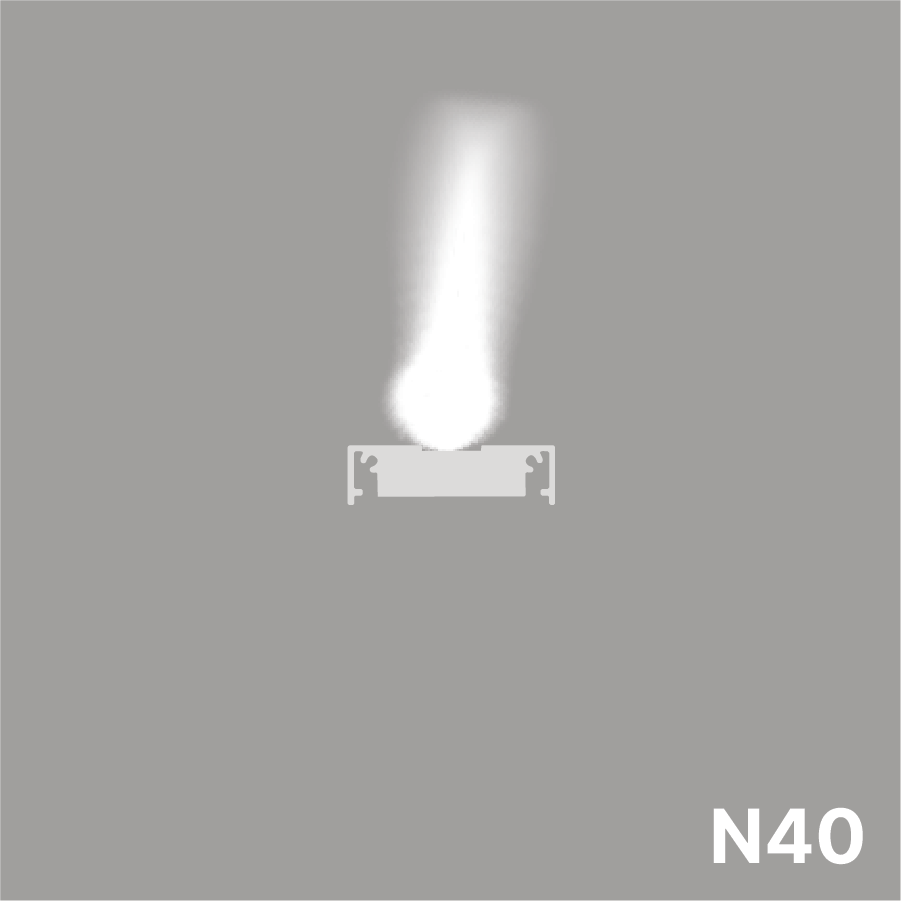

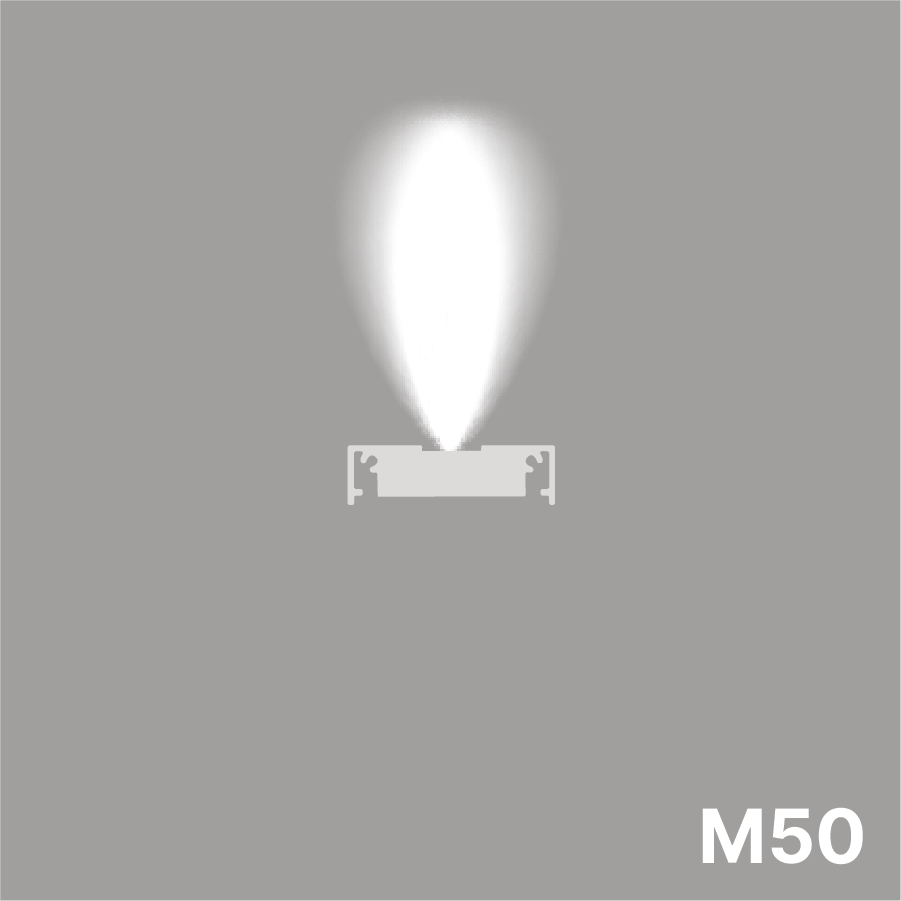

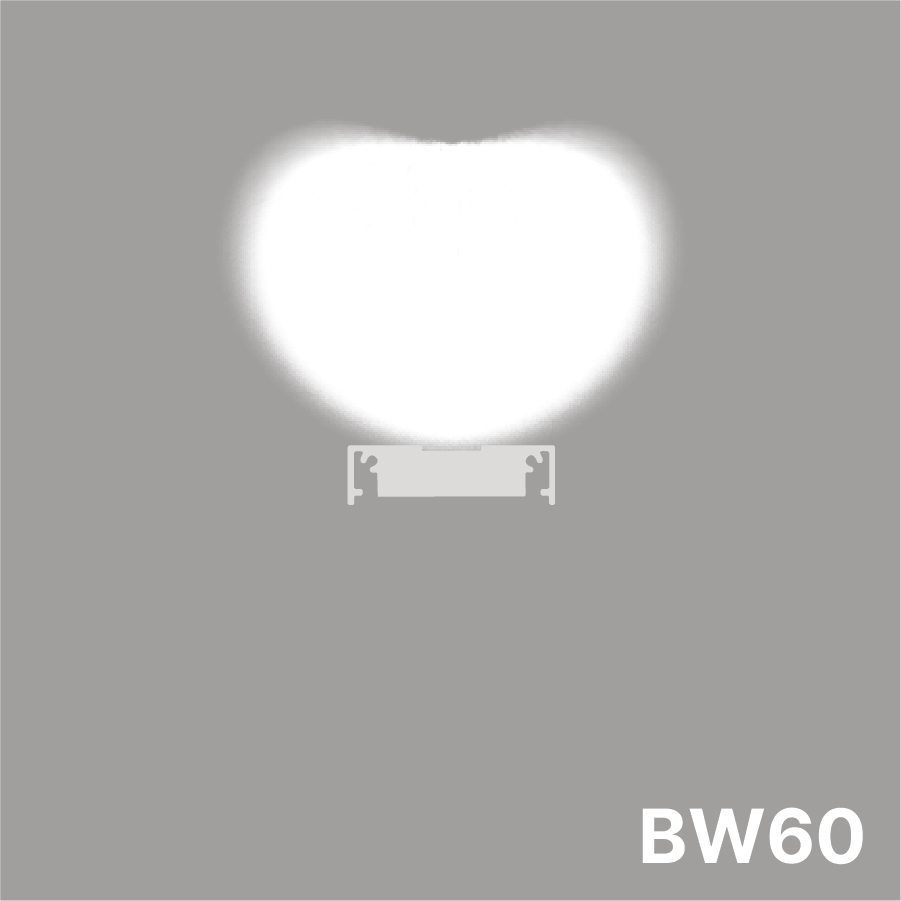

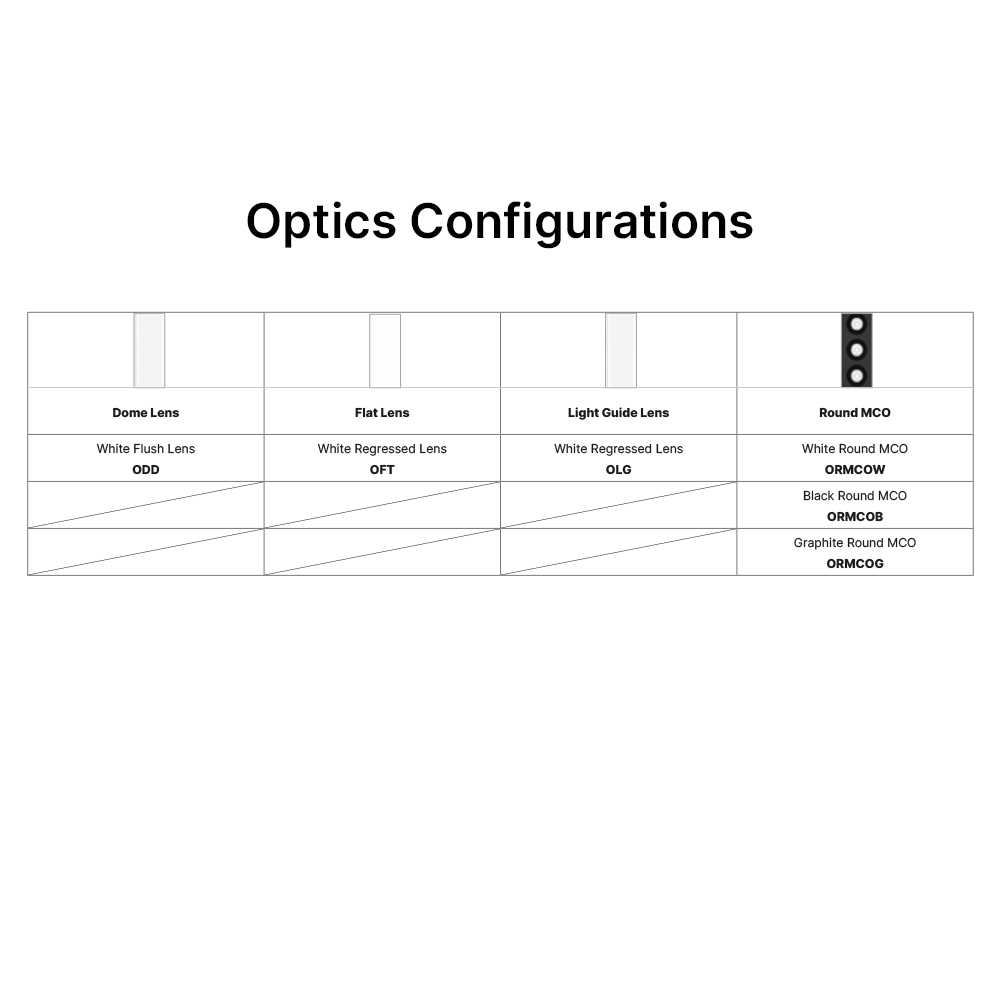

Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Power Cord
Up to 1,000 Lm/Ft, 150 Lm/W Efficacy
Static, Tunable, White, & Dim-to-Warm

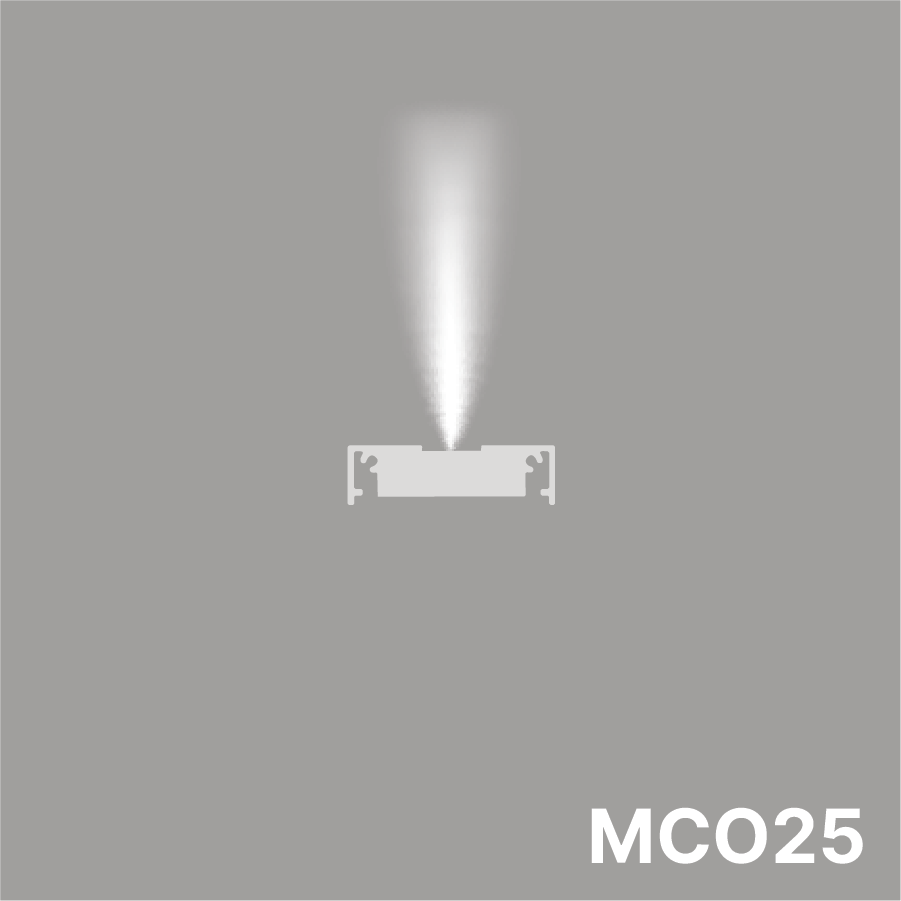

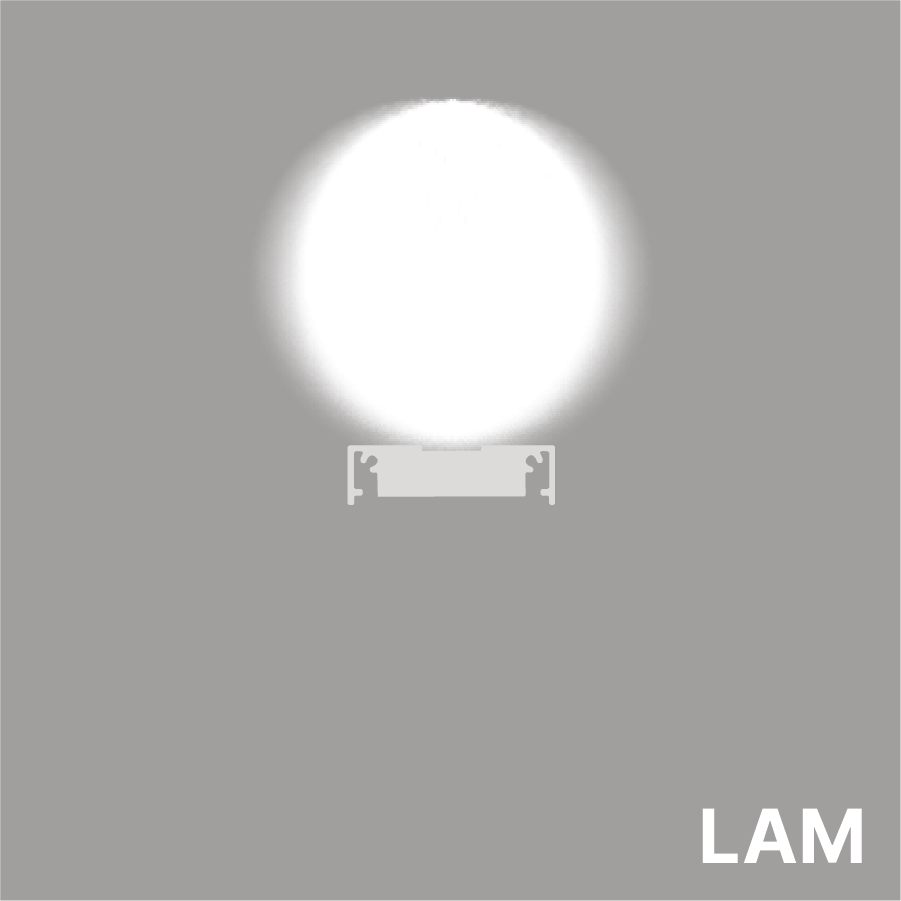

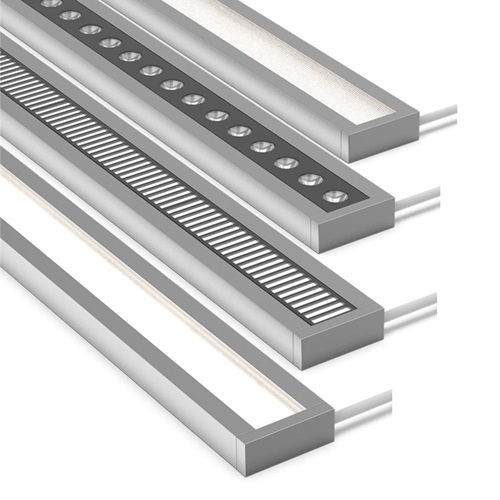

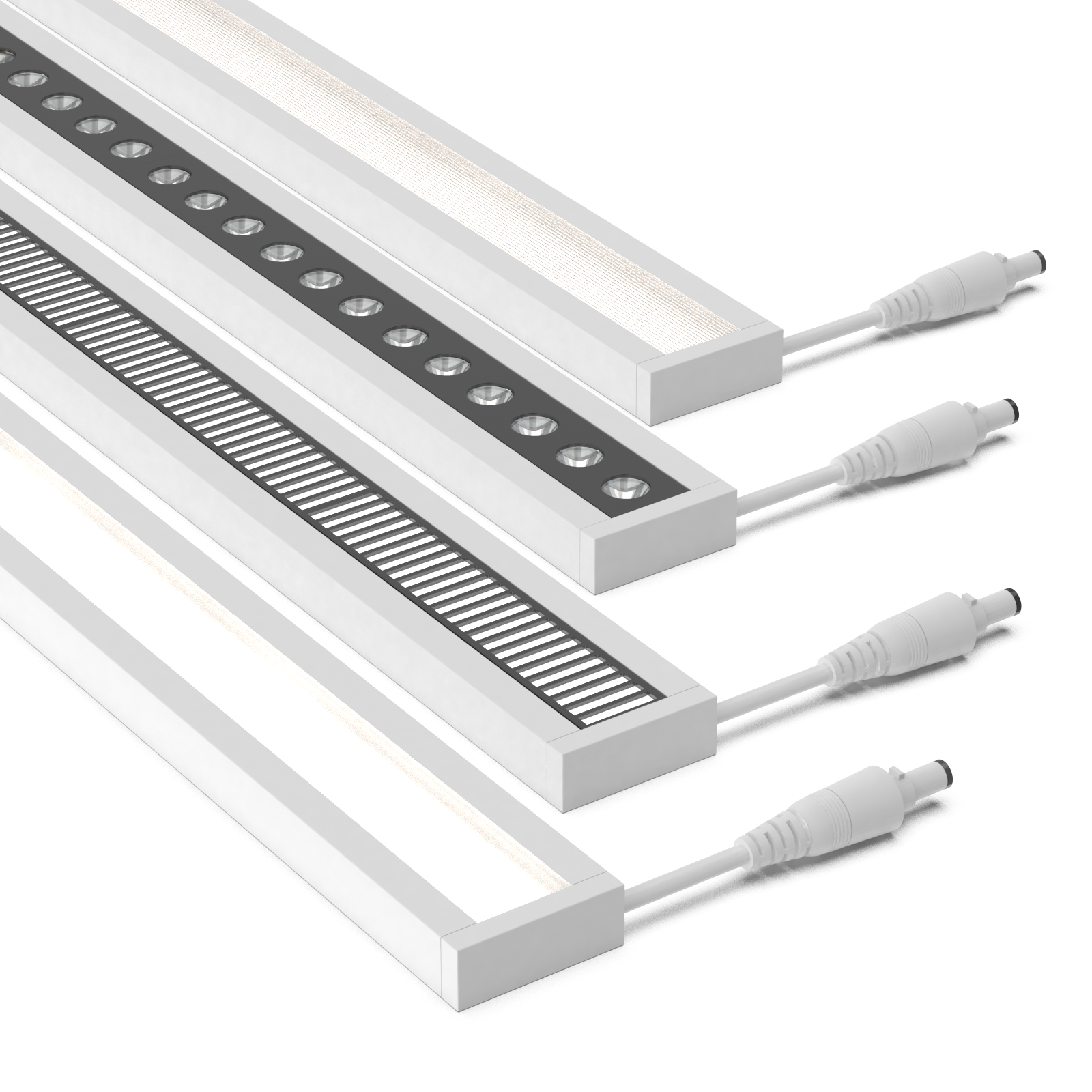

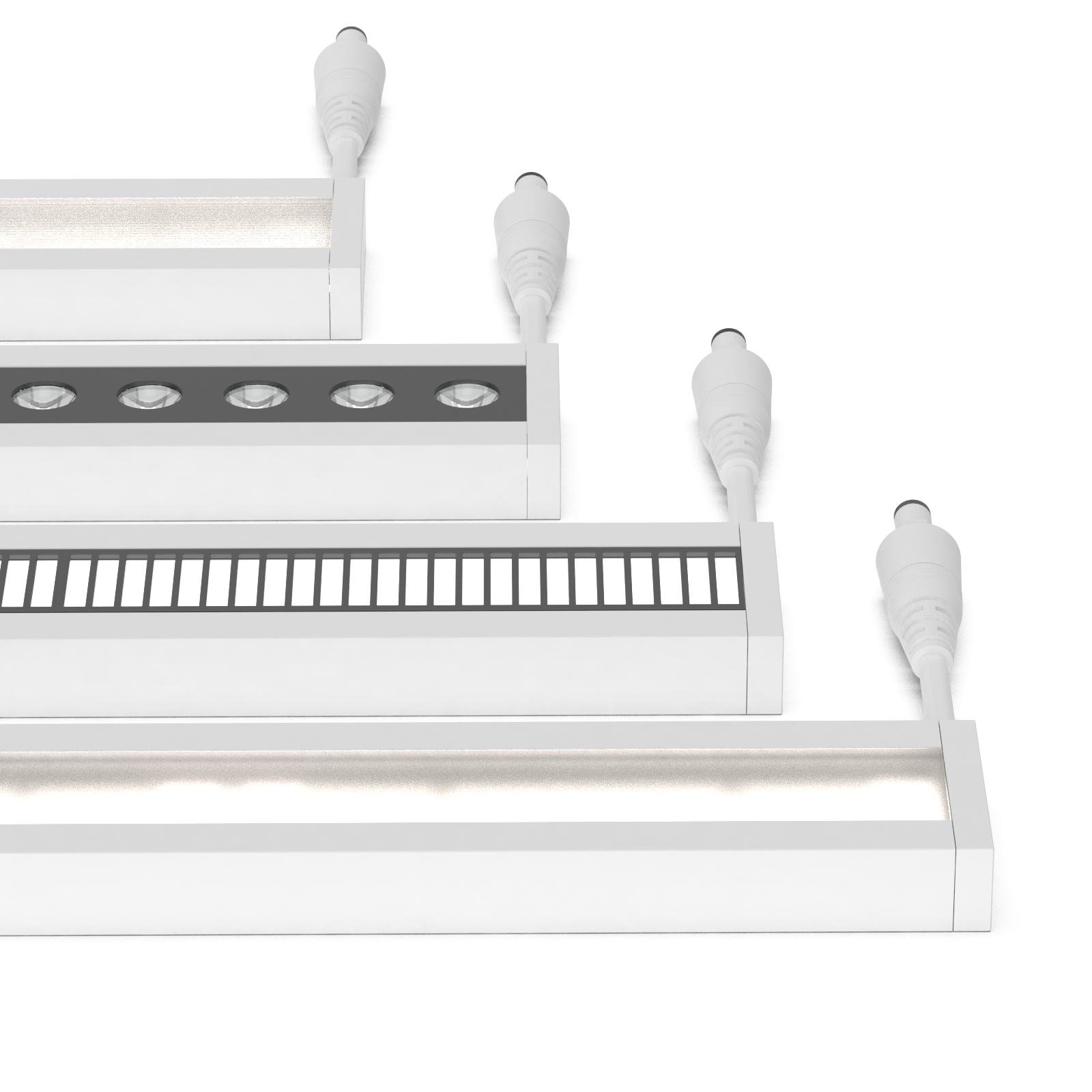

Flat, Dome, Light Guide & MCO
80/90/95+
2700K to 6500K
Direct
120-277 VAC and 347 VAC, 50/60 Hz
Remote
Emergency Circuit & Emergency Battery
Lutron, Casambi & Cooper
24″
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
Waltham High School Project Name: Waltham High School Location: Waltham, MA Xico Products NANOSlot EDGESolo275 Recessed EDGESlot4 GRIDSlot4 MICROBeam Wall MICROSlot PROBeam2 Surface PROBeam2 Pendant PROSquare3 Surface PROBeam4 Pendant PROBeam4 Recessed Project Team Architect Firm: Symmes, Maini & McKee Associates Lighting Designer: Horton Lees Brogden Lighting Design

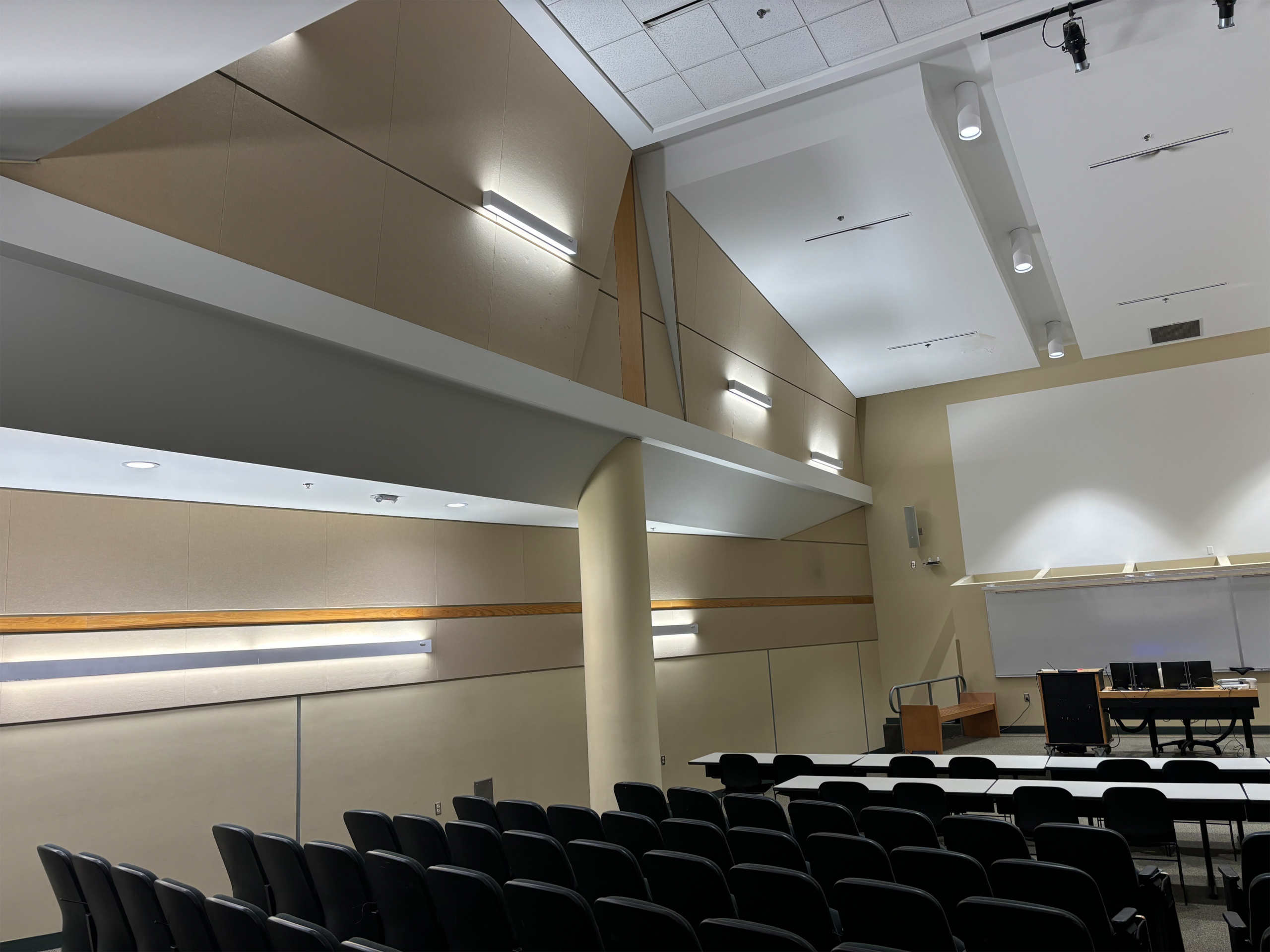

University of Nebraska Project Name: University of Nebraska Location: Lincoln, NE Xico Products PROBeam3 Wall MICROSquare Wall Project Team Architect Firm: Lighting Designer:

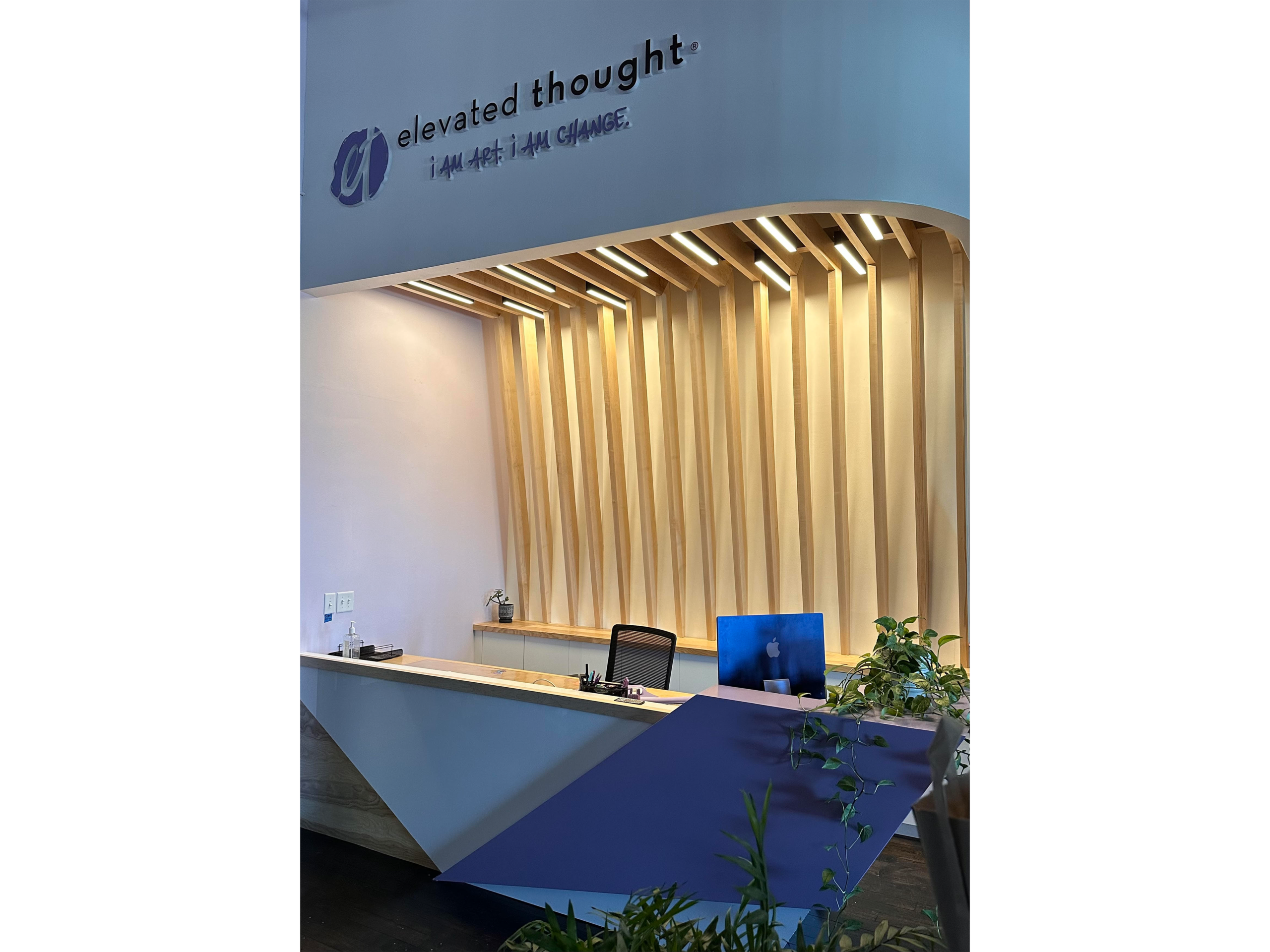

Elevated Thought Lawrence Project Name: Elevated Thought Lawrence Location: Lawrence, MA Xico Products MICROBeam Pendant Project Team Architect Firm: Lighting Designer:

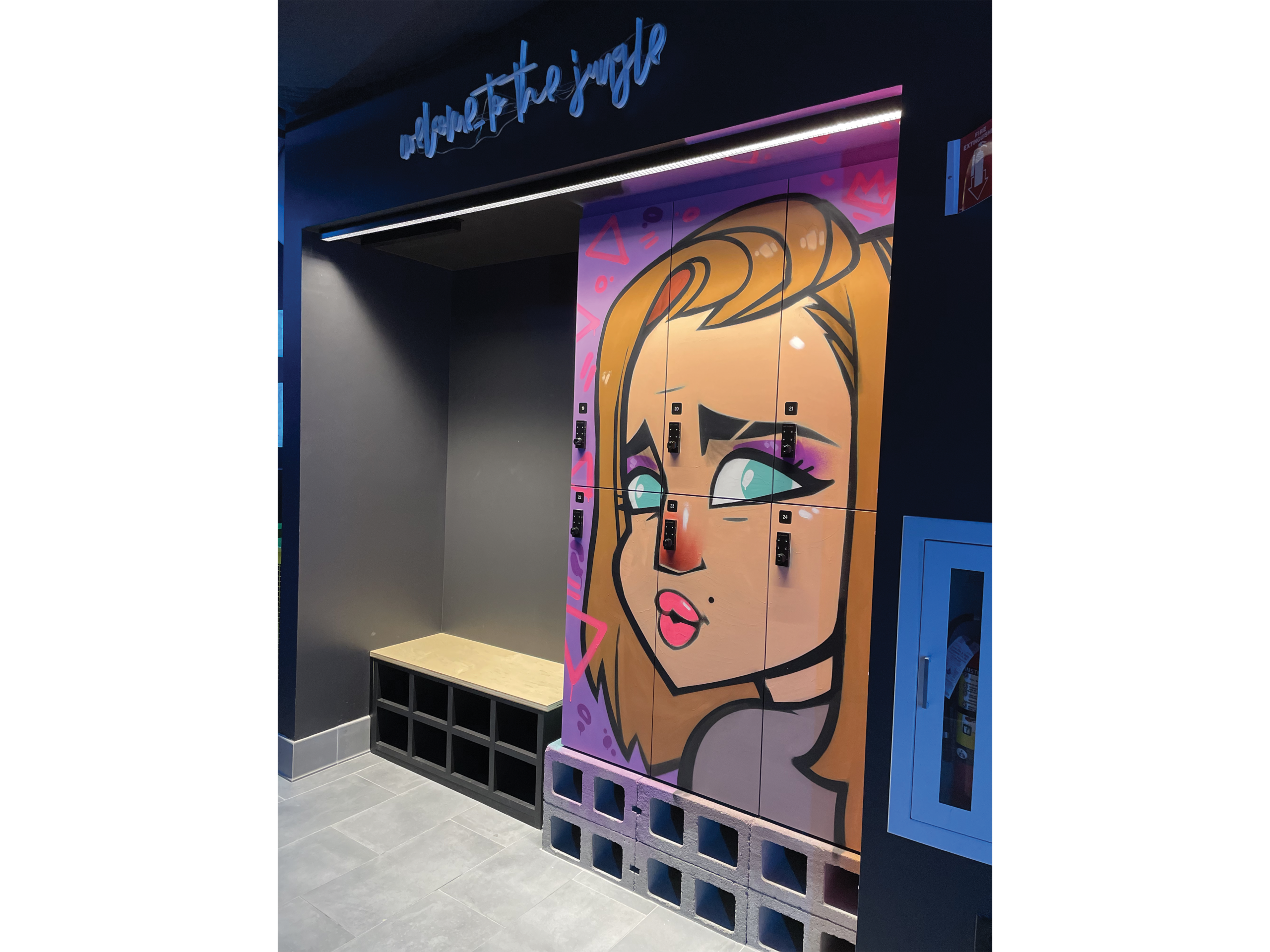

B/SPOKE Cycling Project Name: B/SPOKE Cycling Location: Boston, MA Xico Products MICROSquare Surface Project Team Architect Firm: Lighting Designer:

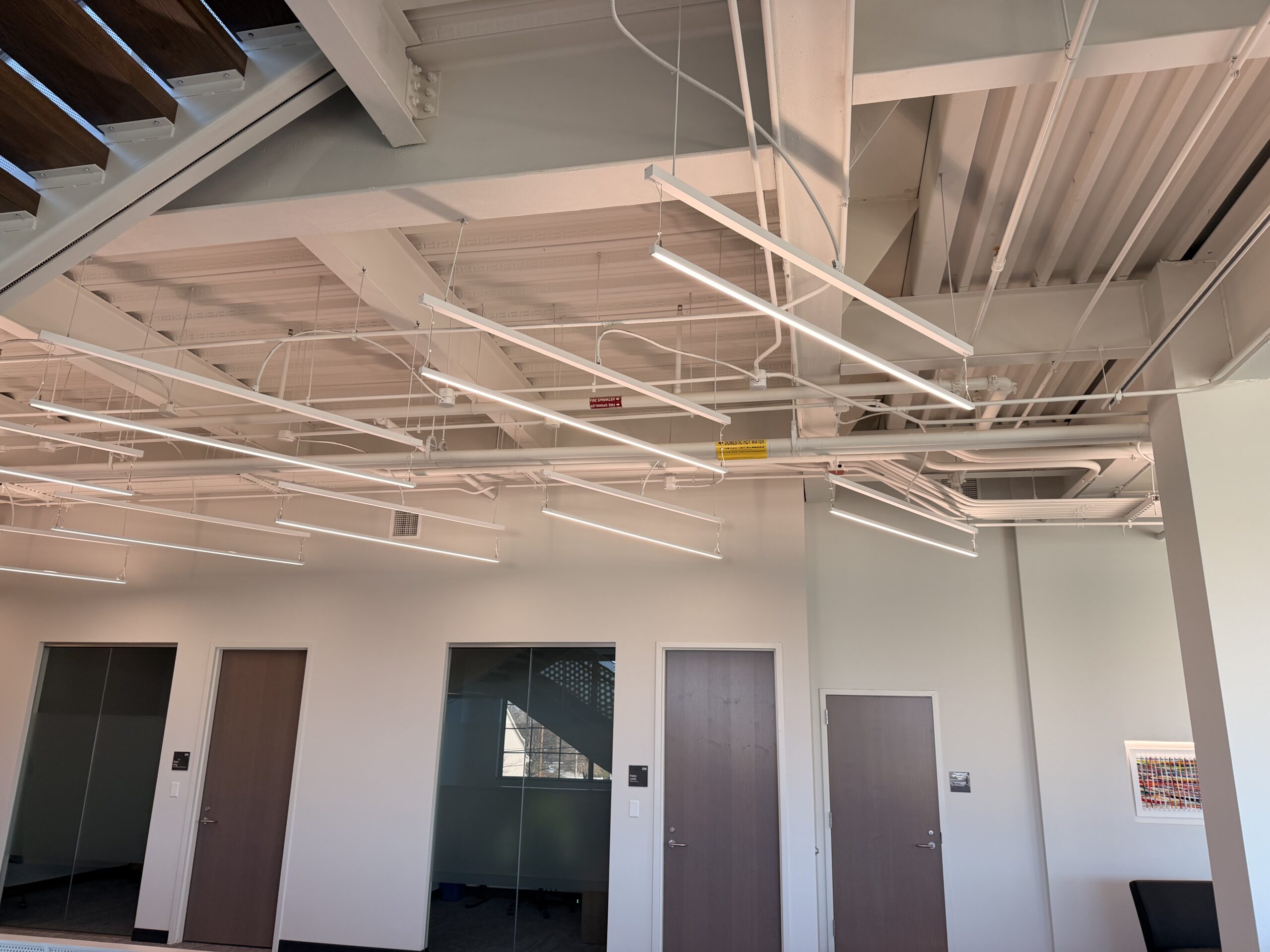

Ann Beha Architects Office Project Name: Ann Beha Architects Office Location: Boston, MA Xico Products EDGESolo275 Pendant GRIDSlot4 Recessed Project Team Architect Firm: Lighting Designer:
