EDGERail140

EDGE Series

Control & Performance with Light Guides

Description

Product Code: ERA140

1.4″ x 3/8″ Low-Profile Linear LED Rail

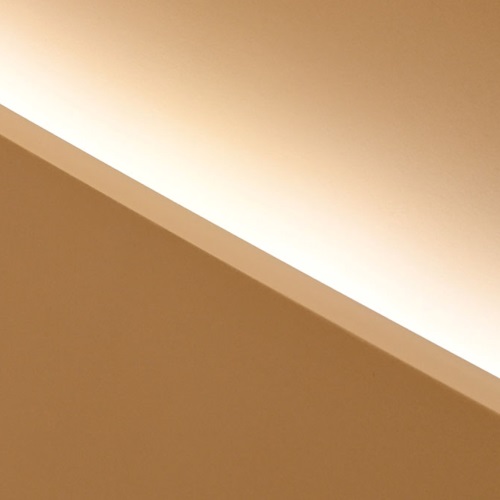

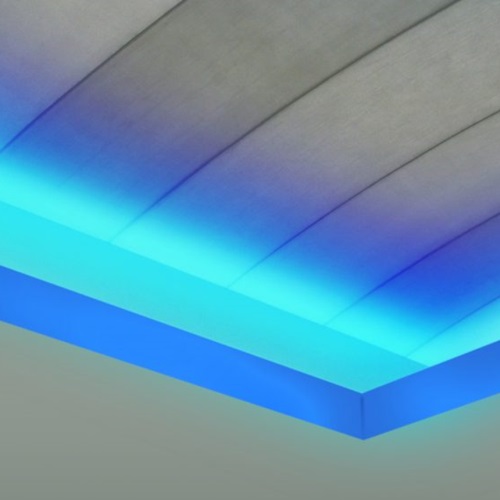

The EDGERail140 is the industry’s best linear, high performance and slim indirect luminaire for cove, undercabinet and hidden accent lighting. EDGERail140 is based on patented single edge-lit waveguide technology and provides a choice of lambertian, symmetric and asymmetric light distributions with an overall optical efficiency of over 90%. At only 3/8″ tall, the EDGERail140 is an ultra-low profile surface mount LED rail providing a range of lumen outputs up to 1000 lumens per foot, a range of color temperature, and 2.5 step macadam ellipse color quality. EDGERail140 can also be provided with dim-to-warm and tunable white options and can be controlled by either 0-10V or TRIAC dimming.

Fixture Dimensions: 1.4″ (W) x 0.375″ (H)

Features & Benefits

Edge-lit light guide technology with choice of optics
Fusion Optix® Inside with SmartBeam® technology
Patented EDGETek® light guide innovations
Additional MICROTek® and FLATLens® Optics
Symmetric & asymmetric lighting distributions
Best-in-class efficiency and color quality
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi

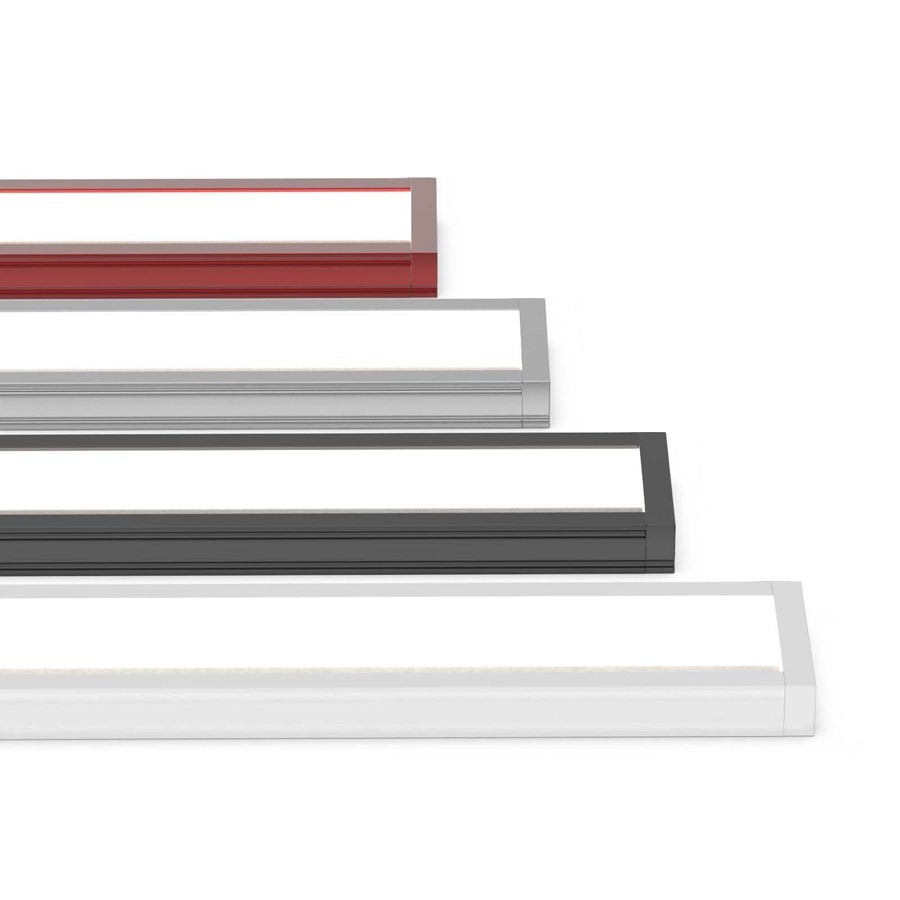

Choice of finishes and customization options

Certifications

UL/ETL Listed
Declare listed and Red List Free
RoHS Compliant
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
BIOS Certified Partner
5-Year Factory Warranty

Files & Downloads

Specification Guide

Static White

Photometrics

IES Files

Design & Install

Installation Instructions

Revit Files

Tech Drawings

Sustainability

Declare Label

BABAA Compliance

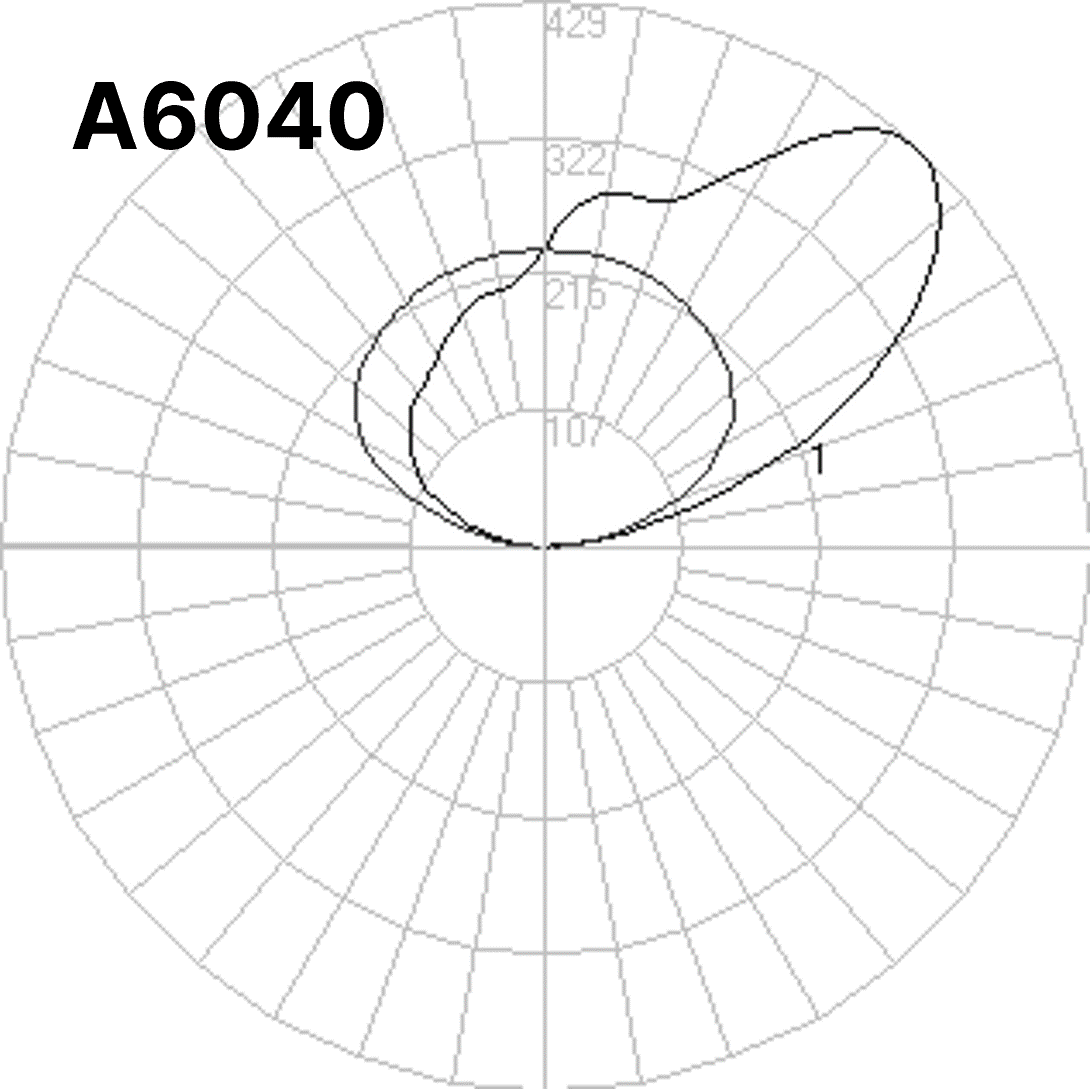

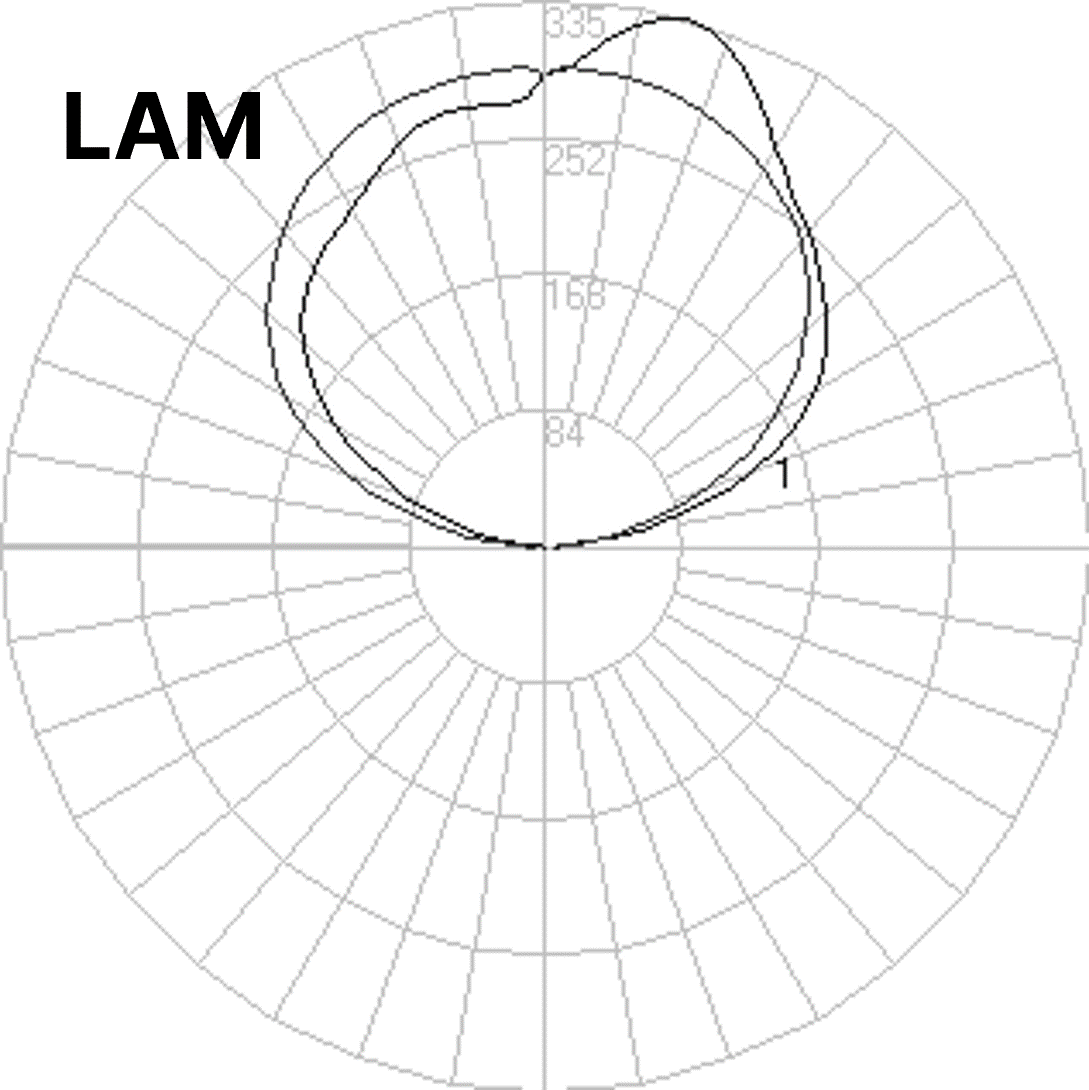

SmartBeam® Choices

Direct

Technical Specifications

Dimensions

Mounting Style

Mounting Types

Mounting Brackets

Standard Lengths

Finish

Housing Material

Warranty

Sustainability

1.4″ x 0.375″

Surface

Surface Mount

Sheet Metal

1ft, 2ft, 4ft, 6ft, 8ft

Powder Coated & Anodized

Extruded, Recycled Aluminum

5-Year Warranty

Declare Listed and Red List Free

LED Performance

LED Choices

Optics Choices

CRI

CCT

Lighting Configurations

Voltage

Driver Options

Emergency Backup

Compatible Controls Options

Up to 1,000 Lm/Ft, 150 Lm/W Efficacy

Static, Tunable, White, & Dim-to-Warm

FlatLens, EdgeTEK, Cosine Lens Optics

80/90/95+

2700K to 6500K

Direct Only

120-277 VAC and 347 VAC, 50/60 Hz

Remote

Emergency Circuit & Emergency Battery

Lutron, Casambi & Cooper

Sustainability

XICO_IMG_Hand_with_EDGERazor_Pendant_500x500

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

EDGE Series Declare Listing
