NANO Series

Precision Light in Sub 1" Aperture


Request Information

Product Code: NRA95

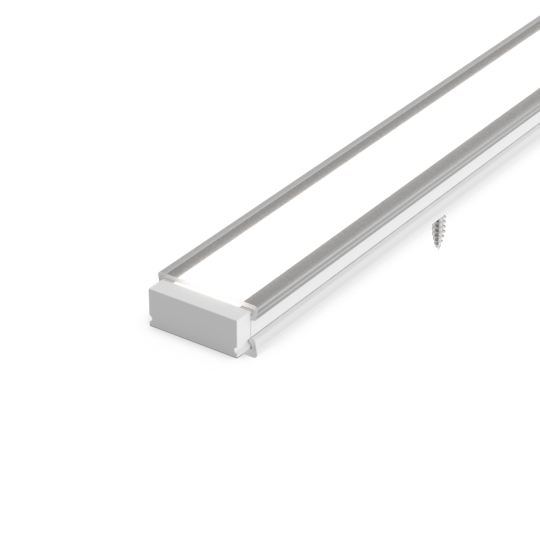

0.95″ x 0.375″ Low-Profile Linear LED Rail

The NANORail is the industry’s smallest linear, high performance and slim indirect luminaire for cove, undercabinet and hidden accent lighting. NANORail is based on patented Cosine optics and Flatlens technology and provides a choice of lambertian, symmetric and asymmetric light distributions with an overall optical efficiency of over 90%. At less than 1″ wide and 3/8″ tall, the NANORail is an ultra-compact, low profile surface mount LED rail providing a range of lumen outputs up to 1000 lumens per foot, a range of color temperature, and 2.5 step macadam ellipse color quality. NANORail can also be provided with dim-to-warm and tunable white options and can be controlled by either 0-10V or TRIAC dimming.

Fixture Dimensions: 0.95″ (W) x 0.375″ (H)

Features & Benefits

  • High performance, small form factor LED light

  • SmartBeam® technology by Fusion Optix®

  • Symmetric & asymmetric lighting distributions

  • Best-in-class efficiency for indirect and direct lighting

  • LED choices: >90 CRI, Sunlight and RGB/RGBW

  • White LED color fidelity of 2.5 Step MacAdam ellipse

  • 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm

  • Choice of factory selected, Lutron or Eldoled drivers

  • Controls include; Lutron, Cooper, Casambi

  • Choice of powder coated and anodized finishes


  • Declare listed and Red List Free

  • RoHS Compliant

  • Designed & Built in Boston MA

  • BABAA Compliance (Read Statement)

  • BIOS Certified Partner

  • UL/ETL Listed

  • 5-Year Factory Warranty

Files & Downloads

Spec. Guide

Tech Drawings


IES Files

Revit Files

Declare Label

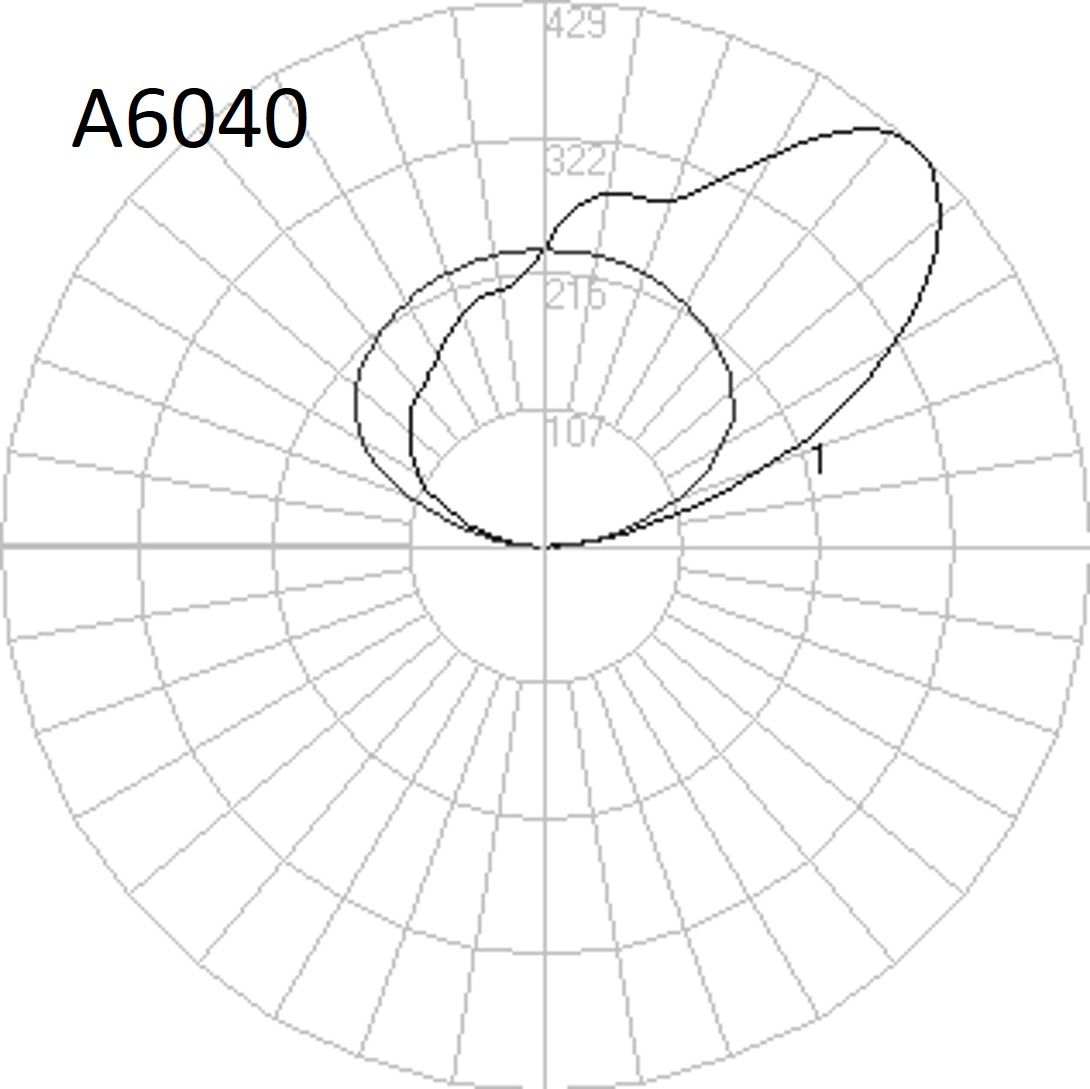

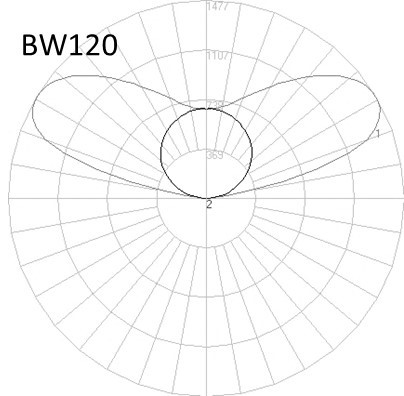

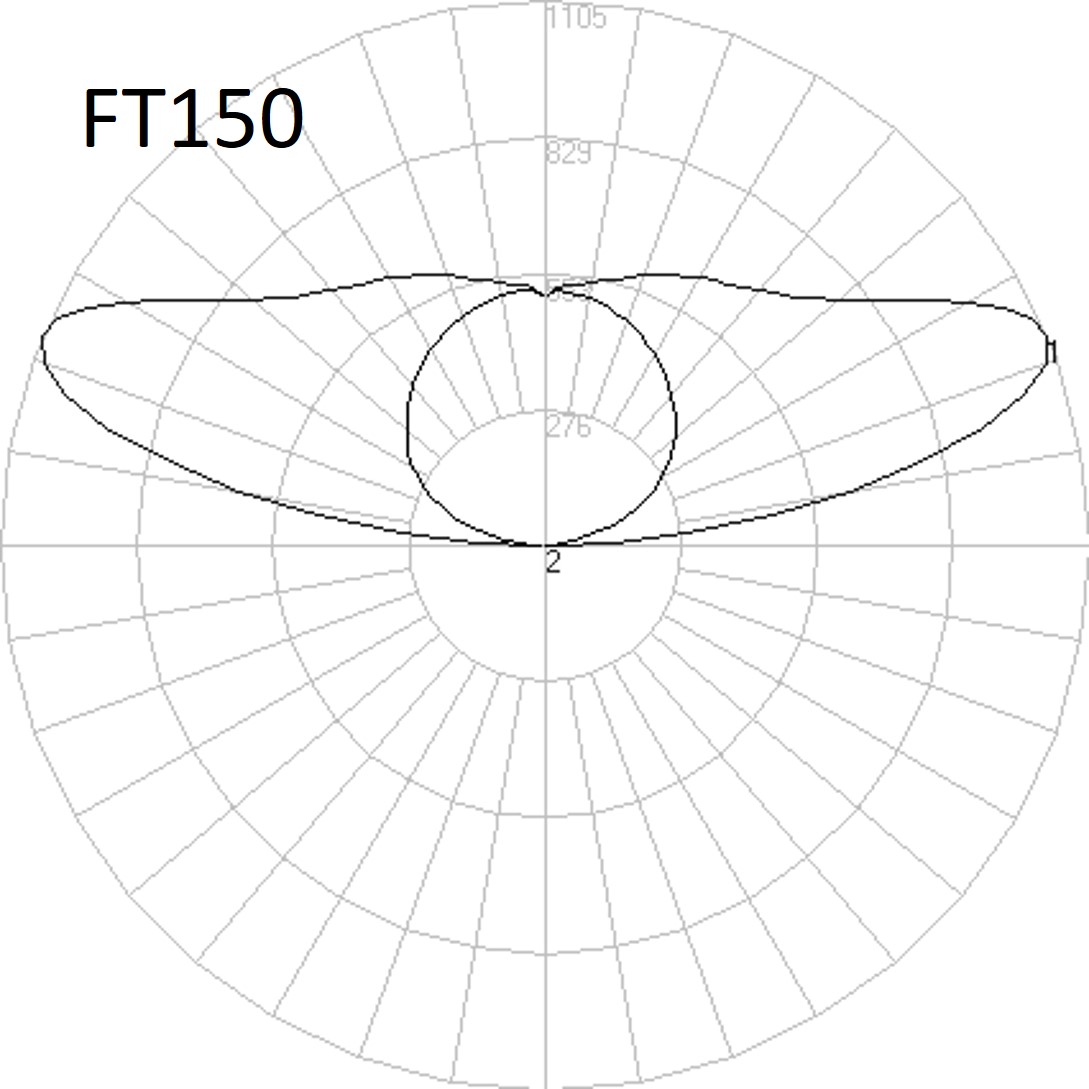

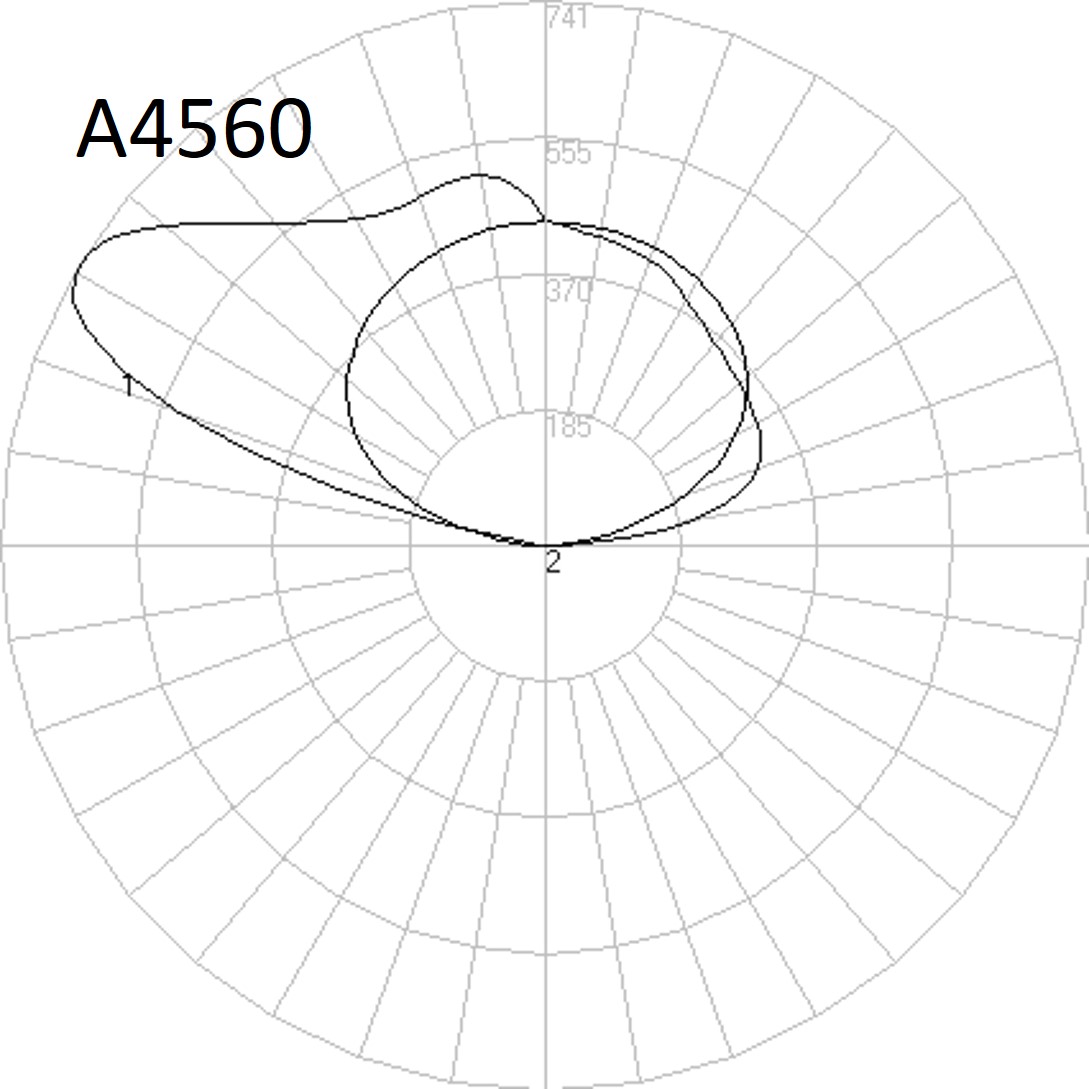

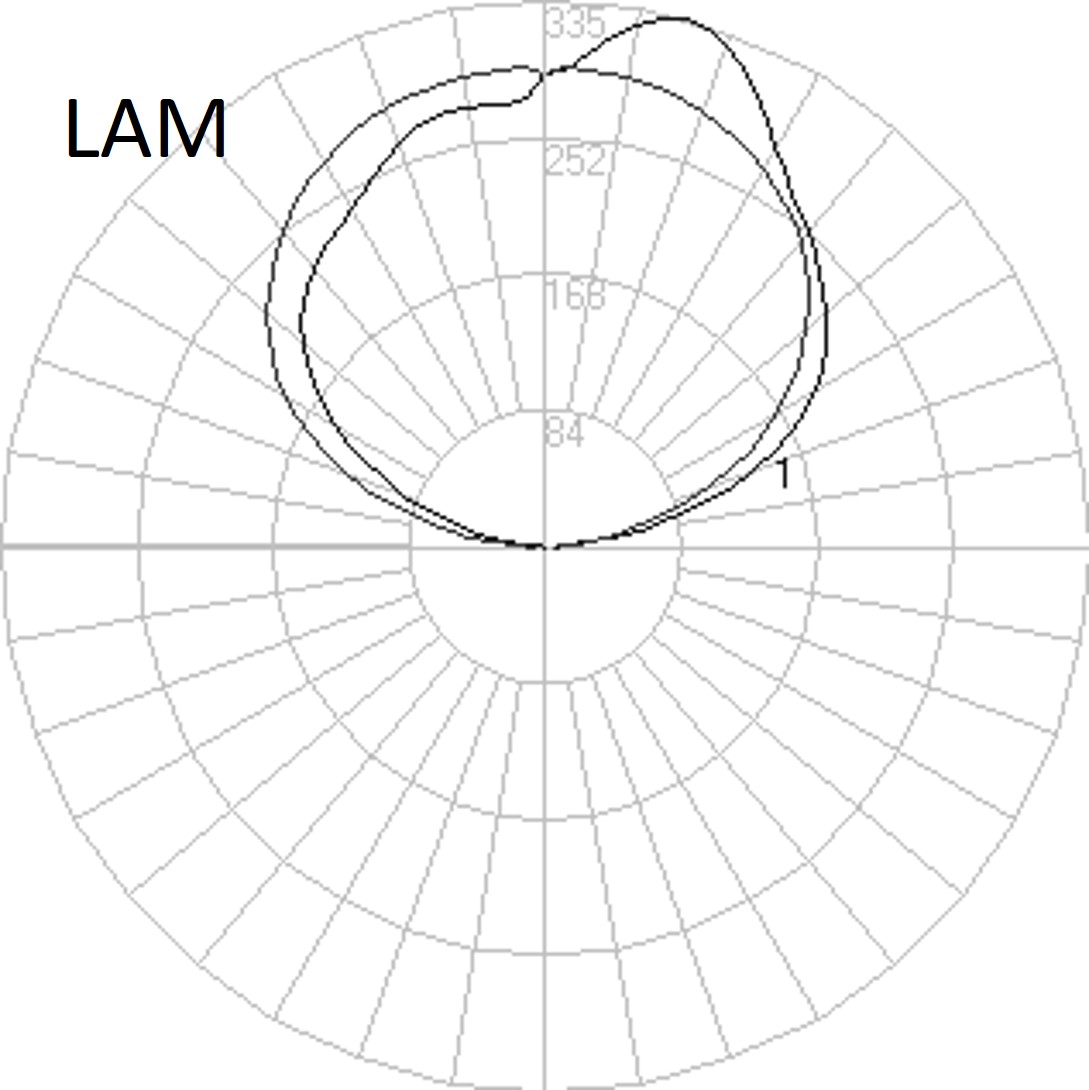

SmartBeam® Choices



XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

NANO Series Declare Listing

Standards & Certifications

Driver & Lighting Controls Options

Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.

Other NANO Series Products
