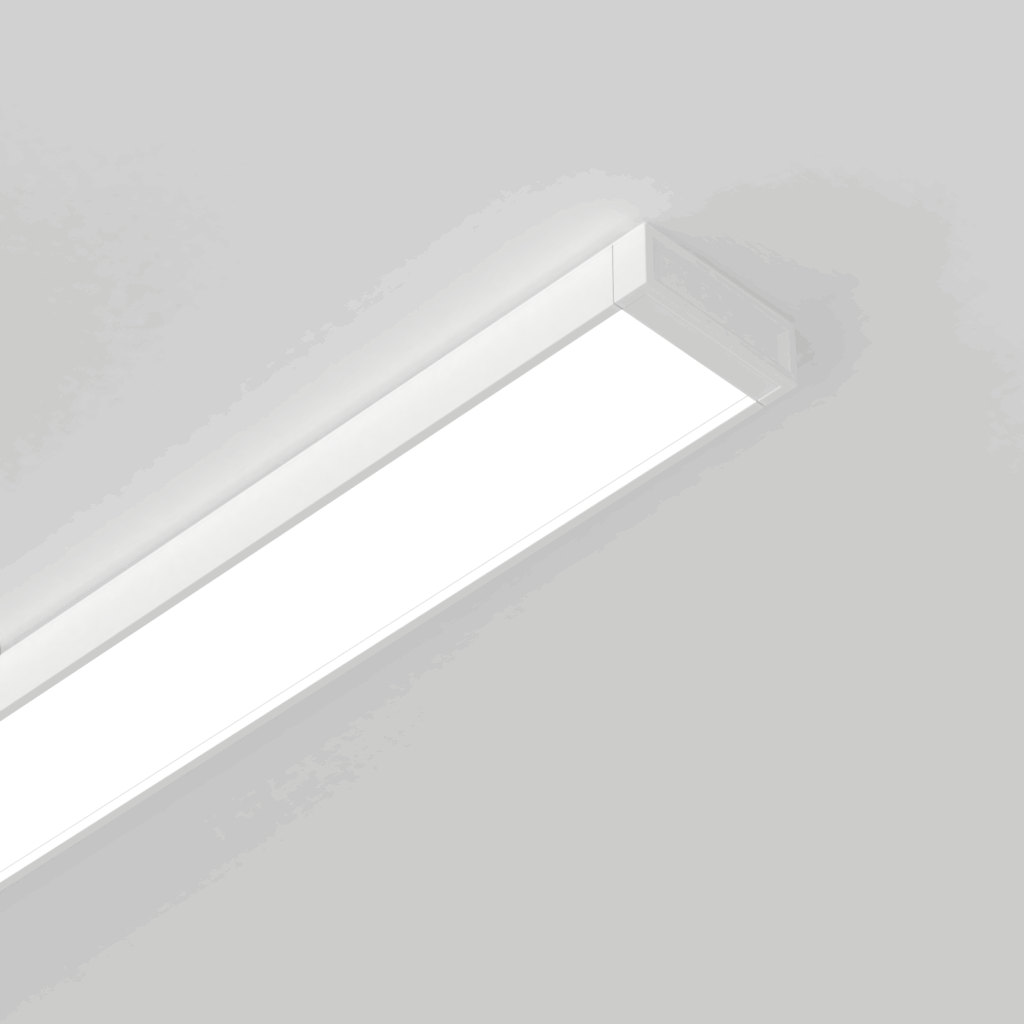

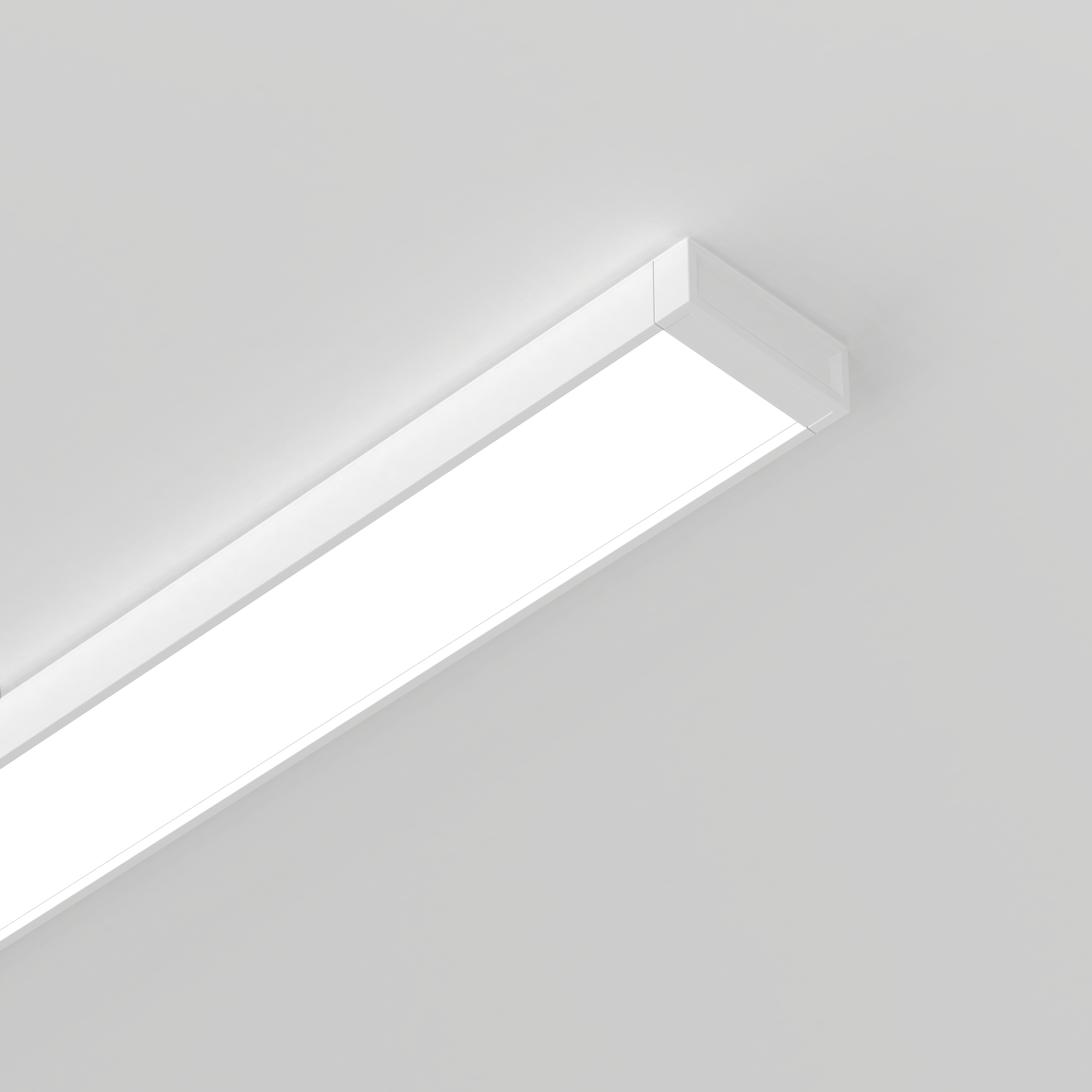

EDGESolo275 Surface is an innovative low-profile surface-mounted LED luminaire designed to provide the perfect direct and indirect light. EDGE products all provide best-in-class efficiency and beam control options. EDGESolo275 Surface is specification-grade with high lumen per foot, high CRI, and circadian options. EDGESolo275 Surface incorporates an engineered LED light engine with fully customizable choices for lumen output, CCT, and CRI.
Fixture Dimensions: 2.75″ (W) x 1.0″ (H)
Dimensions
Mounting Style
Mounting Types
Mounting Brackets
Standard Lengths
Finish
End Cap Styles
Housing Material
Warranty
Sustainability
2.75″ x 1″
Surface
Drywall, Magnet and T-Bar
Sheet Metal
2ft, 4ft, 6ft, 8ft
Powder Coated & Anodized
Flat and Chamfered
Extruded, Recycled Aluminum
5-Year Warranty
Declare Listed and Red List Free
LED Performance
LED Choices
Optics Choices
CRI
CCT
Lighting Configurations
Voltage
Driver Options
Emergency Backup
Compatible Controls Options
Power Cord
Up to 1,000 Lm/Ft, 135 Lm/W Efficacy.
Static

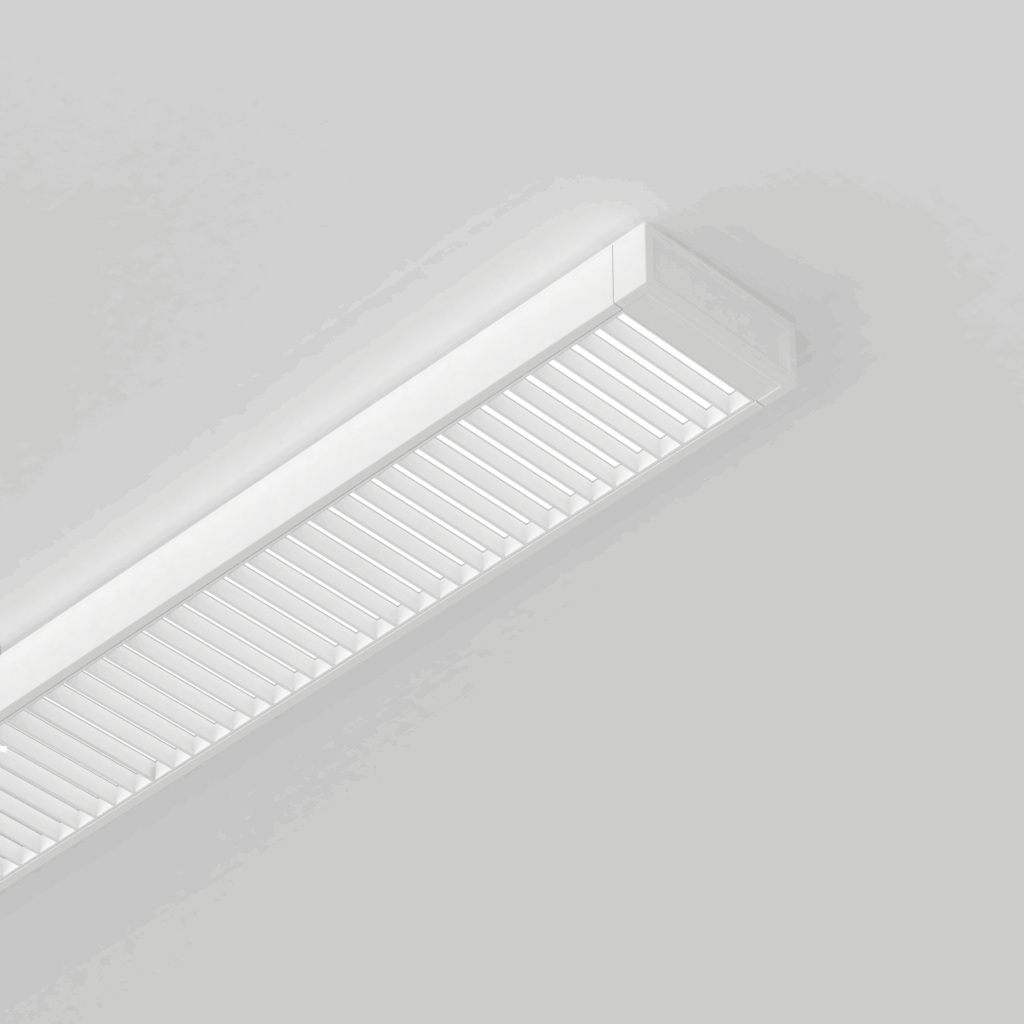

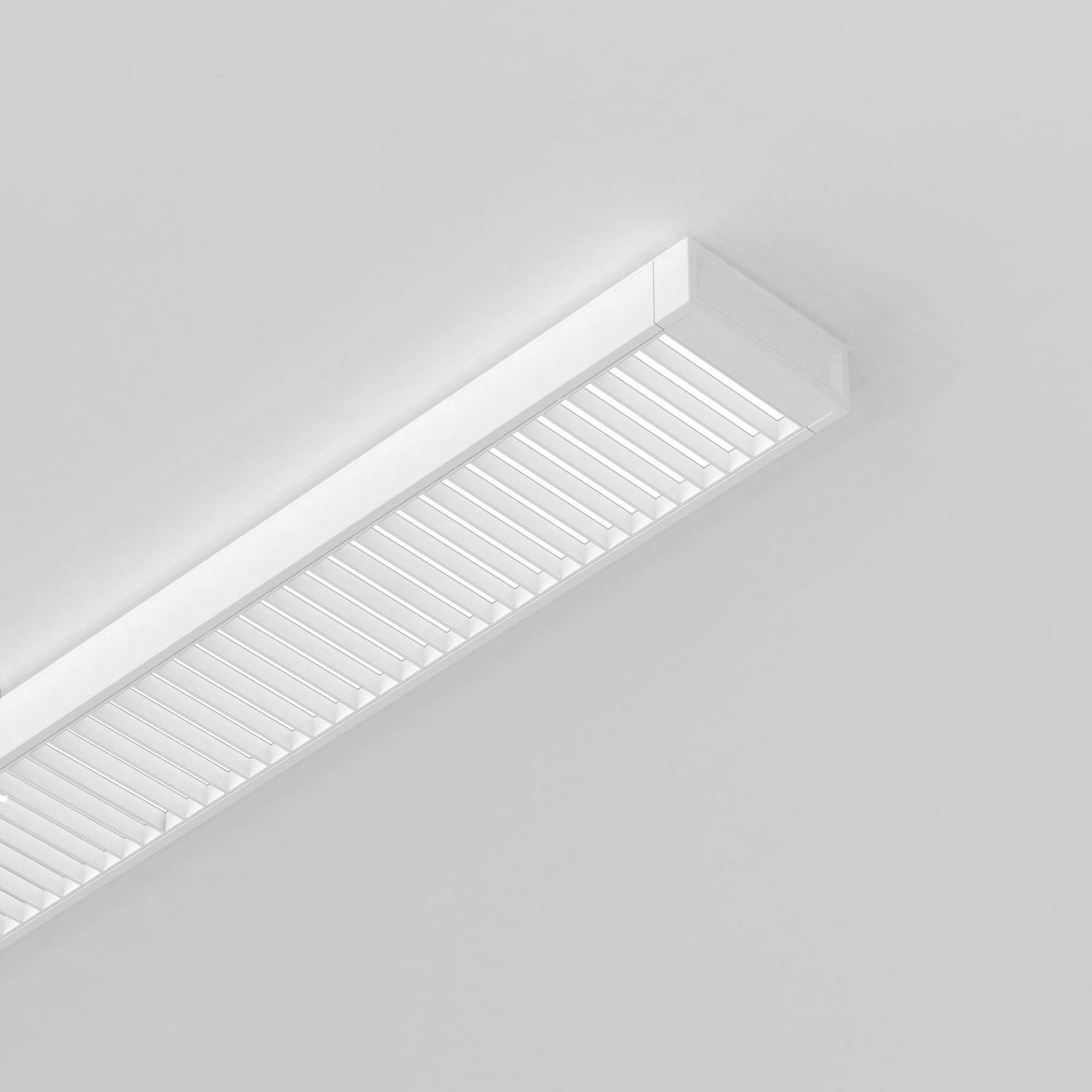

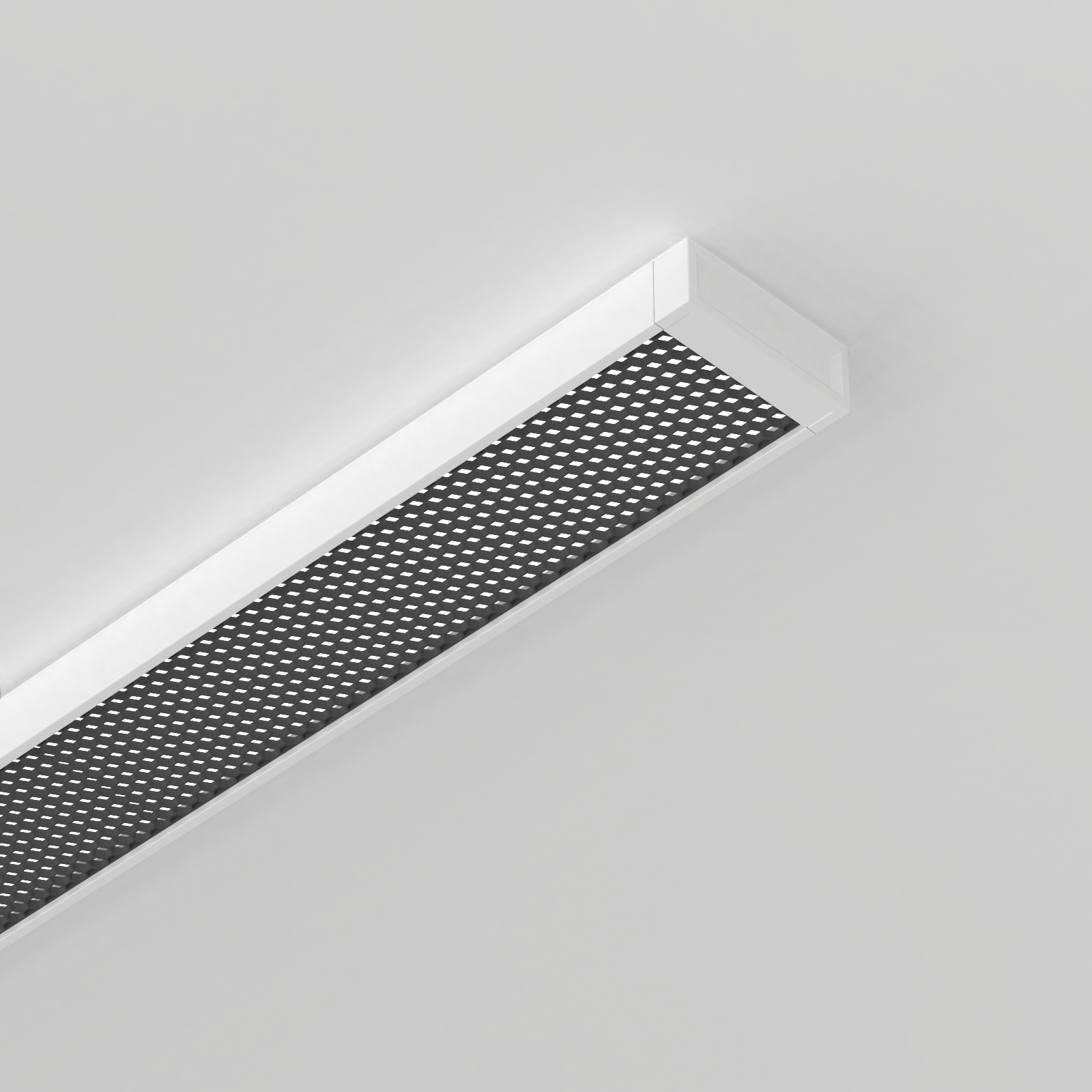

Standard, Baffle, and Glare Reduction Lens
80/90/95+
2700K to 6500K
Direct
120-277 VAC and 347 VAC, 50/60 Hz
Factory, Lutron & eldoLED
Emergency Circuit & Emergency Battery
Remote
24″
XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.
Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.
Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.
