EDGESlot6 CenterLine

EDGE Series

Control & Performance with Light Guides

Description

Request Information

Product Code: ESL6-CL

Multifunctional 6″ Edge-Lit Recessed Linear Panel

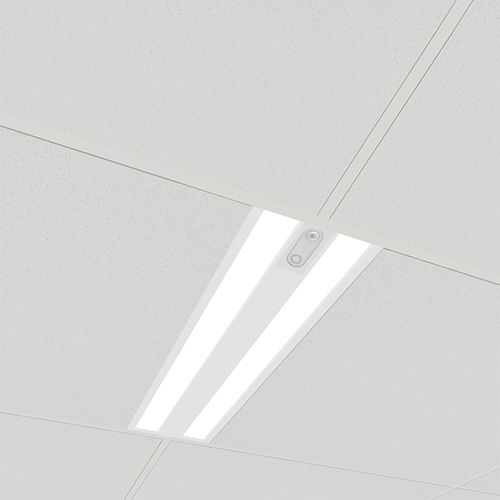

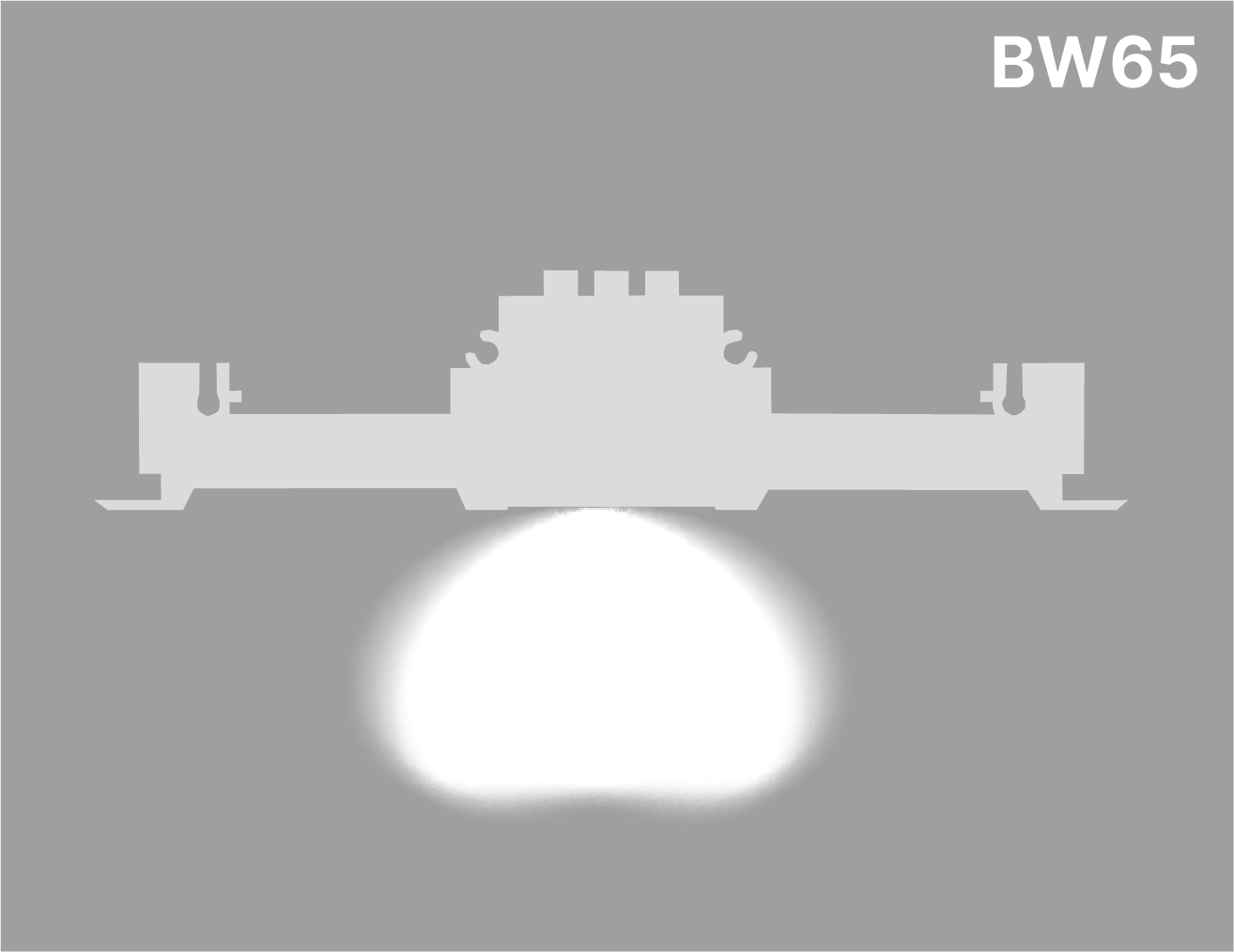

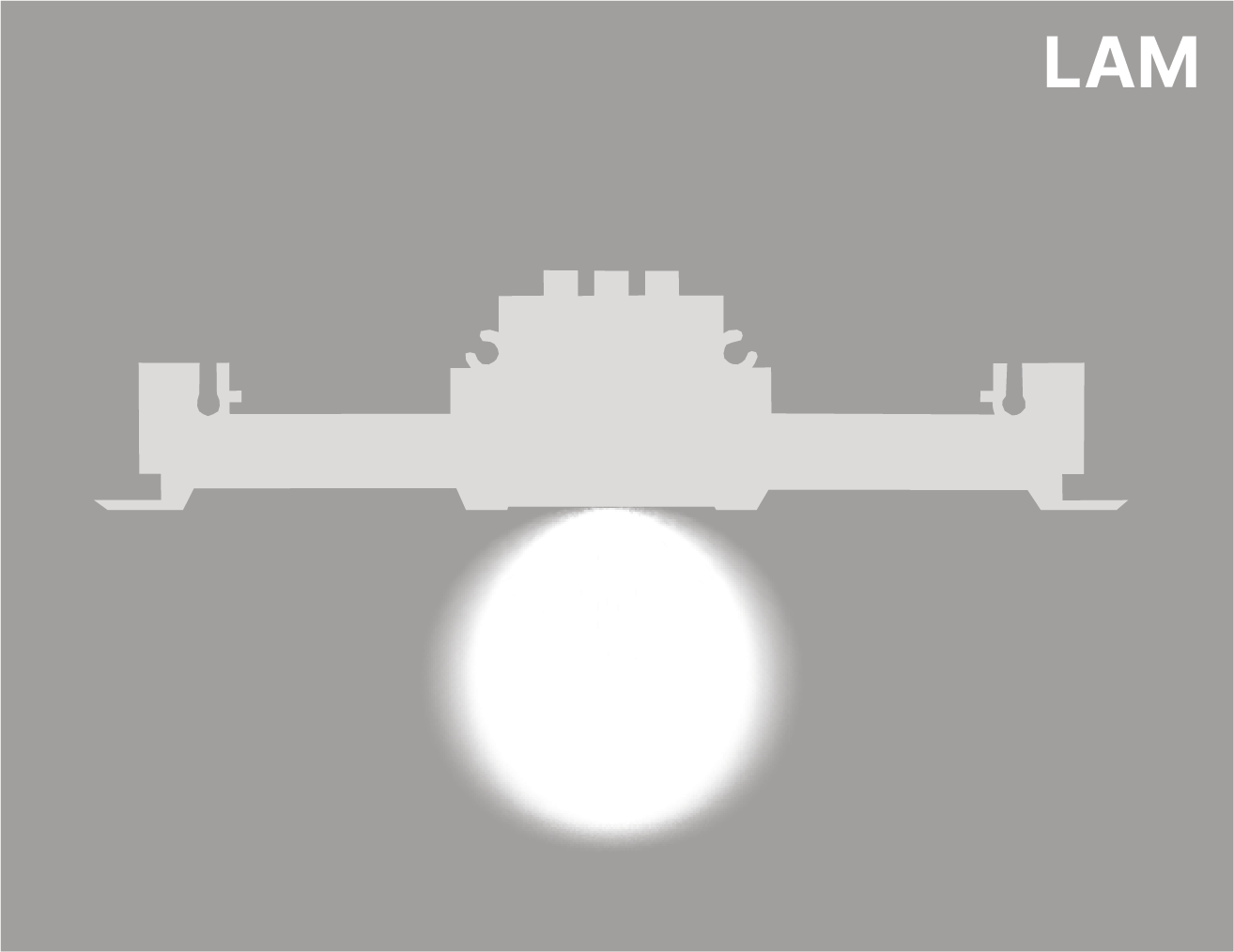

EDGESlot6 CenterLine (CL) is an innovative low-profile 6″ wide LED luminaire designed to be used in recessed drywall, gypsum or T-Bar ceiling installs. EDGESlot6 CL is especially suited to low or zero plenum applications since it is less than the height of T-Bar main beam. EDGESlot6 CL provides best-in-class efficiency and beam control options, including lambertian, batwing and asymmetric for wall washing and perimeter lighting. EDGESlot6 CL also incorporates precision engineered LED light engines with fully customizable choices for lumen output, CCT and CRI, as well as being compatible with control options from leading players such as Lutron, Cooper and Casambi.

Features & Benefits

  • Edge-lit light guide technology with choice of optics

  • Fusion Optix® Inside with SmartBeam® technology

  • Patented EDGETek® light guide innovations

  • Additional MICROTek® and FLATLens® Optics

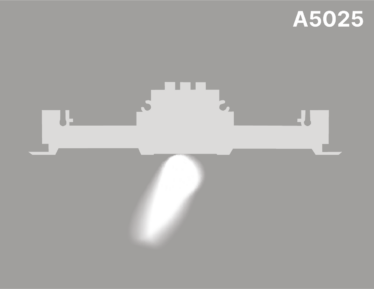

  • Symmetric & asymmetric lighting distributions

  • Best-in-class efficiency and color quality

  • 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm

  • Choice of factory selected, Lutron or Eldoled drivers

  • Controls include; Lutron, Cooper, Casambi

  • Choice of finishes and customization options

Certifications

  • UL/ETL Listed

  • Declare listed and Red List Free

  • RoHS Compliant

  • Designed & Built in Boston MA

  • BABAA Compliance (Read Statement)

  • BIOS Certified Partner

  • 5-Year Factory Warranty

Files & Downloads

Specification Guide
Installation Guide
REVIT Files
IES Files [ZIP]

SmartBeam® Choices

Sustainability

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

EDGE Series Declare Listing

Standards & Certifications

Driver & Lighting Controls Options

Xico provides a range of specification choices for drivers and lighting controls in addition to factory selected and installed items.

Other EDGE Series Products

Other EDGE Series Products

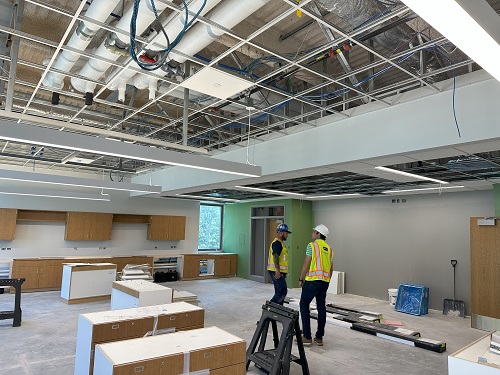

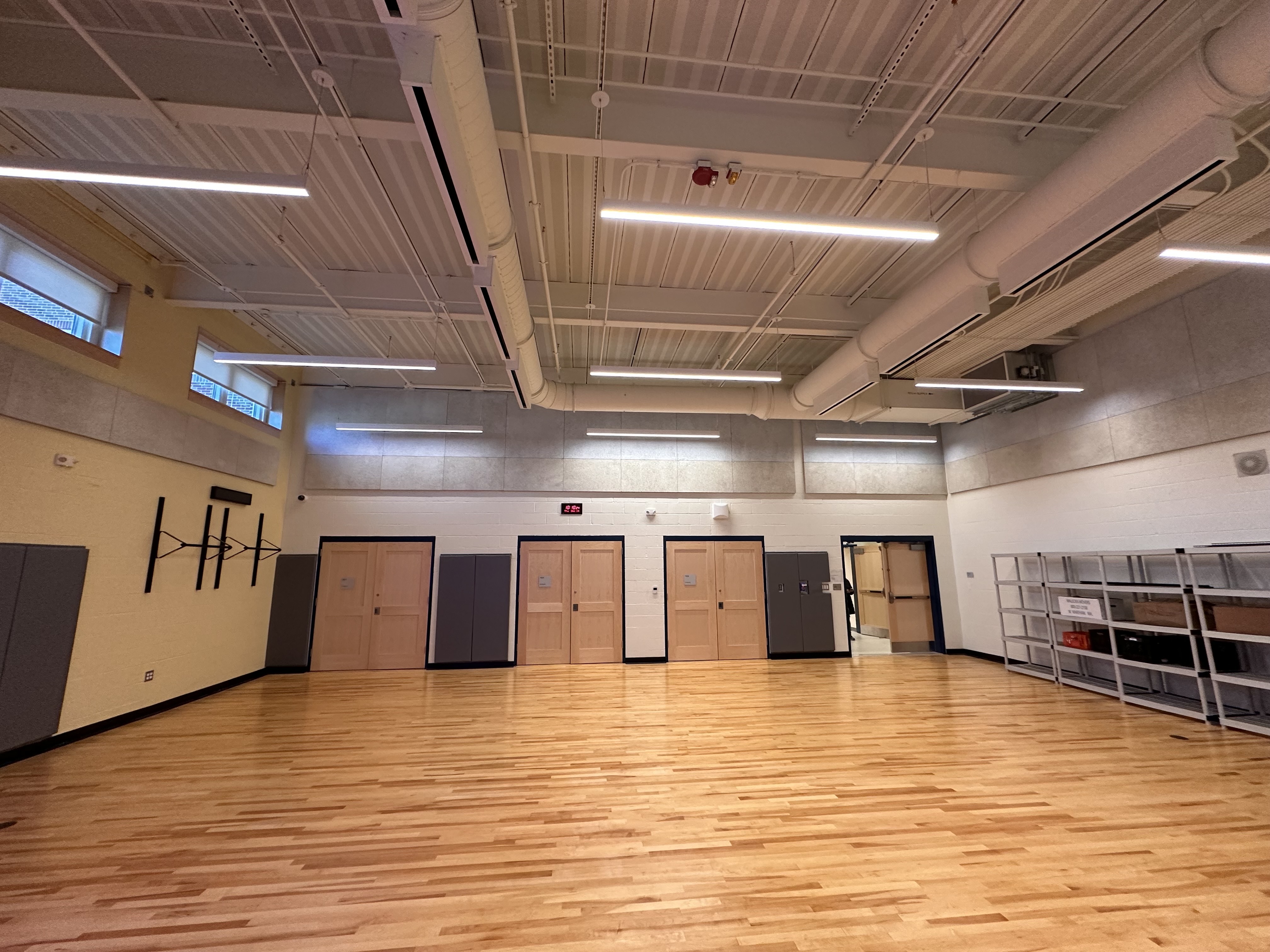

Waltham High School
