EDGESlot3

EDGE Series

Control & Performance with Light Guides

Description

Product Code: ESL3-RD

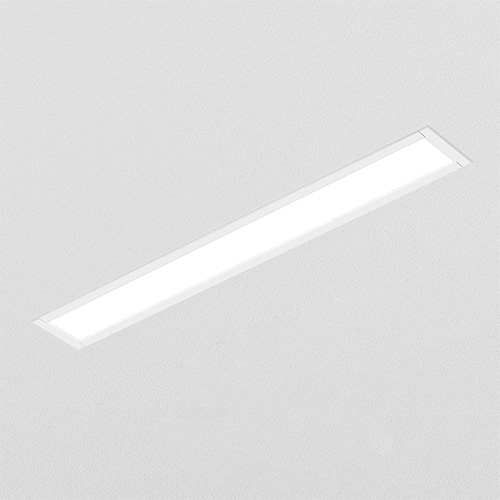

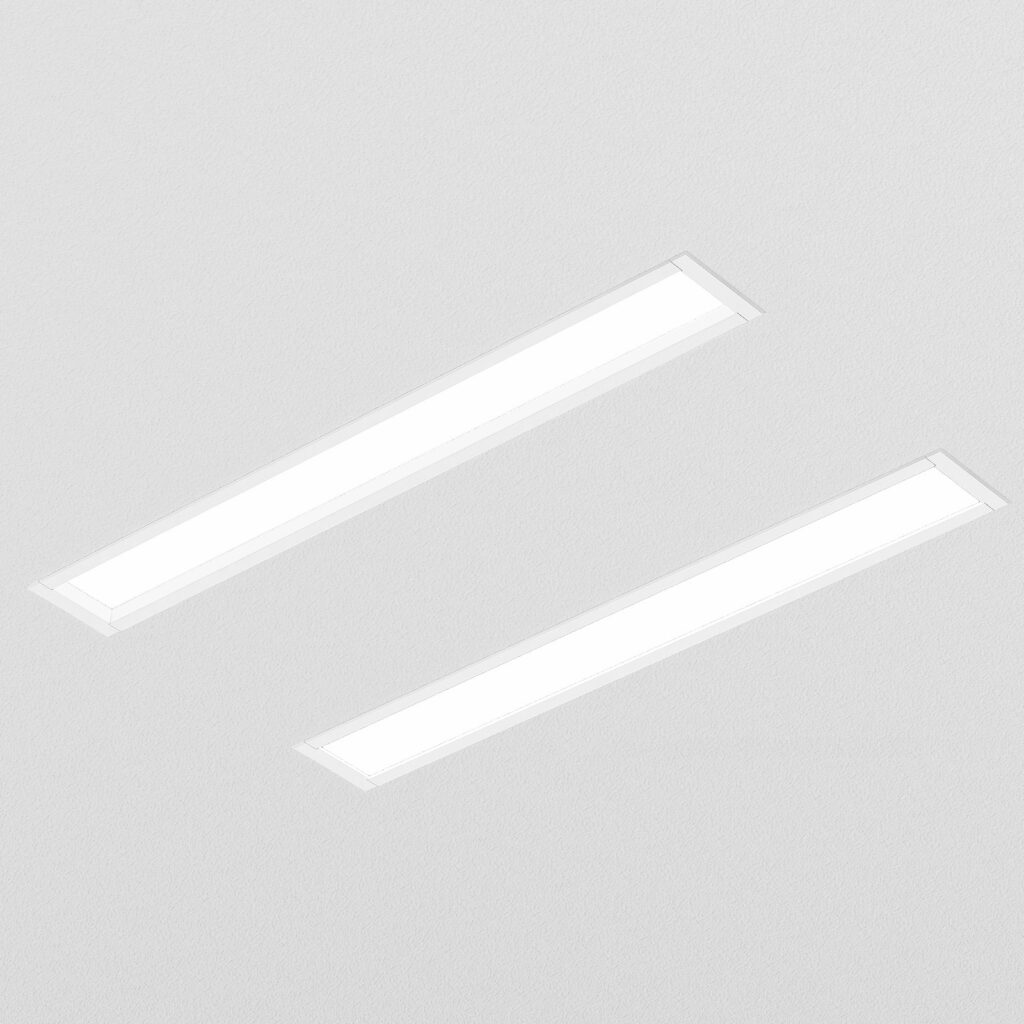

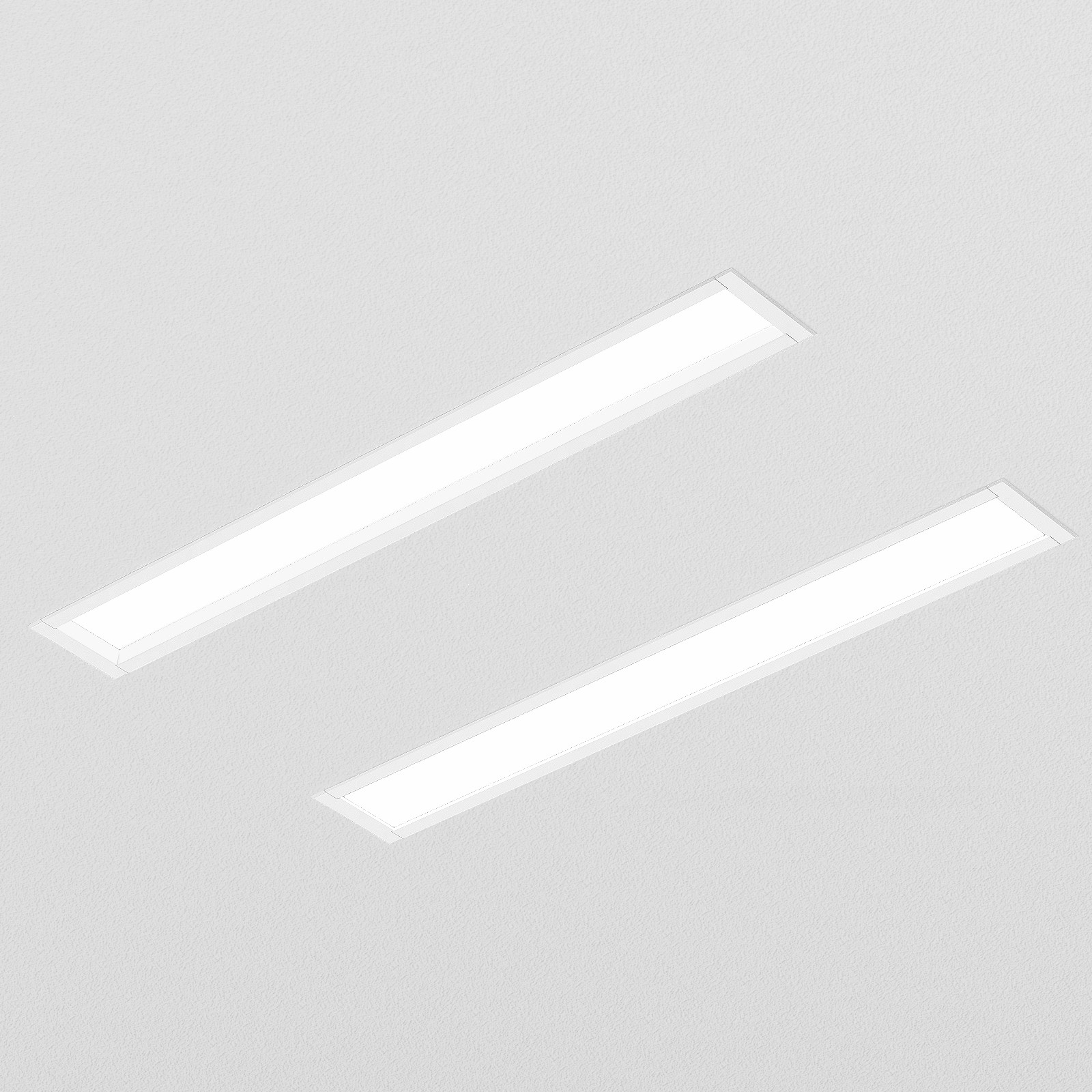

3″ Ultraslim Edge-Lit Linear LED for Drywall Mounting

EDGESlot3 is an innovative low-profile 3″ wide LED luminaire designed to be used in applications requiring recessed drywall or gypsum mounting. It is also available for mounting into T-Bar ceiling installs and is especially suited to low or zero plenum. EDGESlot3 provides best-in-class efficiency and beam control options. EDGESlot3 incorporates an engineered LED light engine with fully customizable choices for lumen output, CCT and CRI.

Fixture Dimensions: 3″ (W) x 1.5″ (H)

Features & Benefits

Edge-lit light guide technology with choice of optics
Fusion Optix® Inside with SmartBeam® technology
Patented EDGETek® light guide innovations
Additional MICROTek® and FLATLens® Optics
Symmetric & asymmetric lighting distributions
Best-in-class efficiency and color quality
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi
Choice of finishes and customization options

Certifications

UL/ETL Listed
Declare listed and Red List Free
RoHS Compliant
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
BIOS Certified Partner
5-Year Factory Warranty

Files & Downloads

Revit Files

Tech Drawings

Sustainability

Declare Label

BABAA Compliance

SmartBeam® Choices

Direct

Technical Specifications

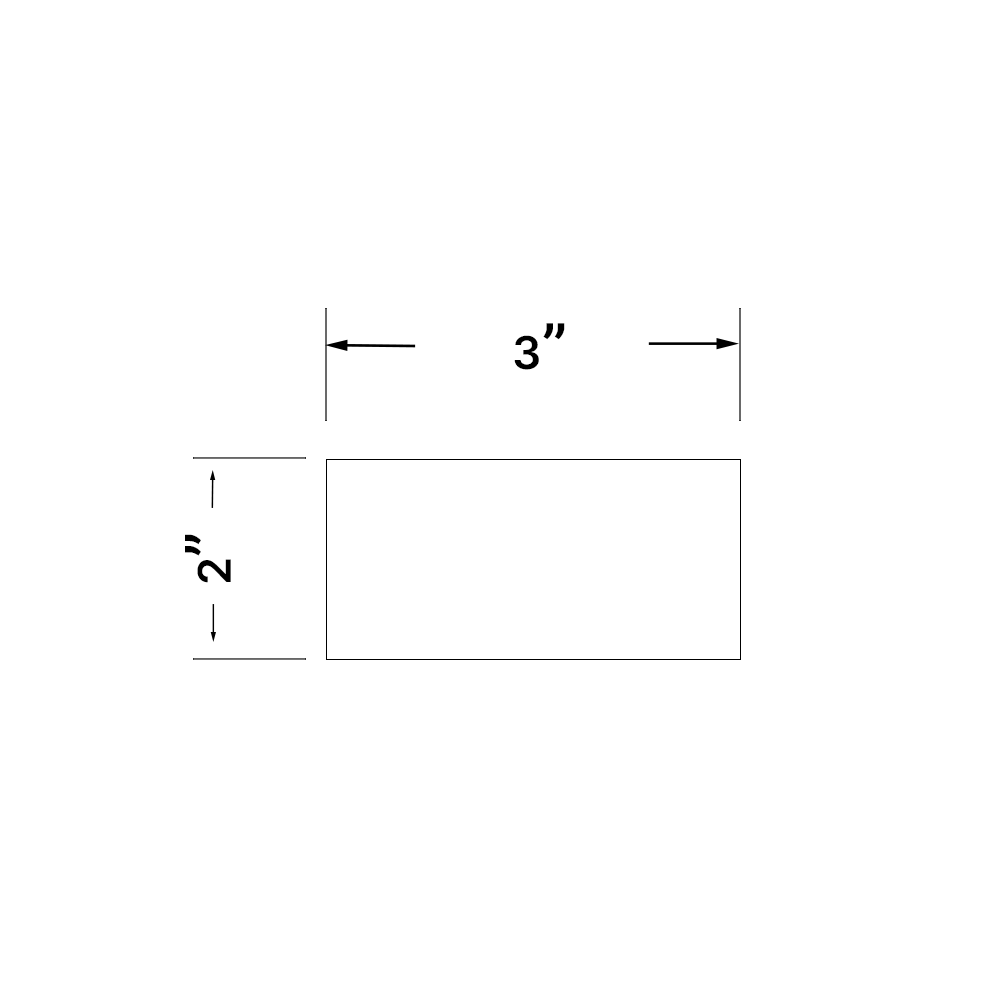

Dimensions

Mounting Style

Mounting Types

Mounting Brackets

Standard Lengths

Finish

Housing Material

Warranty

Sustainability

3″ x 2″

Recessed

Drywall

Sheet Metal

2ft, 4ft, 6ft, 8ft

Powder Coated & Anodized

Extruded, Recycled Aluminum

5-Year Warranty

Declare Listed and Red List Free

LED Performance

LED Choices

Optics Choices

CRI

CCT

Lighting Configurations

Voltage

Driver Options

Emergency Backup

Compatible Controls Options

Up to 1,000 Lm/Ft, 135 Lm/W Efficacy.

Static, Dim-to-Warm and Tunable White

Flush and Regressed Lens

80/90/95+

2700K to 6500K

Direct

120-277 VAC and 347 VAC, 50/60 Hz

Factory, Lutron & eldoLED

Emergency Circuit & Emergency Battery

Fixture Mounted or Remote

Sustainability

XICO_IMG_Hand_with_EDGERazor_Pendant_500x500

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

EDGE Series Declare Listing
