Fusion Optix® inside with SmartBeam® technology
Virtually unlimited range of lighting outputs, choice of optics and LED engines. Best-in-class efficacy and overall quality of light. Patented innovations. Designed and built in Boston MA.
NANOSlot T-Bar
0.95” Compact Linear LED T-Bar Mount

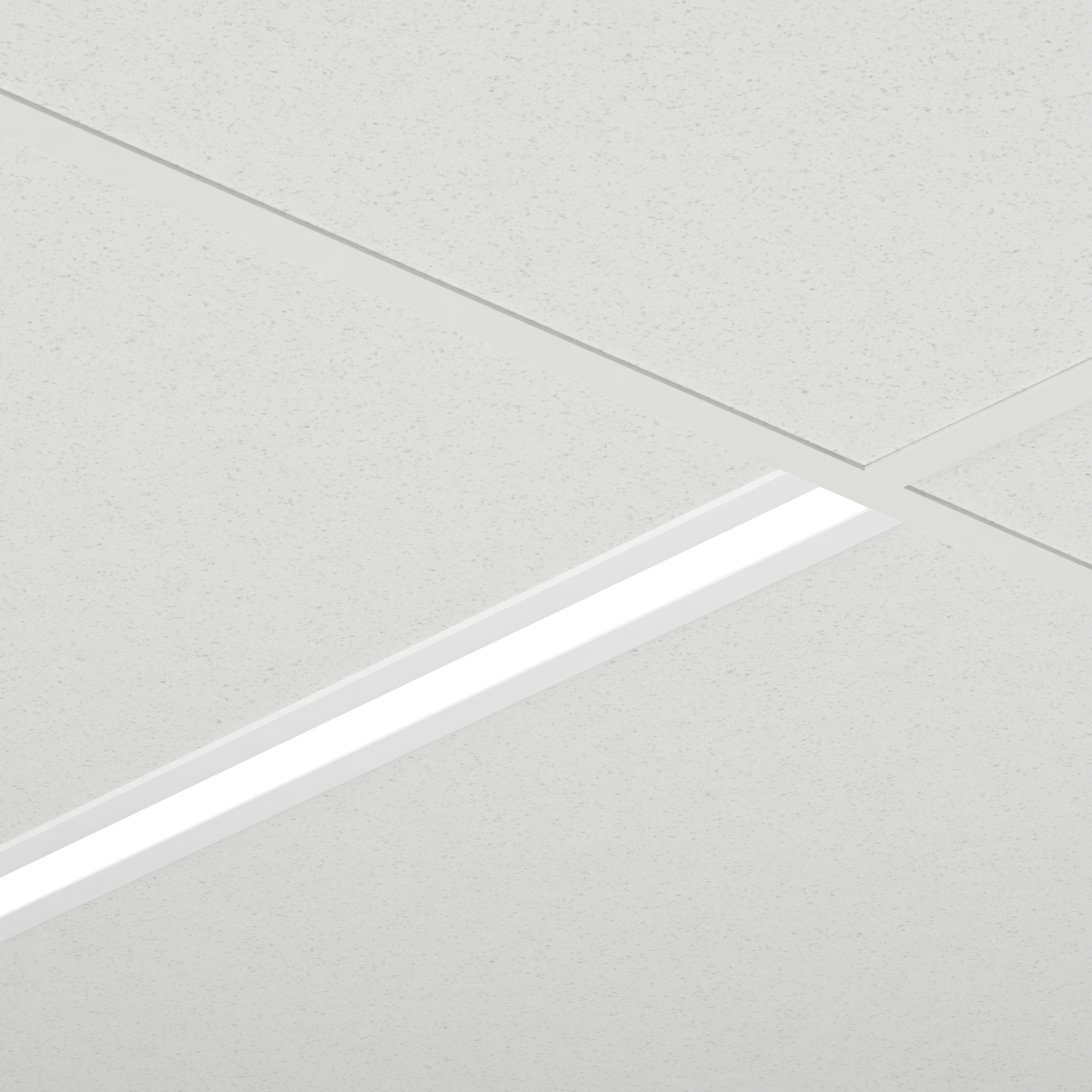

NANOSlot T-Bar is a 0.95” recessed slot LED linear light fixture designed for ceiling grid systems. NANOSlot T-Bar brings SmartBeam® capabilities to a 15/16″ wide aperture that perfectly complements a T-Bar-based architectural space. NANOSlot T-Bar is available in ready to fit standard lengths at 24″, 48″ and 96″. It also has mounting options for a range of ceiling systems and is also available in custom lengths and shapes. The NANOSlot T-Bar is designed to be specification-grade with high lumen per foot, high CRI, and circadian options.
Features & Benefits
Wide LED Choice
White LEDs in 80/90/95+ CRI, 2200K-4000K CCT. Available for: static white, tunable white and dim-to-warm. Available with BIOS and Sunlight LEDs
Wide Range of Dimming Options
0-10V, DALI, DMX and Triac dimming. Dim-to-warm and Dim-to-0.1% optional.
Your Driver Choice
Choice of factory selected, Lutron or Eldoled drivers. Choice of popular controls systems including Lutron, Cooper, Casambi.
Sustainability First
Declare and Mindful Materials listed. Designed and built in Boston MA with localized supply chain. RoHS compliant, Lead Free and Red List Free
5-Year warranty
Standard 5-year return to base warranty for complete assembly. UL listed, CSA 22.2 compliant.
Download Section
SmartBeam® Choices
Performance
Efficacy
135lm/W
Watts/ft
16.5 W/ft combined max
Lumens/ft
2145lm/ft combined max
Weight
4.25oz/ft
Declare & Red List Free
Certifications
Configuration Options
| Light Direction | |
|---|---|
| Finish | Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL # |
| Length | 4', 6', 8', Configurable in continuous runs in 6" increments, Custom |
| Color Temperature | |
| Color Rendering Index | |
| Mounting Method | |
| Width | |

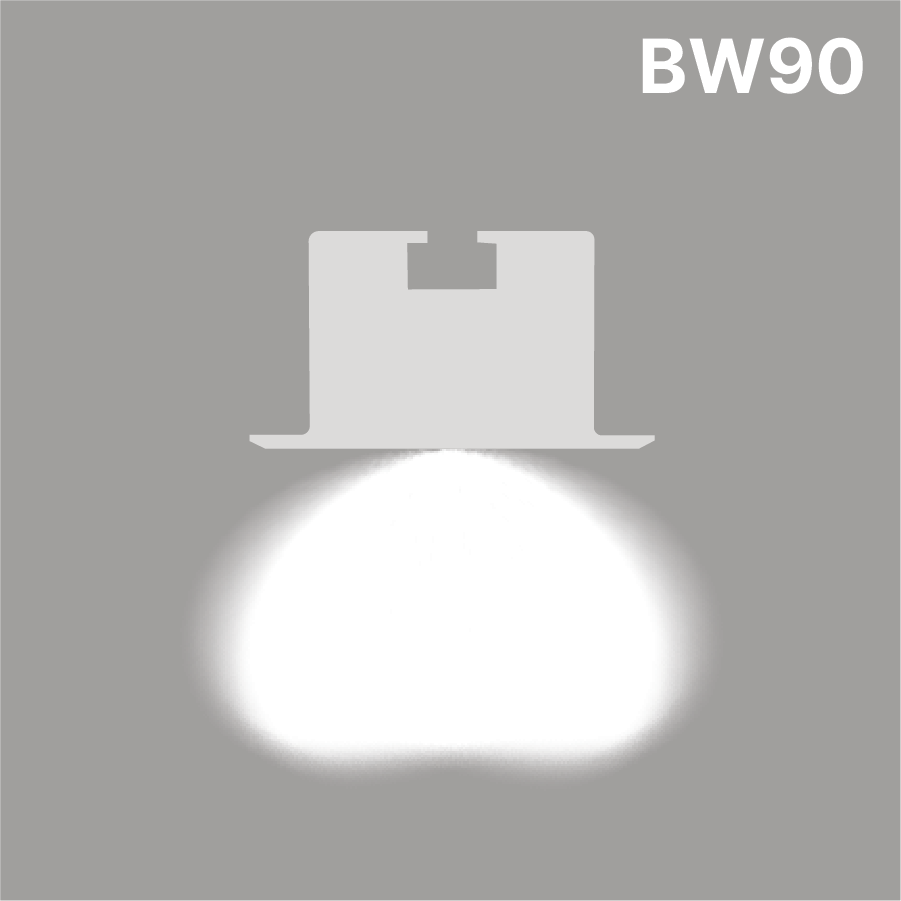

| Beam Distribution | Asymmetric, Batwing, Cosine, Double Asymmetric, Graze, Medium, Wide |
| Driver |
