MICROFlat375 Wall

MICRO Series

High Performance, Sub 1.5" Form Factor

Description

Product Code: MFL375-W

3.75″ x 0.5″ Low-Profile Wall Mounted “Ledge” Fixture

The MICROFlat375 Wall from XICO is an innovative ultra-slim and compact wall-mounted LED linear product providing best-in-class efficiency and beam control options. The MICROFlat375 is designed to be specification-grade with high lumen per foot, high CRI, and circadian options. MICROFlat375 does not rely on low-cost LED tape but rather engineered light engines with fully customizable choices for lumen output, CCT, and CRI. Based upon unique micro-optical technology; a key feature of the MICROFlat375 is that it delivers a wide range of beam distributions while achieving high efficacy, energy-saving performance. MICROFlat375 products are available with a range of accessories and mounting options.

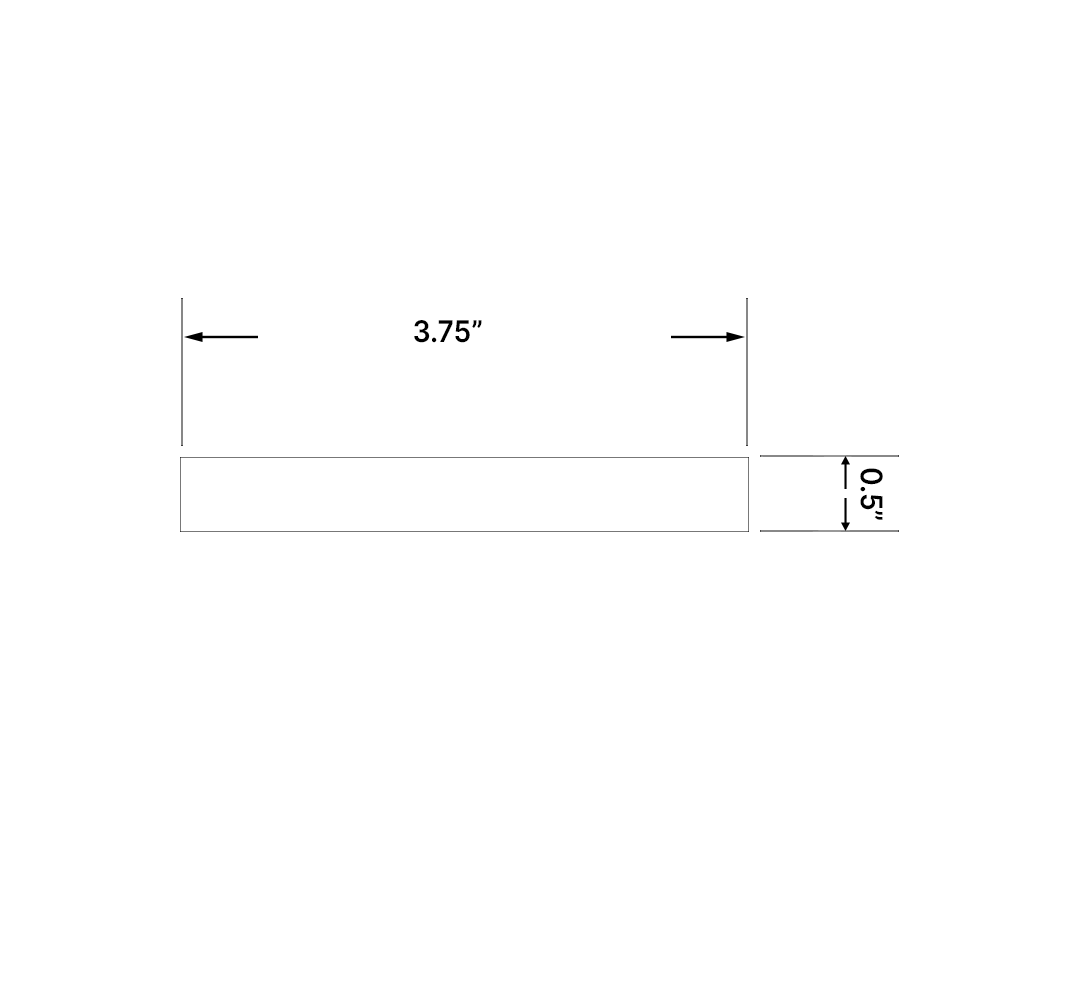

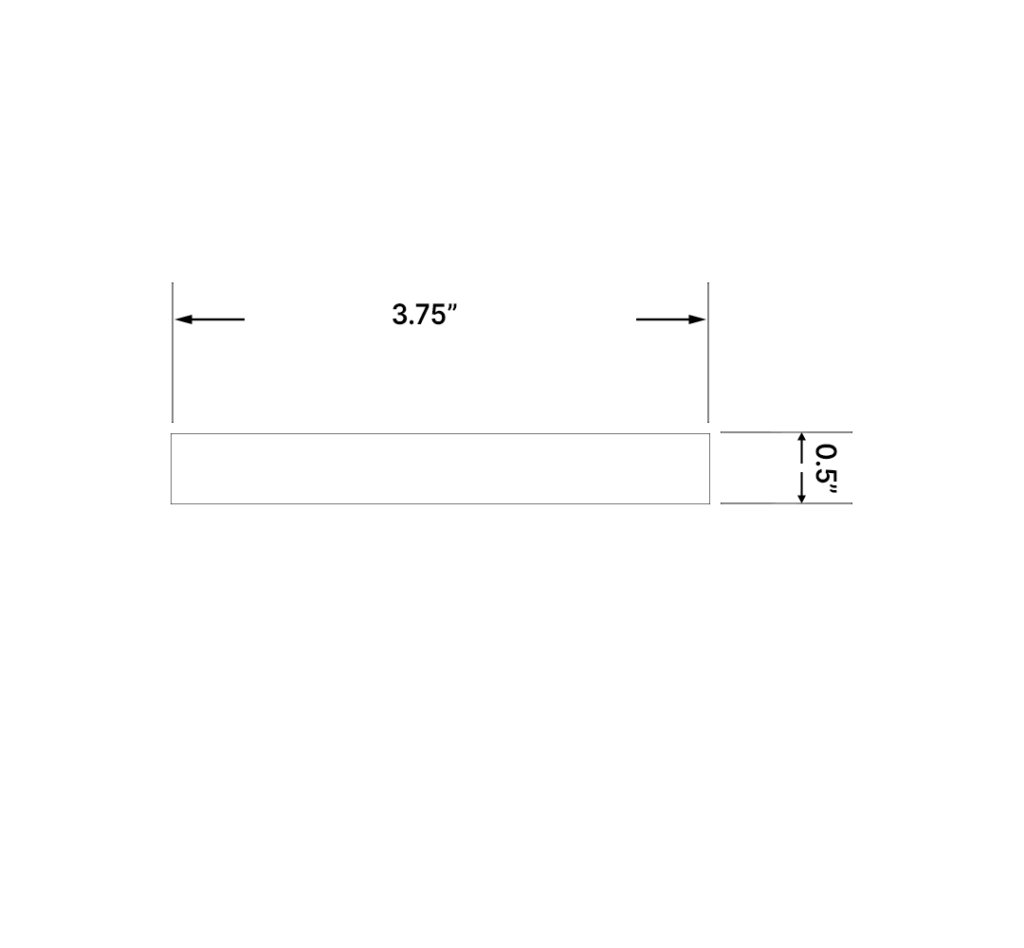

Fixture Dimensions: 3.75″ (W) x 0.5″ (H)

Features & Benefits

High performance, small form factor LED light
SmartBeam® technology by Fusion Optix®
Symmetric & asymmetric lighting distributions
Best-in-class efficiency for indirect and direct lighting
LED choices: >90 CRI, Sunlight and RGB/RGBW
White LED color fidelity of 2.5 Step MacAdam ellipse
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi
Choice of powder coated and anodized finishes

Certifications

UL/ETL Listed
Declare listed and Red List Free

RoHS Compliant
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
BIOS Certified Partner
5-Year Factory Warranty

Files & Downloads

Revit Files

Tech Drawings

Sustainability

Declare Label

BABAA Compliance

SmartBeam® Choices

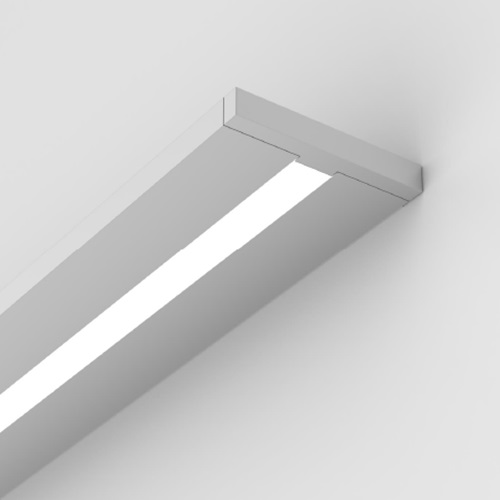

Direct

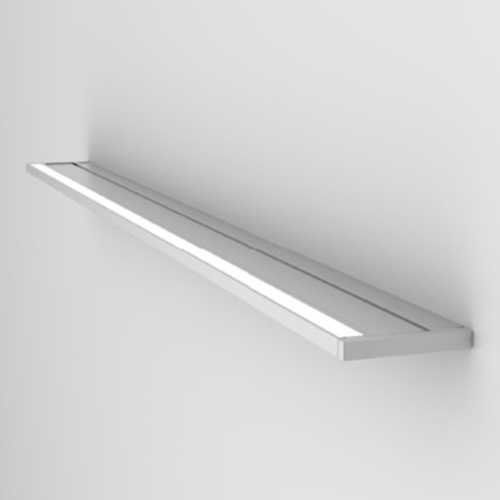

Indirect

Technical Specifications

Dimensions

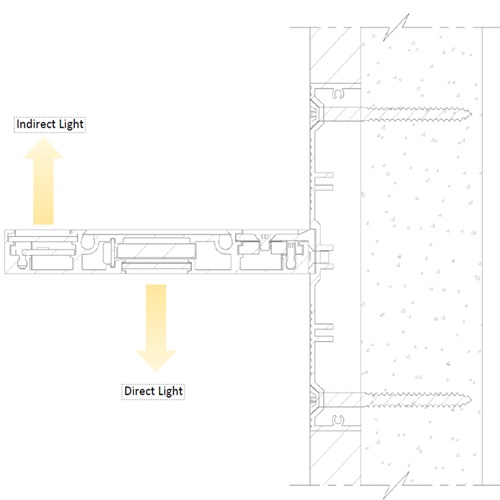

Mounting Style

Mounting Types

Mounting Brackets

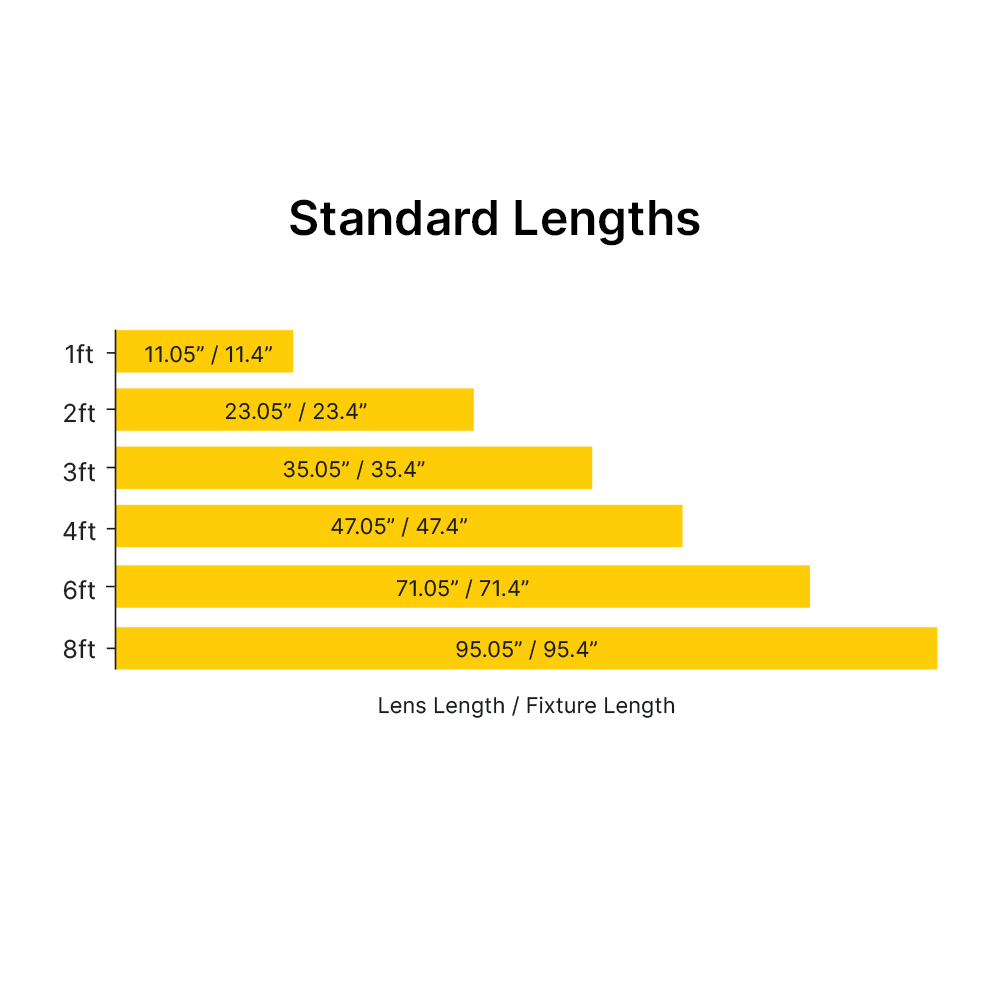

Standard Lengths

Finish

Housing Material

Warranty

Sustainability

3.75″ x 0.5″

Wall

Direct and Mud-In

Sheet Metal

1ft, 2ft, 4ft, 6ft, 8ft

Powder Coated & Anodized

Extruded, Recycled Aluminum

5-Year Warranty

Declare Listed and Red List Free

LED Performance

LED Choices

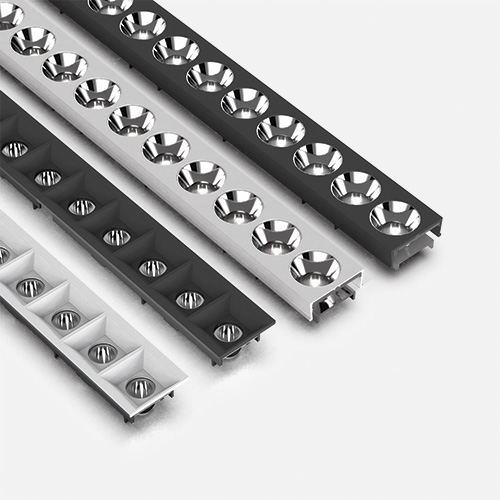

Optics Choices

CRI

CCT

Lighting Configurations

Voltage

Driver Options

Emergency Backup

Compatible Controls Options

Power Cord

Up to 1,000 Lm/Ft, 150 Lm/W Efficacy

Static, Tunable, White, & Dim-to-Warm

Flush & MCO

80/90/95+

2700K to 6500K

Direct, Indirect, Direct / Indirect

120-277 VAC and 347 VAC, 50/60 Hz

Remote

Emergency Circuit & Emergency Battery

Lutron, Casambi & Cooper

24″

Sustainability

hand holding two fingers, isolated on white

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

MICRO Series Declare Listing
