MICROCove ACI

MICRO Series

High Performance, Sub 1.5" Form Factor

Description

Product Code: MCV-ACI

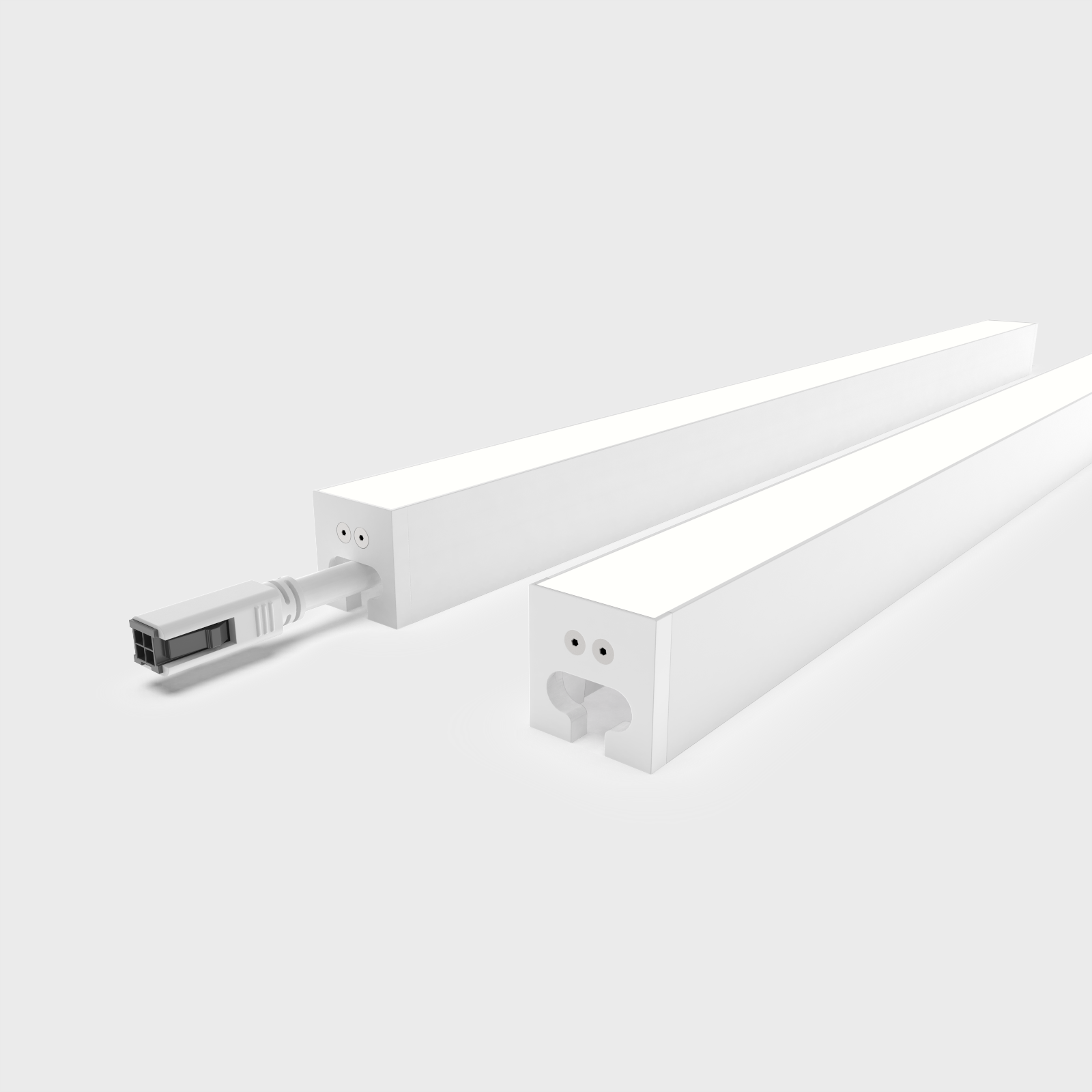

High Performance 1.4″ Cove Lighting with Direct AC input to Integral Driver

The MICROCove AC Indirect (ACI) is part of the innovative family of ultra-slim and compact LED linear products providing best-in-class efficiency and beam control options. The MICROCove ACI is designed to fit into the smallest of cove spaces and is specification-grade with high lumen per foot, high CRI, and circadian options. MICROCove ACI uses engineered light engines with fully customizable choices for lumen output, CCT, and CRI. Designed to be surface mounted. MICROCove ACI is AC driven and has an integral driver. MICROCove ACI can also be daisy-chained with individual fixtures placed end-on-end in a tight packed formation to create long continuous runs of light.

Fixture Dimensions: 1.4″ (H) x 1.4″ (W)

Features & Benefits

High performance, small form factor LED light
SmartBeam® technology by Fusion Optix®
Symmetric & asymmetric lighting distributions
Best-in-class efficiency for indirect and direct lighting

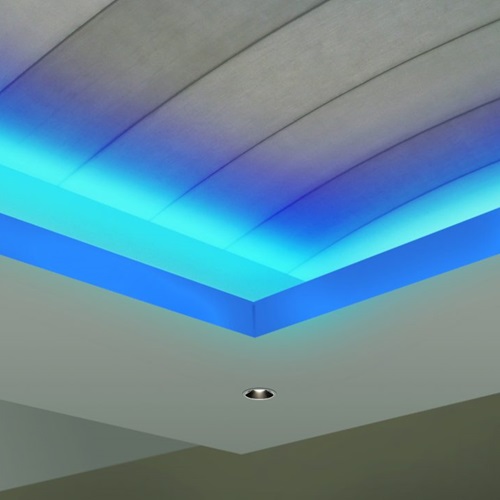

LED choices: >90 CRI, Sunlight and RGB/RGBW
White LED color fidelity of 2.5 Step MacAdam ellipse
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi
Choice of powder coated and anodized finishes

Certifications

UL/ETL Listed
Declare listed and Red List Free

RoHS Compliant
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
BIOS Certified Partner
5-Year Factory Warranty

Files & Downloads

Specification Guide

Static White

Photometrics

IES Files

Design & Install

Installation Instructions

Revit Files

Tech Drawings

Sustainability

Declare Label

BABAA Compliance

SmartBeam® Choices

Technical Specifications

Dimensions

Mounting Style

Mounting Types

Mounting Brackets

Standard Lengths

Finish

Housing Material

Warranty

Sustainability

1.4″ x 1.4″

Cove

Surface

Sheet Metal

1ft, 2ft, 3ft, 4ft, 6ft, 8ft

Powder Coated

Extruded, Recycled Aluminum

5-Year Warranty

Declare Listed and Red List Free

LED Performance

LED Choices

Optics Choices

CRI

CCT

Lighting Configurations

Voltage

Driver Options

Emergency Backup

Compatible Controls Options

Power Cord

Up to 1,250 Lm/Ft, 150 Lm/W Efficacy

Static, Tunable, White, & Dim-to-Warm

Flush

80/90/95+

2700K to 6500K

Indirect

120-277 VAC and 347 VAC, 50/60 Hz

Integral

Emergency Circuit & Emergency Battery

Lutron, Casambi & Cooper

6″, 12″, 24″ and 48″

Sustainability

hand holding two fingers, isolated on white

Declare.

XICO uses the Living Product Challenge framework to rethink the way our products are made. Instead of trying to be “less bad,” we are creating products that have a positive impact.

Declare is an ingredients label for building products paired with an online database of healthy materials for building project specifications. It allows manufacturers of ecologically sound products to demonstrate market leadership in the growing movement toward product transparency and health in the built environment and provides them an expanded point of entry into the world’s most groundbreaking sustainable building projects.

MICRO Series Declare Listing
