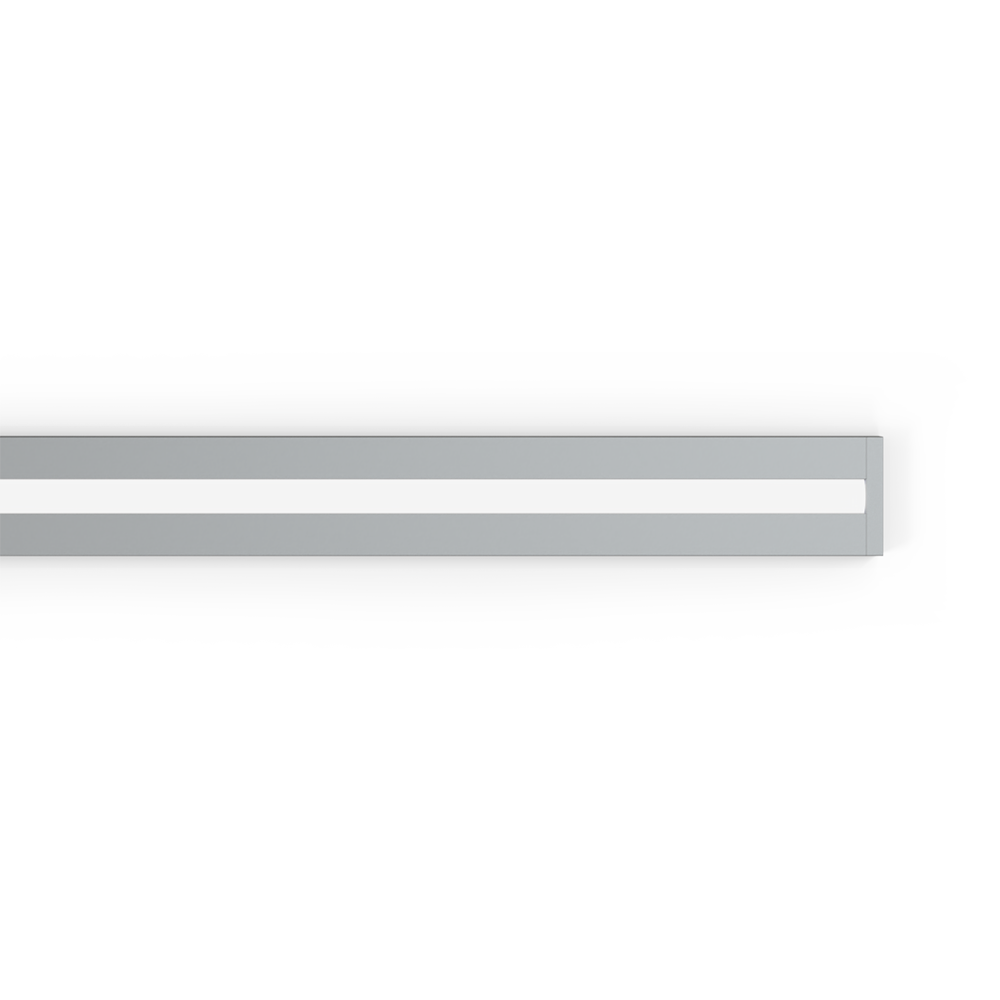

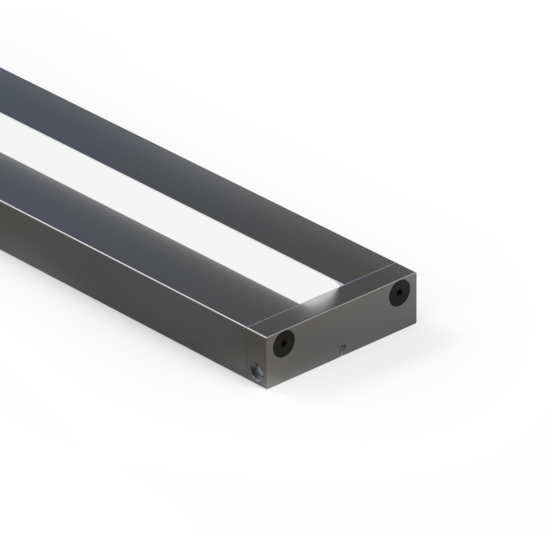

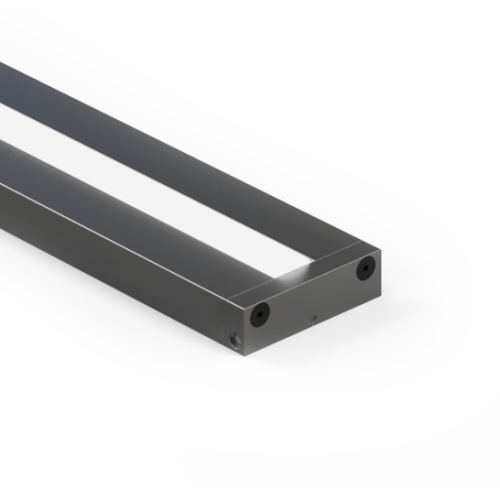

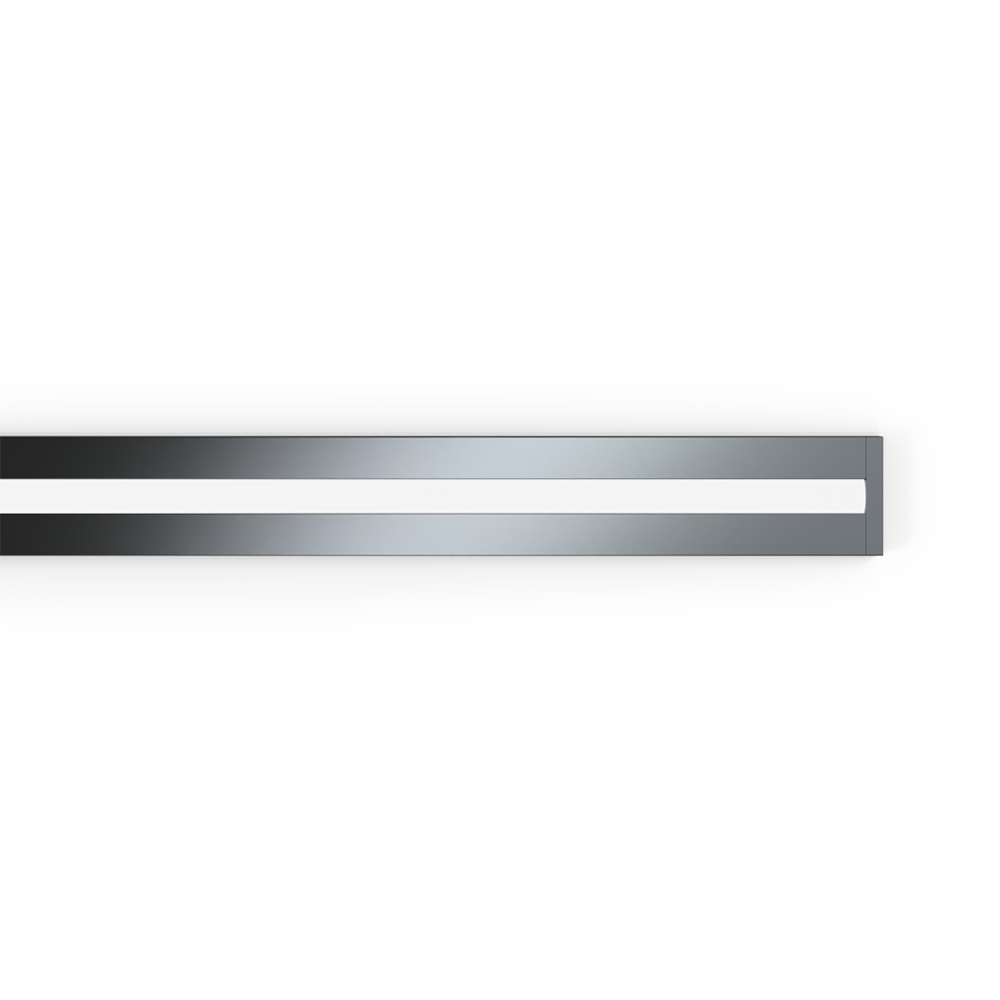

MICROFlat LED Rail System

Product Code: MFL140

1.4″ Low-Profile Linear LED Flat Rail

The MICROFlat Rail from XICO is an innovative ultra-slim and compact LED linear product providing best-in-class efficiency and beam control options. The MICROFlat Rail is designed to be specification-grade with high lumen per foot, high CRI, and circadian options. MICROFlat Rail does not rely on low-cost LED tape but rather engineered light engines with fully customizable choices for lumen output, CCT, and CRI. Based upon unique micro-optical technology; a key feature of the MICROFlat Rail is that it delivers a wide range of beam distributions while achieving high efficacy, energy-saving performance. MICROFlat Rail products are available with a range of accessories and mounting options.

Features & Benefits

Sub 1.5″ aperture with choice of optics
Fusion Optix® Inside with SmartBeam® technology
Symmetric & asymmetric lighting distributions
Best-in-class efficiency for indirect and direct lighting
0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
Choice of factory selected, Lutron or Eldoled drivers
Controls include; Lutron, Cooper, Casambi
Choice of finishes and customization options

Certifications

UL Listed
Declare listed and Red List Free
Designed & Built in Boston MA
BABAA Compliance (Read Statement)
5-Year Factory Warranty

Light Direction	Direct Only, Indirect Only
Finish	Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL #
Length	12 Inches, 24 Inches, 48 Inches, Configurable in continuous runs in 6" increments, Custom
Color Temperature	2700K, 3000K, 3500K, 4000K
Color Rendering Index	90+, 80+, 95+
Mounting Method	Cove & Perimeter, Undercabinet, TBar/Grid Ceilings, Surface (Ceiling)
Width	1.25"-2"
Beam Distribution	Medium, Narrow, Wide
Driver	Fixture Mounted, Remote

Light Direction

Direct Only, Indirect Only

Finish

Gray Powder Coat, Anodized Aluminum, White Powder Coat, Black Powder Coat, Custom RAL #

Length

12 Inches, 24 Inches, 48 Inches, Configurable in continuous runs in 6" increments, Custom

Color Temperature

2700K, 3000K, 3500K, 4000K

Color Rendering Index

90+, 80+, 95+

Mounting Method

Cove & Perimeter, Undercabinet, TBar/Grid Ceilings, Surface (Ceiling)

Width

1.25"-2"

Beam Distribution

Medium, Narrow, Wide

Driver

Fixture Mounted, Remote

Ann Beha Architects Office

Completed Project, MICRO SeriesDecember 11, 2023

Ann Beha Architects Office Project Name: Ann Beha Architects Office Location: Boston, MA Xico Products EDGESolo275 Pendant GRIDSlot4 Recessed Project Team Architect Firm: Lighting Designer:

Shive Hattery Office

Completed Project, MICRO Series, OfficeDecember 9, 2023

Great example of the use of shapes to create an engaging well lit office environment.

MICROFlat

High Performance, Sub 1.5" Form Factor

Description

Product Code: MFL140

1.4″ Low-Profile Linear LED Flat Rail

Features & Benefits

Sub 1.5″ aperture with choice of optics

Fusion Optix® Inside with SmartBeam® technology

Symmetric & asymmetric lighting distributions

Best-in-class efficiency for indirect and direct lighting

0-10V, DALI, DMX and Triac dimming. Dim-to-Warm

Choice of factory selected, Lutron or Eldoled drivers

Controls include; Lutron, Cooper, Casambi

Choice of finishes and customization options

Certifications

UL Listed

Declare listed and Red List Free

Designed & Built in Boston MA

BABAA Compliance (Read Statement)

5-Year Factory Warranty
